2024 Kawasaki Z e-1 ABS Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

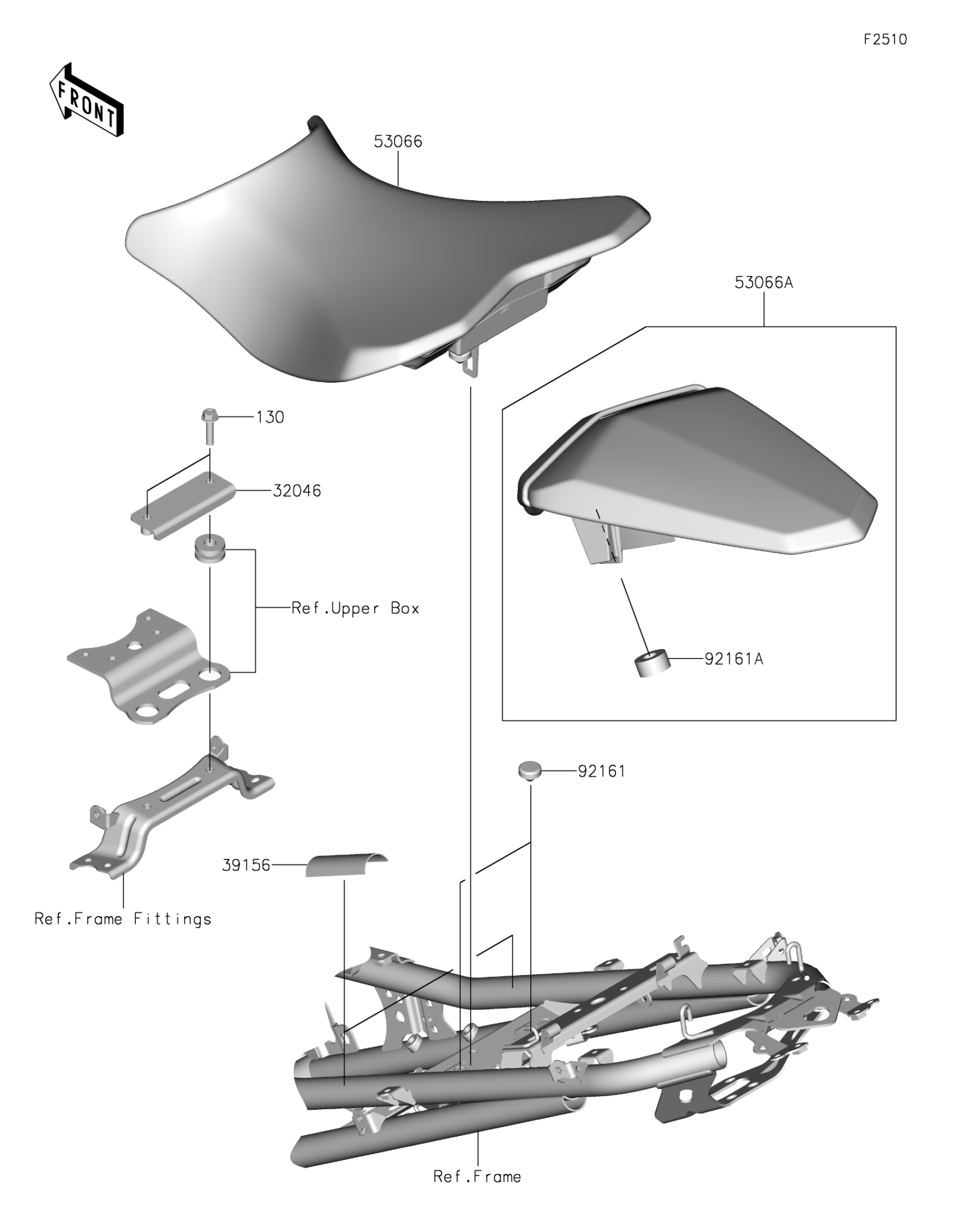

2024 Kawasaki Z e-1 ABS Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32046

BRACKET-SEAT

32046-0423

1

$11.76

In stock

39156

PAD,35X75X1

39156-2383

1

$3.51

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0801-MA

1

$265.24

In stock

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0895-12Y

1

$212.53

In stock

92161

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92161A

DAMPER,11X26X13

92161-2457

1

$2.44

In stock

130

BOLT-FLANGED,6X25

130CC0625

1

$1.27

In stock
