2024 Kawasaki Z e-1 ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

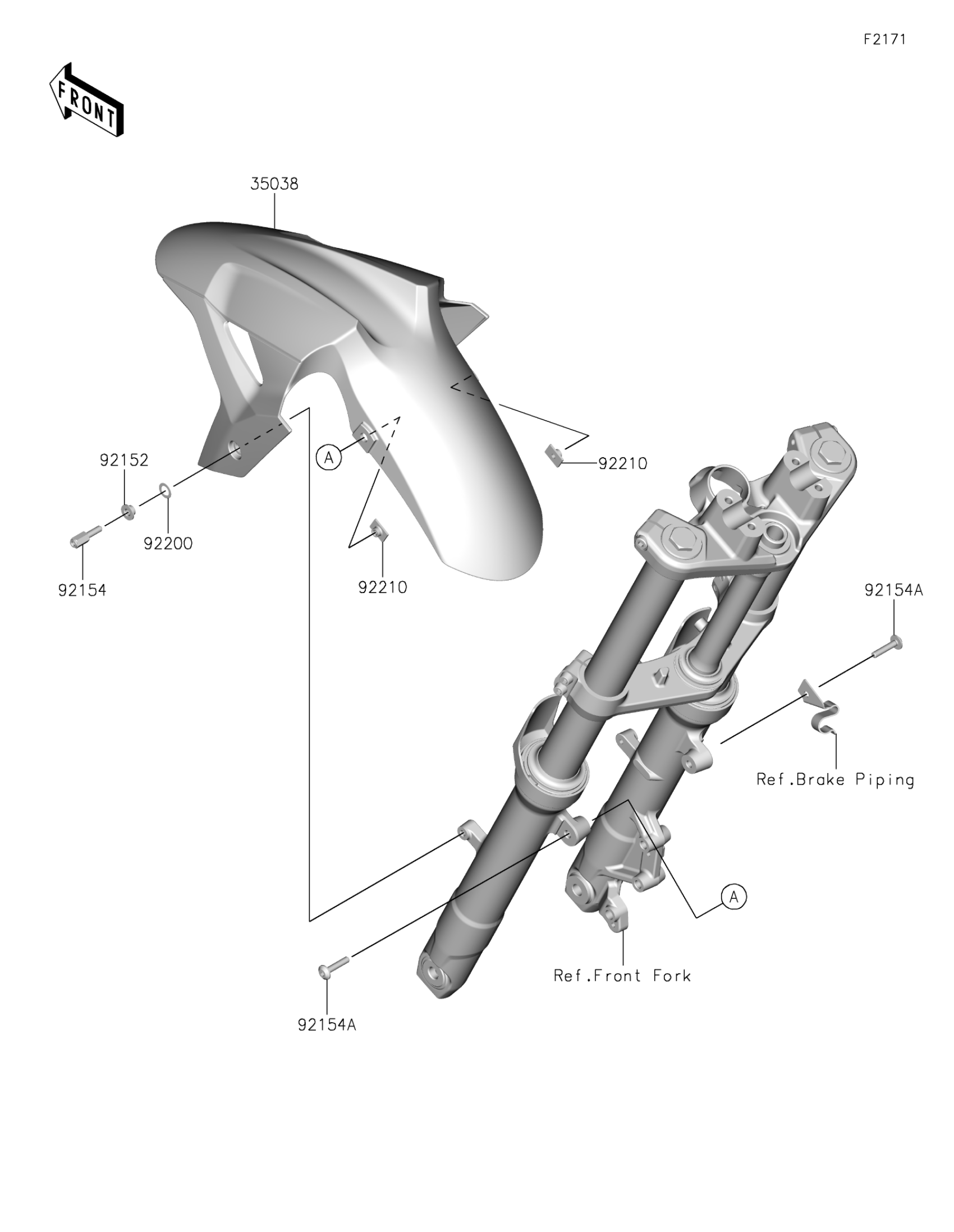

2024 Kawasaki Z e-1 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038

FENDER-FRONT,M.B.SILVER

35038-0007-63S

1

$205.10

In stock

92152

1

$6.25

In stock

92154

BOLT,6X20,WHITE

92154-0884

1

$7.86

In stock

92154A

BOLT,SOCKET,6X30

92154-4422

1

$1.39

In stock

92200

1

$0.80

In stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
← Frame Fittings Labels →
