2024 Kawasaki Z e-1 ABS Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

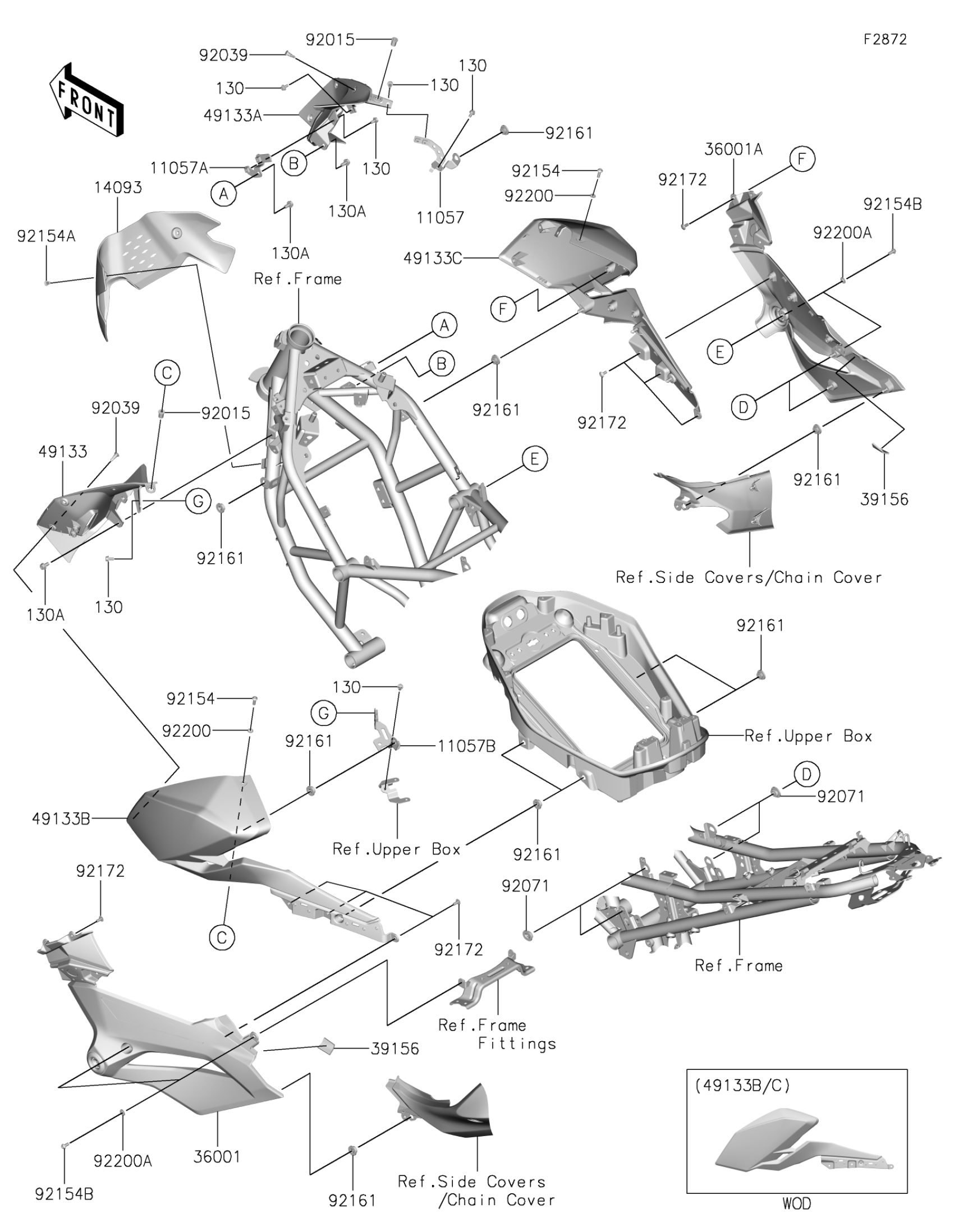

2024 Kawasaki Z e-1 ABS Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$5.14

In stock

11057A

1

$4.93

In stock

11057B

1

$5.34

In stock

14093

COVER,CNT,FR

14093-1472

1

$41.65

In stock

36001

COVER-SIDE,LH

36001-0670

1

$89.87

In stock

36001A

COVER-SIDE,RH

36001-0671

1

$89.87

In stock

39156

PAD

39156-2469

1

$0.95

In stock

49133

SHROUD,INNER,LH

49133-0029

1

$47.39

In stock

49133A

SHROUD,INNER,RH

49133-0030

1

$47.39

In stock

49133B

1

$149.70

In stock

49133C

1

$150.68

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0060

1

$2.71

In stock

92071

GROMMET,20X24X7.5

92071-0766

1

$1.27

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,SOCKET,5X10

92154-0211

1

$1.78

In stock

92154B

BOLT,SOCKET,5X12

92154-1421

1

$0.93

In stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.3X13X1.2

92200-2211

1

$0.69

In stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock
