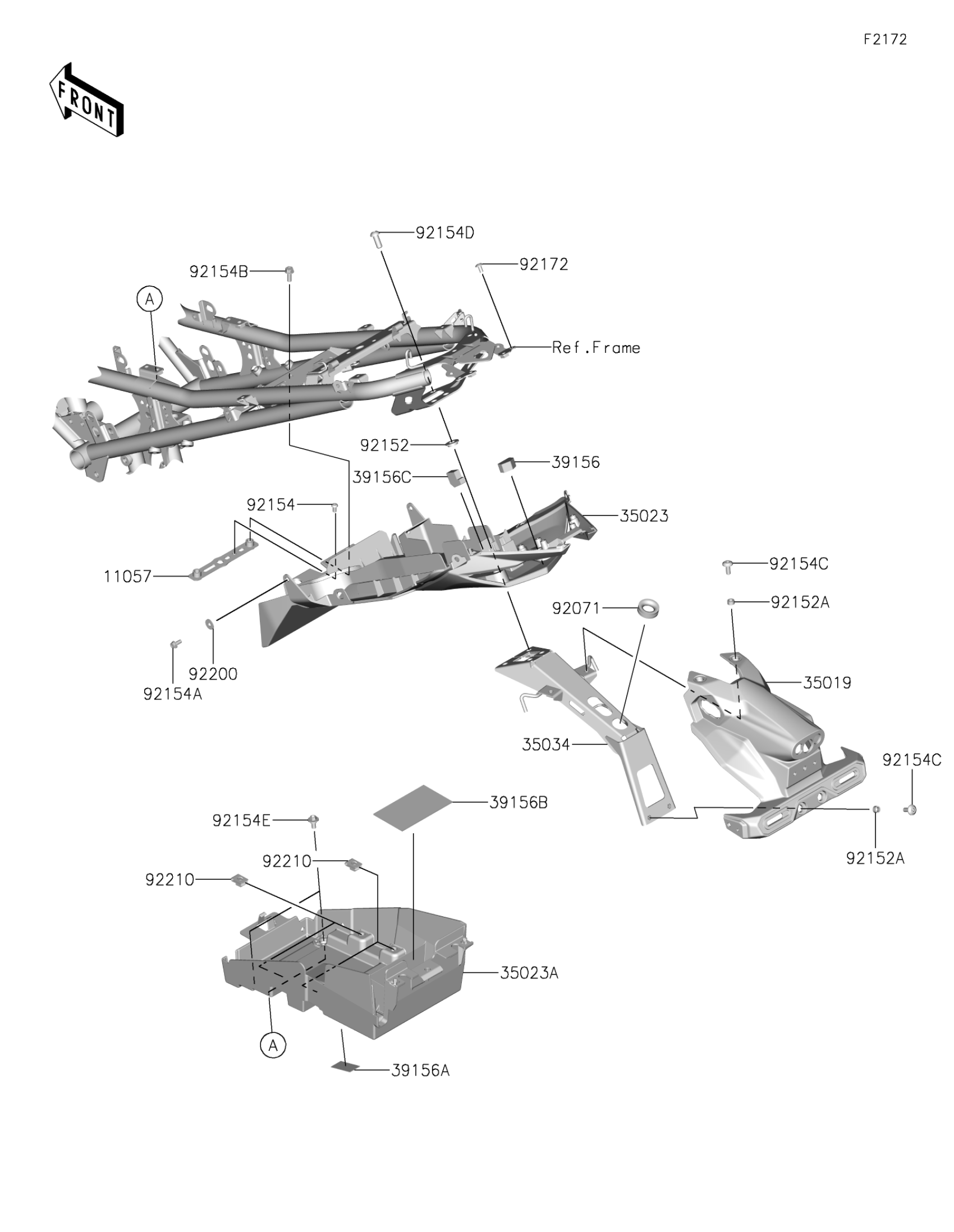

Find the part on the Rear Fender diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z e-1 ABS Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1191

1
Out of stock

35019

FLAP

35019-0639

1

$54.84

In stock

35023

FENDER-REAR

35023-0436

1

$50.14

In stock

35023A

FENDER-REAR

35023-0513

1

$48.50

In stock

35034

REINFORCE

35034-0617

1

$111.25

In stock

39156

PAD,16X24X13

39156-2379

1

$1.17

In stock

39156A

PAD,40X20X1

39156-2887

1

$11.29

In stock

39156B

PAD,101X58X2

39156-2890

1

$14.56

In stock

39156C

PAD

39156-2913

1

$1.39

In stock

92071

GROMMET

92071-0709

1

$1.10

In stock

92152

COLLAR,10X20X4.5

92152-2392

1

$2.59

In stock

92152A

COLLAR,6.8X10X5.4

92152-2393

1

$1.66

In stock

92154

BOLT,SOCKET,5X10

92154-1547

1

$1.32

In stock

92154A

BOLT,FLANGED,5X12

92154-2893

1

$0.69

In stock

92154B

BOLT,FLANGED,6X16

92154-2895

1

$1.10

In stock

92154C

BOLT,SOCKET,6X16

92154-4421

1

$1.14

In stock

92154D

BOLT,SOCKET,8X20

92154-7023

1

$2.19

In stock

92154E

BOLT

92154-7139

1

$2.27

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92200

WASHER,5.2X16X1.2

92200-0583

1
Out of stock

92210

NUT,6MM

92210-0474

1
Out of stock
