2024 Kawasaki Z e-1 ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

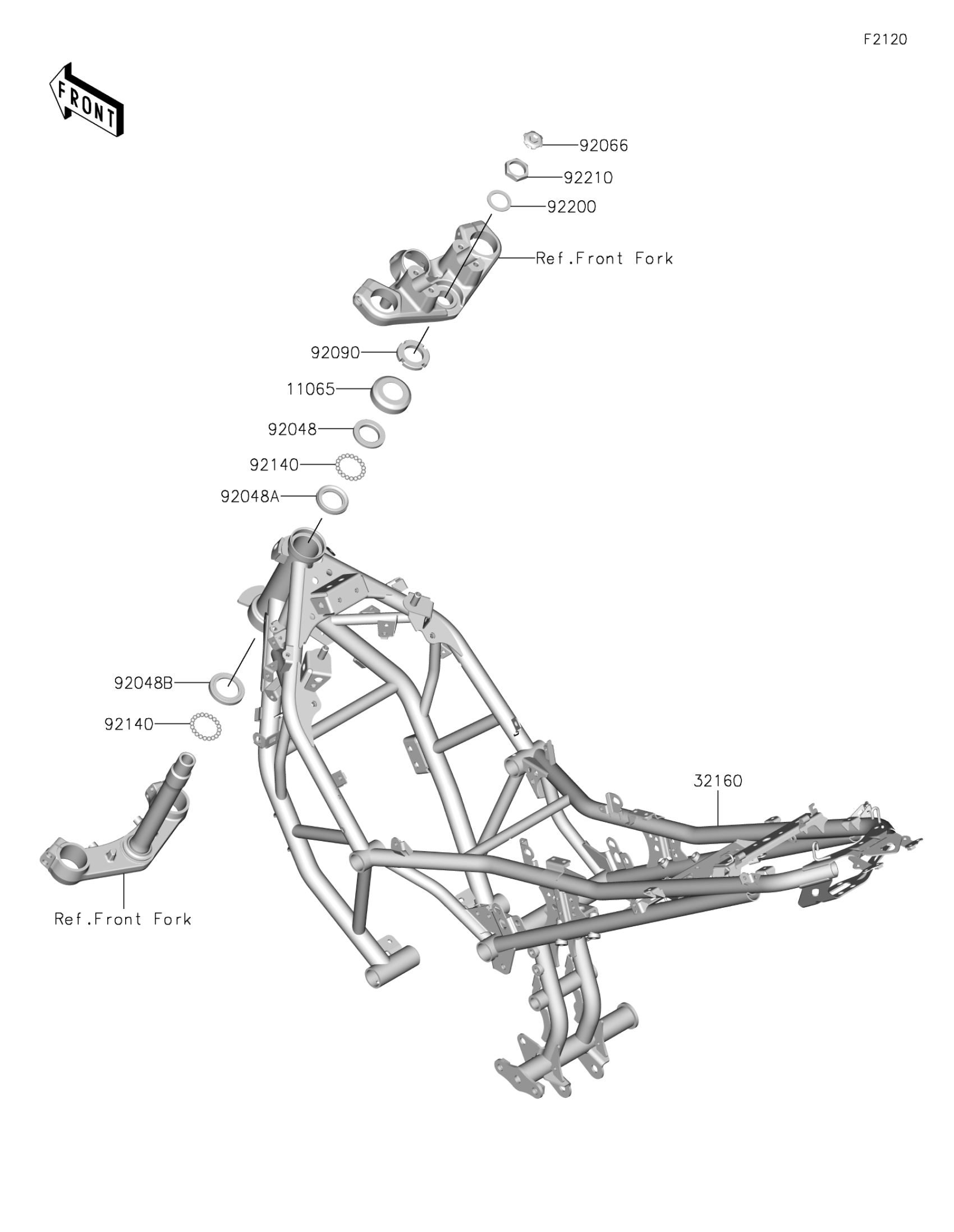

2024 Kawasaki Z e-1 ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-1290

1
Out of stock

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-2000-18R

1

$2,054.04

In stock

92048

1

$13.85

In stock

92048A

1

$9.20

In stock

92048B

1

$12.67

In stock

92066

PLUG

92066-0915

1

$2.17

In stock

92090

NUT,30MM

92090-007

1

$9.29

In stock

92140

BALL,6.35MM

92140-0008

1
Out of stock

92200

WASHER,25.5X36X1.6

92200-1858

1
Out of stock

92210

NUT,25MM

92210-1586

1

$10.14

In stock
