1990 Yamaha YZ490A (YZ490A) Swing ARM Diagram

← All diagrams

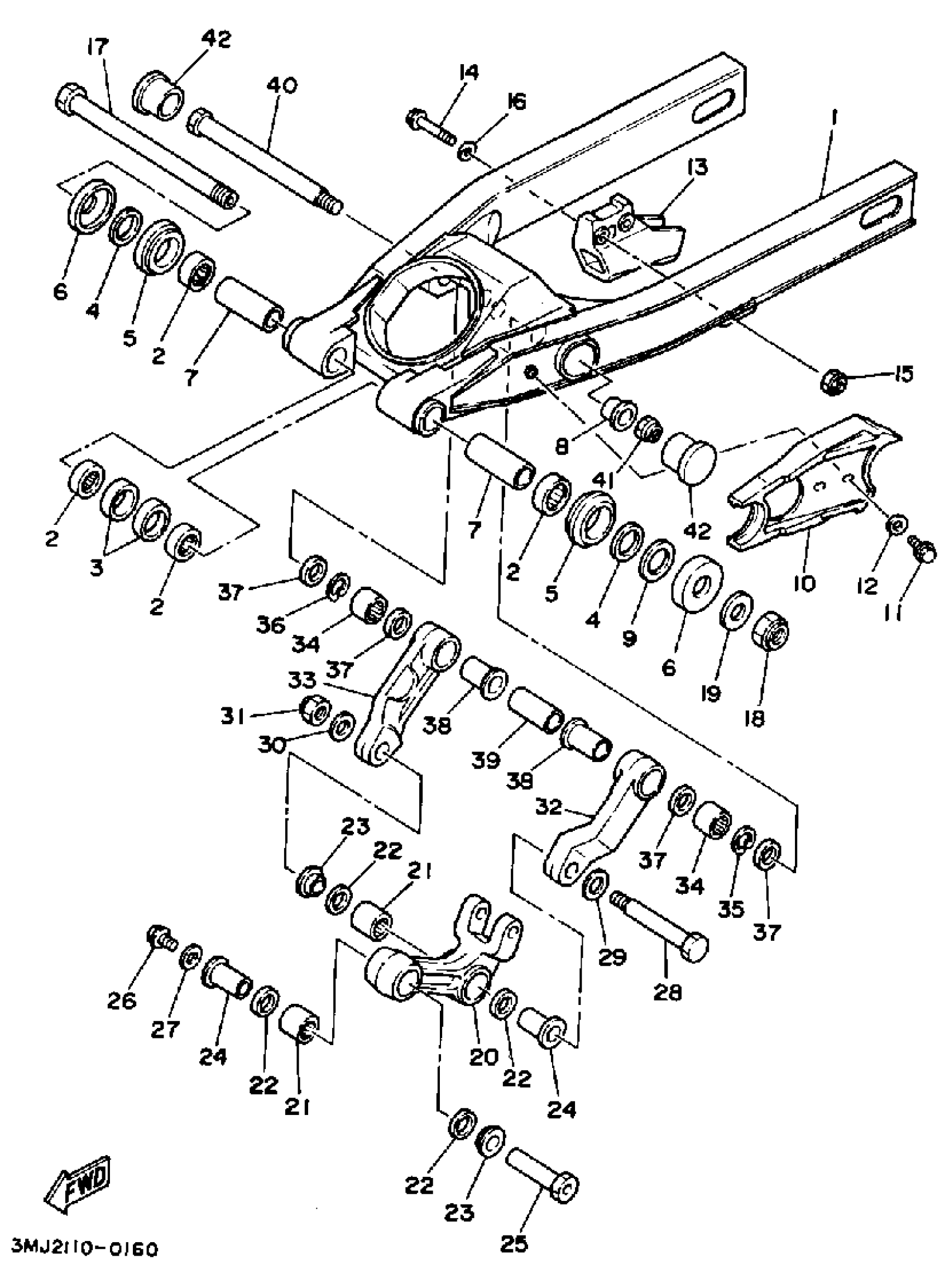

Find the part on the Swing ARM diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

(1LV-22110-02-00)

1
Out of stock

2

BEARING, CYLINDRICAL(2VM)

93317-22262-00

1

$34.05

In stock

2

BEARING, CYLINDRICAL

93317-22263-00

1
Out of stock

3

OIL SEAL (23X)

93106-22019-00

1
Out of stock

4

BEARING, THRUST (3R7)

93342-22208-00

1

$29.03

In stock

5

OIL SEAL (35X41.5X8-483)

93108-35004-00

1

$12.58

In stock

6

COVER, THRUST2

3R4-22129-00-00

1
Out of stock

7

BUSH, SOLID(1LV)

90380-16158-00

1

$27.42

In stock

8

BUSH, SOLID

90381-16060-00

1
Out of stock

9

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

10

SEAL, GUARD

1LX-22151-00-00

1

$26.77

In stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

13

SUPPORT, CHAIN

39W-22199-01-00

1

$34.74

In stock

14

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

15

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

SHAFT, PIVOT

1LX-22141-00-00

1
Out of stock

18

NUT, SELF-LOCKING

90185-16002-00

—
Out of stock

19

WASHER, PLATE(33Y)

90201-164H4-00

—

$8.02

In stock

20

ARM, RELAY

1LX-2217A-00-00

1
Out of stock

21

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

—

$78.46

In stock

22

OIL SEAL

93109-20076-00

—
Out of stock

23

COLLAR(1LV)

90387-164N2-00

—

$20.38

In stock

24

COLLAR

90387-164N3-00

1
Out of stock

25

NUT, UNION

90402-10005-00

1
Out of stock

26

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

27

WASHER, PLATE (17K)

90201-106F2-00

—

$7.66

In stock

28

BOLT

90101-14648-00

1
Out of stock

29

WASHER, PLATE(33Y)

90201-164H4-00

—

$8.02

In stock

30

WASHER PLATE (3L6)

90201-14740-00

—

$6.18

In stock

31

NUT, SELF-LOCKING (1J7)

90185-14070-00

—

$10.45

In stock

32

ROD, CONNECTING 1

(1LX-2217F-00-00)

1
Out of stock

33

ROD, CONNECTIING 2

(1LX-2217G-00-00)

1
Out of stock

34

BEARING, CYLINDRICAL(3MH)

93315-32057-00

—

$27.22

In stock

35

CIRCLIP, INNER

93450-28063-00

1
Out of stock

36

CIRCLIP, INNER

93450-28063-00

1
Out of stock

37

OIL SEAL

93109-20076-00

—
Out of stock

38

COLLAR

90387-164N3-00

1
Out of stock

39

COLLAR

90387-164N1-00

1
Out of stock

40

BOLT

90123-14104-00

1
Out of stock

41

NUT, SELF-LOCKING (8BF)

95607-14200-00

—
Out of stock

42

COVER

1HX-2135F-10-00

—
Out of stock
