1990 Yamaha YZ490A (YZ490A) Rear Shocks Diagram

← All diagrams

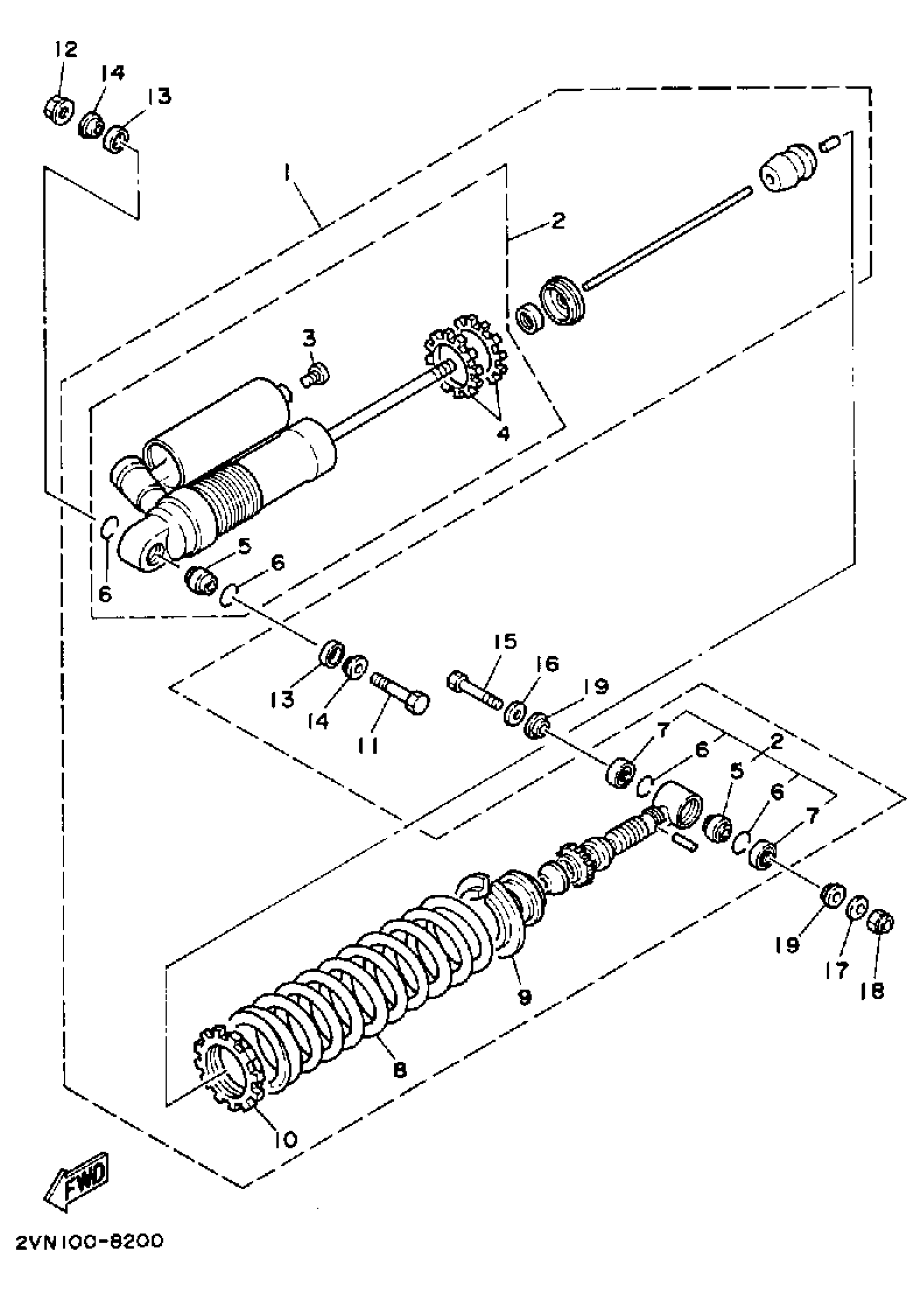

Find the part on the Rear Shocks diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

(2WH-22210-00-6W)

1
Out of stock

2

SHK/ABS ASY,REAR

2WH-22210-00-6W

1
Out of stock

3

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

4

.. RING, HOLD

1LX-22225-00-00

1
Out of stock

5

BEARING(4GG)

93399-999T3-00

1
Out of stock

6

CIRCLIP (23X)

93440-30113-00

1
Out of stock

7

OIL SEAL (23X)

93104-18077-00

1
Out of stock

8

. SPRING (550) (BLACK-BLUE)

1LV-22212-00-6W

1
Out of stock

8

. SPRING (575)

1LV-22212-20-6W

1
Out of stock

8

. UNAVAILABLE IN PRICE BOOK

2WH-22212-00-6W

1
Out of stock

9

. GUIDE, SPRING 1

2VN-22214-00-00

1
Out of stock

10

. SEAT, SPRING LOWER

1LX-22223-00-00

1
Out of stock

11

BOLT

90109-10704-00

1
Out of stock

12

NUT, SELF-LOCKING (8U7)

90185-10115-00

—

$6.82

In stock

13

COVER

23X-22211-00-00

1
Out of stock

14

COLLAR (23X)

90387-127G8-00

—

$9.89

In stock

15

BOLT

90109-10700-00

1
Out of stock

16

WASHER, PLATE

90201-12027-00

—

$6.23

In stock

17

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

18

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

19

COLLAR (23X)

90387-126H8-00

—
Out of stock
