FRONT FORK

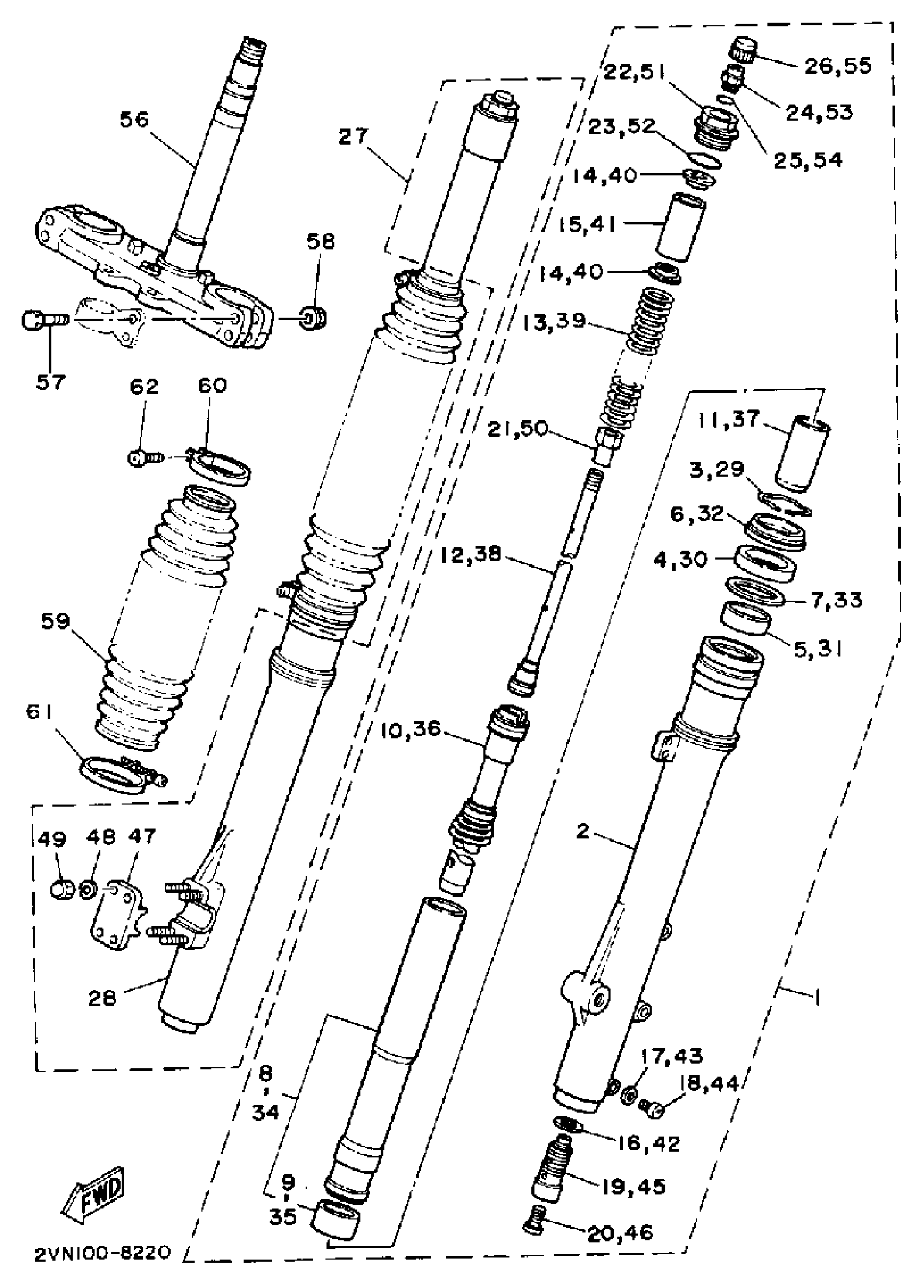

1990 Yamaha YZ490A (YZ490A) Front Fork Diagram
Find the part on the Front Fork diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY L (L.H)
2WH-23102-L0-00
2
. TUBE, OUTER 1
2VM-23126-L0-00
4
OIL SEAL
3XJ-23145-L0-00
5
METAL, SLIDE 1
5EB-23125-00-00
6
SEAL, DUST
2VM-23144-L0-00
8
. INNER TUBE COMP1
2VM-23110-L0-00
9
. PISTON, FRONT FORK
4V4-23171-L0-00
10
. CYLINDERCOMP, FRTFORK
2VM-23170-L0-00
11
. SPINDLE, TAPER
2VM-23173-L0-00
12
. PISTON ROD ASSEMBLY
2VN-2314A-L0-00
13
. SPRING, FFRK (375)
2VM-23141-L0-00
13
. SPRING, FFRK (400 (HARD))
2VM-23141-M0-00
13
. SPRING, FFRK (350 (SOFT))
2VN-23141-L0-00
14
SEAT, SPRING UPPER
4V4-23142-L0-00
15
. SPACER
2VM-23118-L0-00
15
. SPACER
2VN-23118-L0-00
19
. VALVE, COMP
2VM-2316A-L0-00
20
PLUG
55Y-2312G-M0-00
21
. NUT
90170-10372-00
22
BOLT, CAP
2VM-23111-L0-00
24
AIR VALVE COMP.
23X-23190-L0-00
25
O-RING
3J2-23147-00-00
26
COVER, VALVE
2VN-23185-L0-00
27
FRONT FORK ASSEMBLY R (R.H)
2WH-23103-L0-00
28
. TUBE, OUTER 2
2VM-23136-L0-00
30
OIL SEAL
3XJ-23145-L0-00
31
METAL, SLIDE 1
5EB-23125-00-00
32
SEAL, DUST
2VM-23144-L0-00
34
. INNER TUBE COMP1
2VM-23110-L0-00
35
. PISTON, FRONT FORK
4V4-23171-L0-00
36
. CYLINDERCOMP, FRTFORK
2VM-23170-L0-00
37
. SPINDLE, TAPER
2VM-23173-L0-00
38
. PISTON ROD ASSEMBLY
2VN-2314A-L0-00
39
. SPRING, FFRK (375)
2VM-23141-L0-00
39
. SPRING, FFRK (400 (HARD))
2VM-23141-M0-00
39
. SPRING, FFRK (350 (SOFT))
2VN-23141-L0-00
40
SEAT, SPRING UPPER
4V4-23142-L0-00
41
. SPACER
2VM-23118-L0-00
41
. SPACER
2VN-23118-L0-00
45
. VALVE, COMP
2VM-2316A-L0-00
46
PLUG
55Y-2312G-M0-00
47
HOLDER, AXLE
1LX-23167-L0-00
50
. NUT
90170-10372-00
51
BOLT, CAP
2VM-23111-L0-00
53
AIR VALVE COMP.
23X-23190-L0-00
54
O-RING
3J2-23147-00-00
55
COVER, VALVE
2VN-23185-L0-00
56
UNDER BRACKET
1LX-23340-L0-00
57
BOLT, WASHER BASED
90105-08463-00
58
NUT, FLANGE
95704-08500-00
59
BOOT, FRONT FORK
43M-23191-L0-00
60
BAND
43M-23192-L0-00
62
SCREW, PAN HEAD
98507-04018-00
