1990 Yamaha YZ490A (YZ490A) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

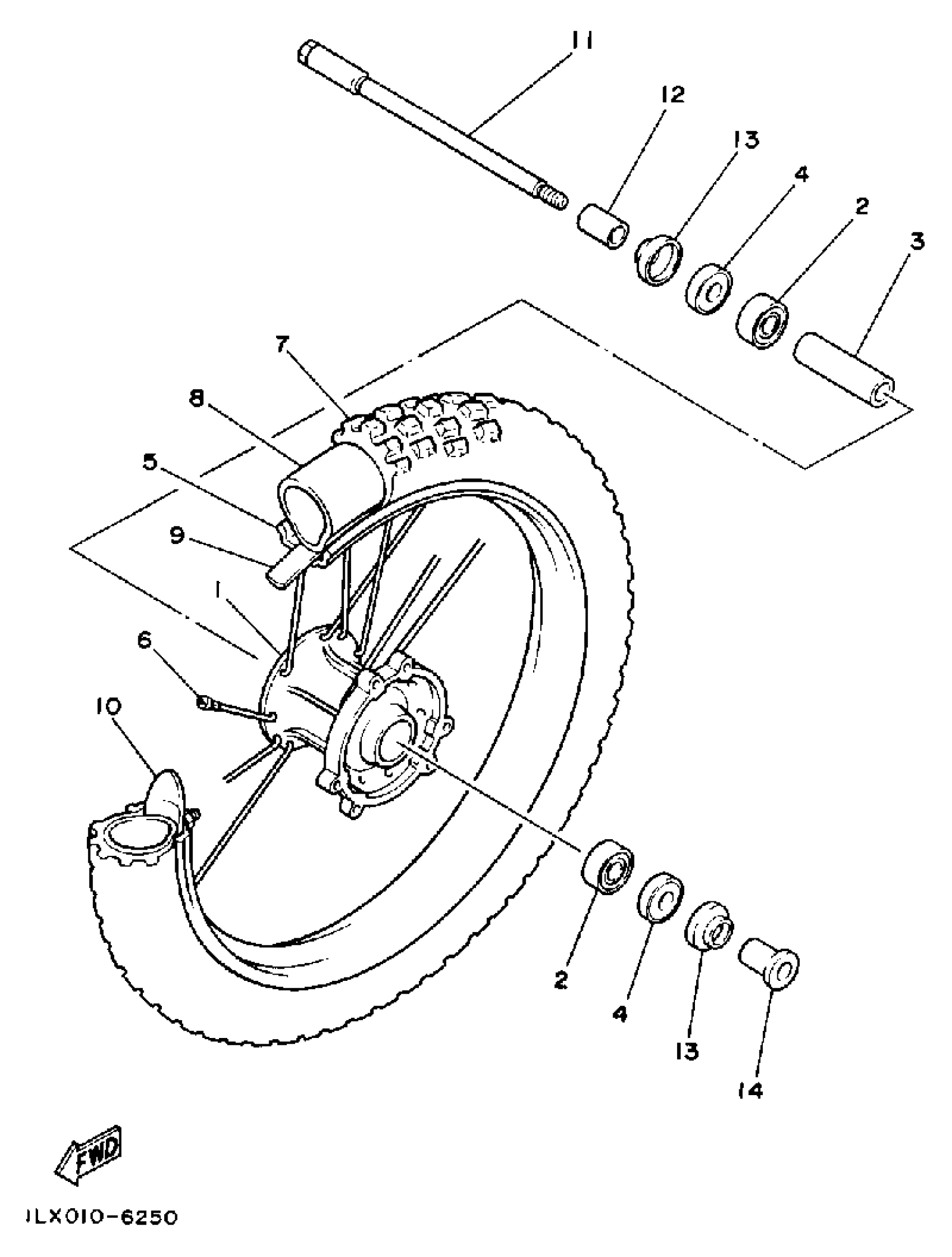

1990 Yamaha YZ490A (YZ490A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

2HH-25111-00-98

1
Out of stock

2

BEARING

93306-20205-00

1

$32.63

In stock

3

SPACER (34L)

90560-15240-00

—

$16.40

In stock

4

OIL SEAL (23X)

93102-20281-00

1

$11.35

In stock

5

RIM (1.60-21)

94416-21453-00

1
Out of stock

6

SPOKE SET, FRONT

1LX-25104-00-00

1
Out of stock

7

TIRE (80/100-21-4PR)

94108-215H9-00

1
Out of stock

8

TUBE 90190-21

94209-21229-00

—

$34.40

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

SPACER, BEAD

5X2-25394-00-00

1

$42.62

In stock

11

AXLE, WHEEL

4GY-25181-00-00

—

$129.37

In stock

12

COLLAR

90387-157L9-00

1
Out of stock

13

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

14

COLLAR

90387-156R7-00

1
Out of stock
