1990 Yamaha YZ490A (YZ490A) Steering Diagram

← All diagrams

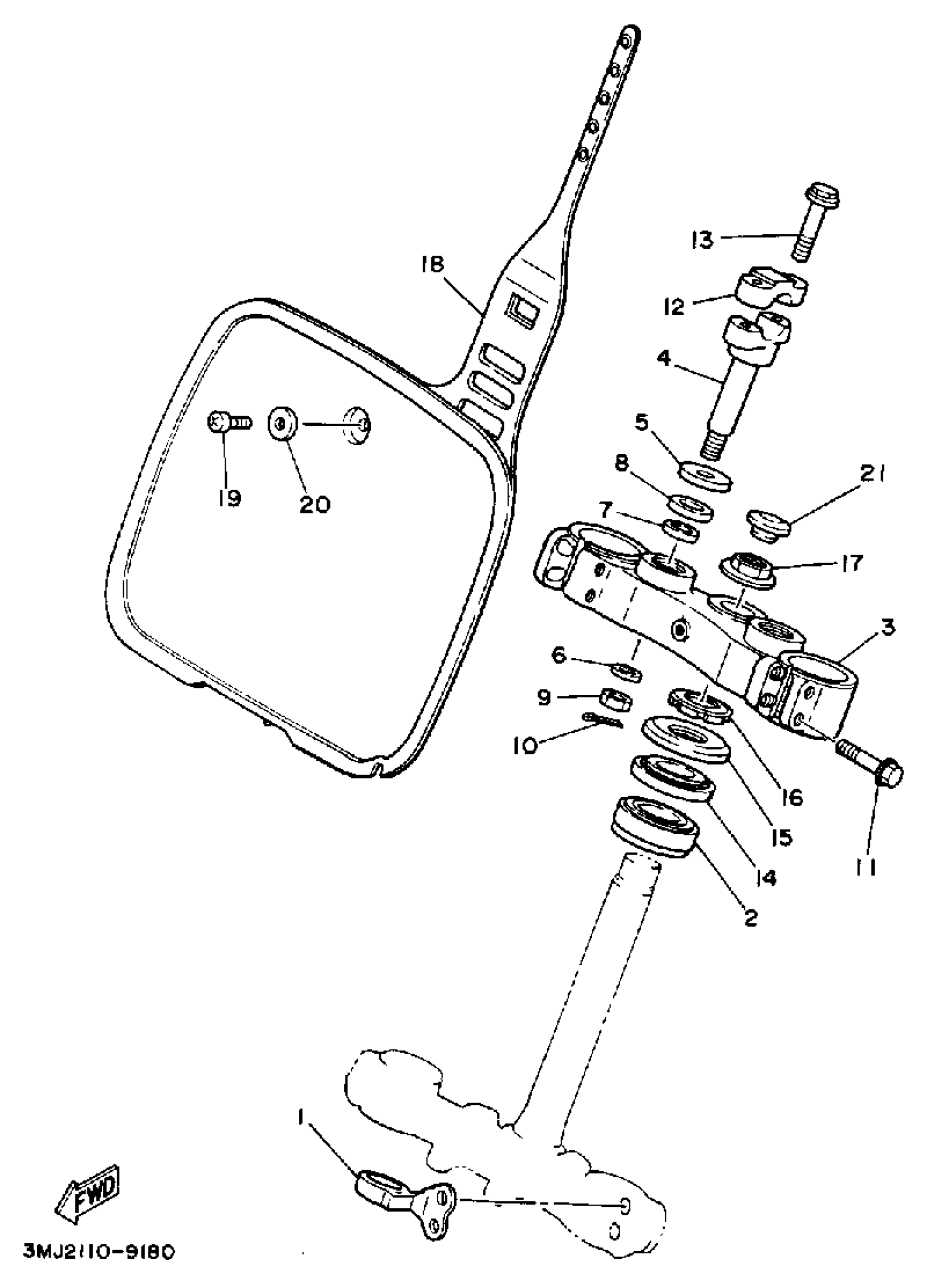

Find the part on the Steering diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

1

$60.13

In stock

3

CROWN, HANDLE

40T-W2341-00-98

1
Out of stock

4

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

5

WASHER, PLATE

90201-123E8-00

1
Out of stock

6

WASHER, PLATE (3J6)

90201-100A1-00

1

$6.71

In stock

7

COLLAR (4V4)

90387-121E8-00

1

$12.06

In stock

8

WASHER, PLATE (462)

90202-14077-00

1

$3.57

In stock

9

NUT, U

90185-10037-00

1

$6.68

In stock

10

PIN, COTTER

91490-20025-00

1

$1.31

In stock

11

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

12

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

13

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

14

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

15

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

16

NUT

90179-25004-00

—

$20.78

In stock

17

NUT

90179-22330-00

1
Out of stock

18

PLATE, NUMBER

3XJ-23485-01-00

—
Out of stock

19

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

20

—

$6.42

In stock

21

CAP

34K-2319U-00-00

1
Out of stock
