1982 Yamaha YT175J Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

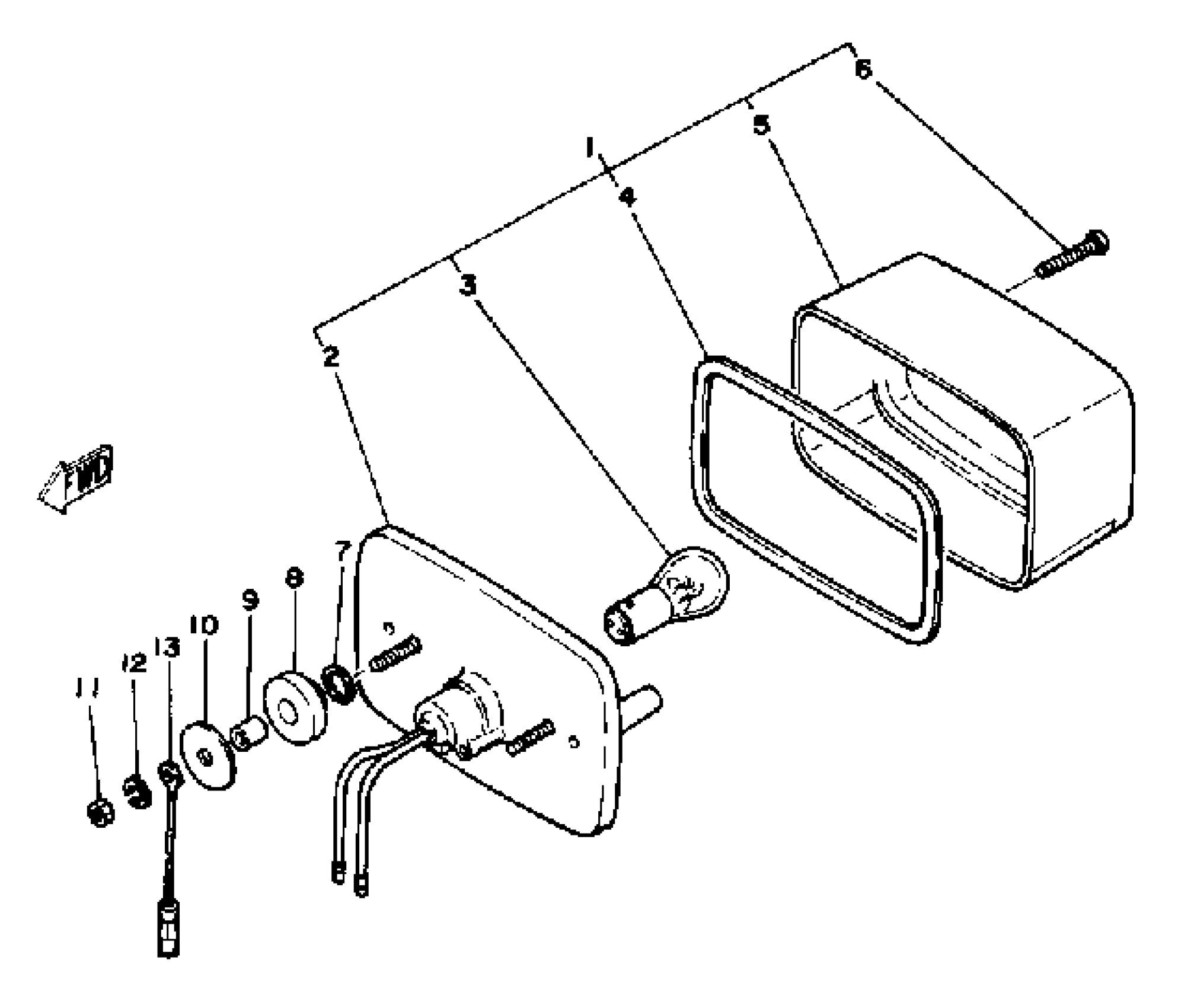

1982 Yamaha YT175J Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. TAILLIGHT UNIT ASSEMBLY

5V7-84510-60-00

1
Out of stock

2

. TAILLIGHT UNIT ASSEMBLY

5V7-84510-60-00

1
Out of stock

3

. BULB

1M1-84514-60-00

1
Out of stock

4

GASKET, TAIL LENS

1K8-84523-00-00

—

$12.14

In stock

5

LENS, TAIL LAMP

1K8-84521-00-00

1

$19.69

In stock

6

1

$5.51

In stock

7

WASHER, PLATE (462)

90202-14077-00

1

$3.57

In stock

8

GROMMET (462)

90480-14088-00

1

$4.14

In stock

9

SPACER

90560-07007-00

1
Out of stock

10

WASHER PLATE 248217570000

90201-06074-00

1

$6.29

In stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock
