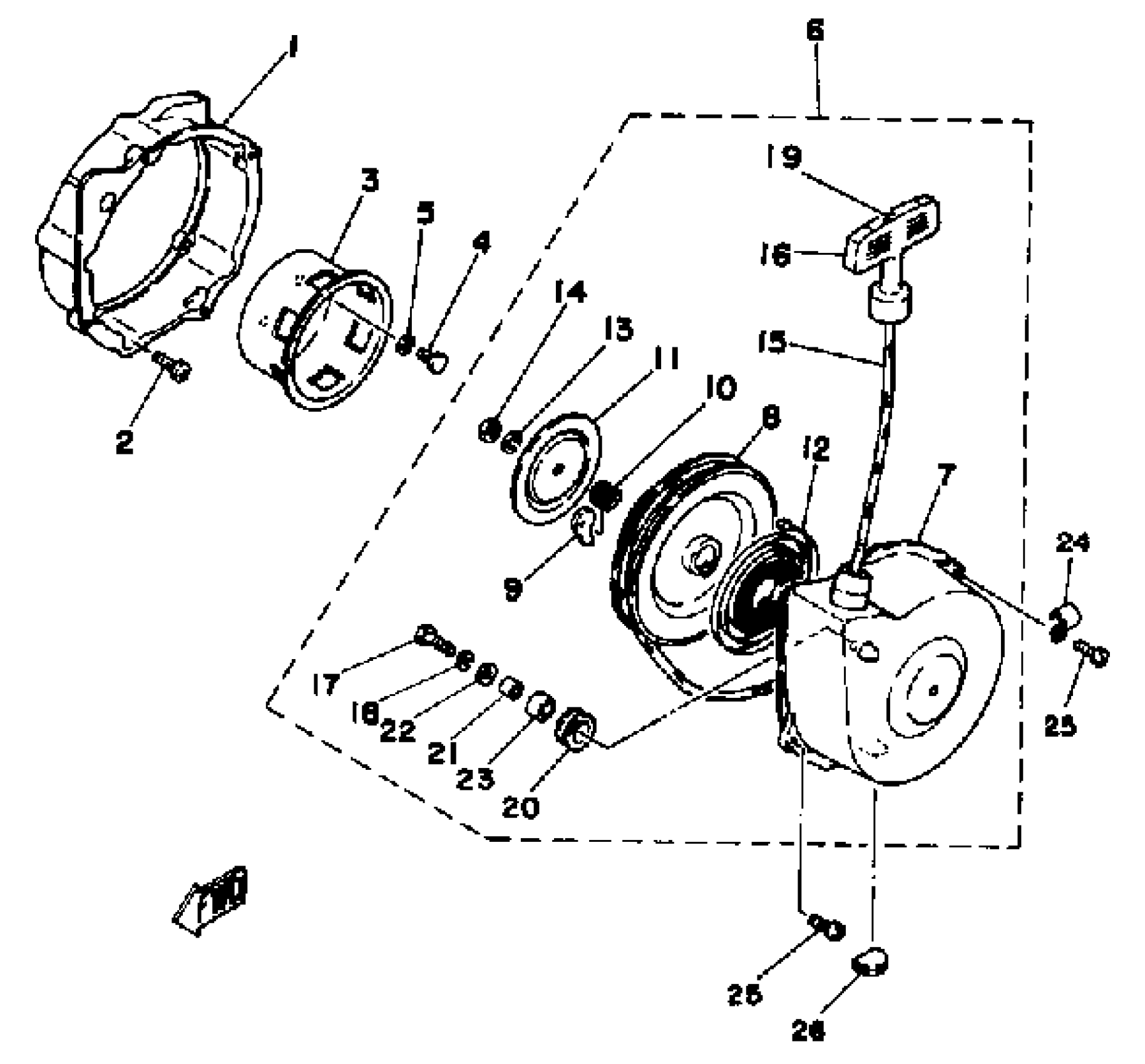

Find the part on the Starter diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YT175J Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ADAPTOR

3X3-15787-00-00

1
Out of stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

PULLEY, STARTER (3X3-15723-00)

3X3-15723-01-00

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

STARTER ASSEMBLY

20E-15710-00-00

1
Out of stock

7

. CASE, STARTER

20E-15711-00-00

1
Out of stock

8

. DRUM, SHEAVE

3X3-15714-01-00

1
Out of stock

9

. PAWL, DRIVE

3X3-15741-00-00

1
Out of stock

10

. SPRING, DRIVE PLATE

3X3-15715-00-00

1
Out of stock

11

. PLATE, DRIVE

3X3-15716-00-00

1
Out of stock

12

. SPRING, STARTER

3X3-15713-00-00

1
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

. NUT

95380-08700-00

1

$3.07

In stock

15

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

16

HANDLE, STARTER

3X3-15755-00-00

—

$24.74

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

. WASHER, LOCK

6F5-15791-00-00

1

$3.62

In stock

20

. ROLLER, WIRE

663-15752-00-00

1

$19.98

In stock

21

. BUSH

6F5-15753-00-00

1

$7.69

In stock

22

CAP, KNOB

21V-15779-00-00

—

$6.46

In stock

23

. BUSH 2

5V6-15754-00-00

1
Out of stock

24

CLAMP

90465-08028-00

1

$4.62

In stock

25

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

26

GROMMET

90480-15312-00

1
Out of stock
