1982 Yamaha YT175J Headlight Diagram

← All diagrams

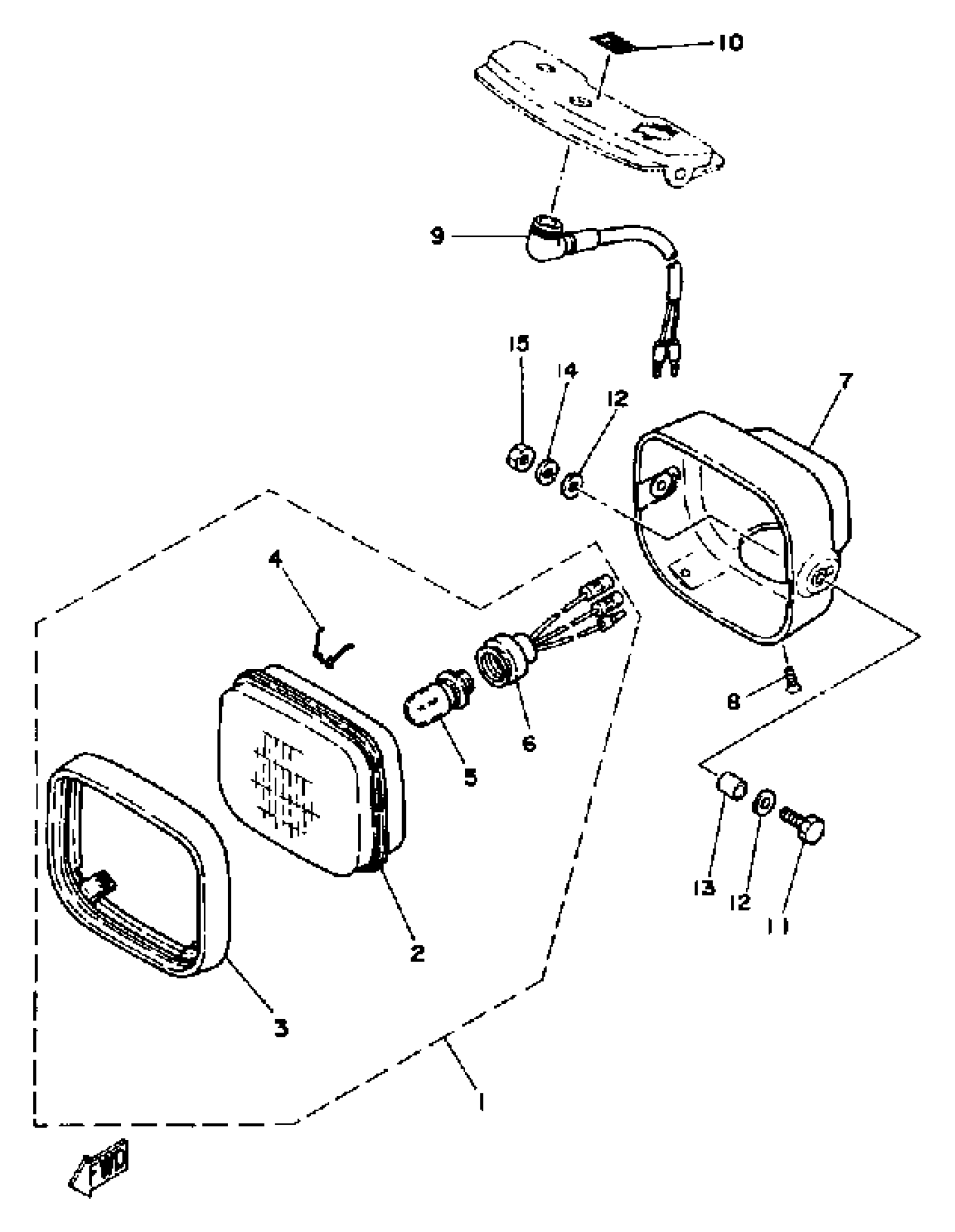

Find the part on the Headlight diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YT175J Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

(3X3-84110-00-00)

1
Out of stock

2

. LENS ASSEMBLY

3L6-84120-00-00

1
Out of stock

3

. RIM, HEADLIGHT

3L6-84115-00-00

1
Out of stock

4

. SPRING, SET

3L6-84124-00-00

1
Out of stock

5

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

6

. SOCKET

4G2-84312-00-00

1
Out of stock

7

BODY ASSEMBLY, HEADLIGHT (4U3-84130-00-26)

4U3-84130-00-00

1
Out of stock

8

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

9

OIL PILOT LT ASSEMBLY

4U3-85770-00-00

1
Out of stock

10

LABEL

4U3-83585-00-00

1
Out of stock

11

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

12

WASHER, PLATE

90201-080F8-00

1
Out of stock

13

COLLAR (5V7)

90387-08057-00

1

$7.03

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

NUT(6L2)

95333-08600-00

1

$3.20

In stock
