1982 Yamaha YT175J Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

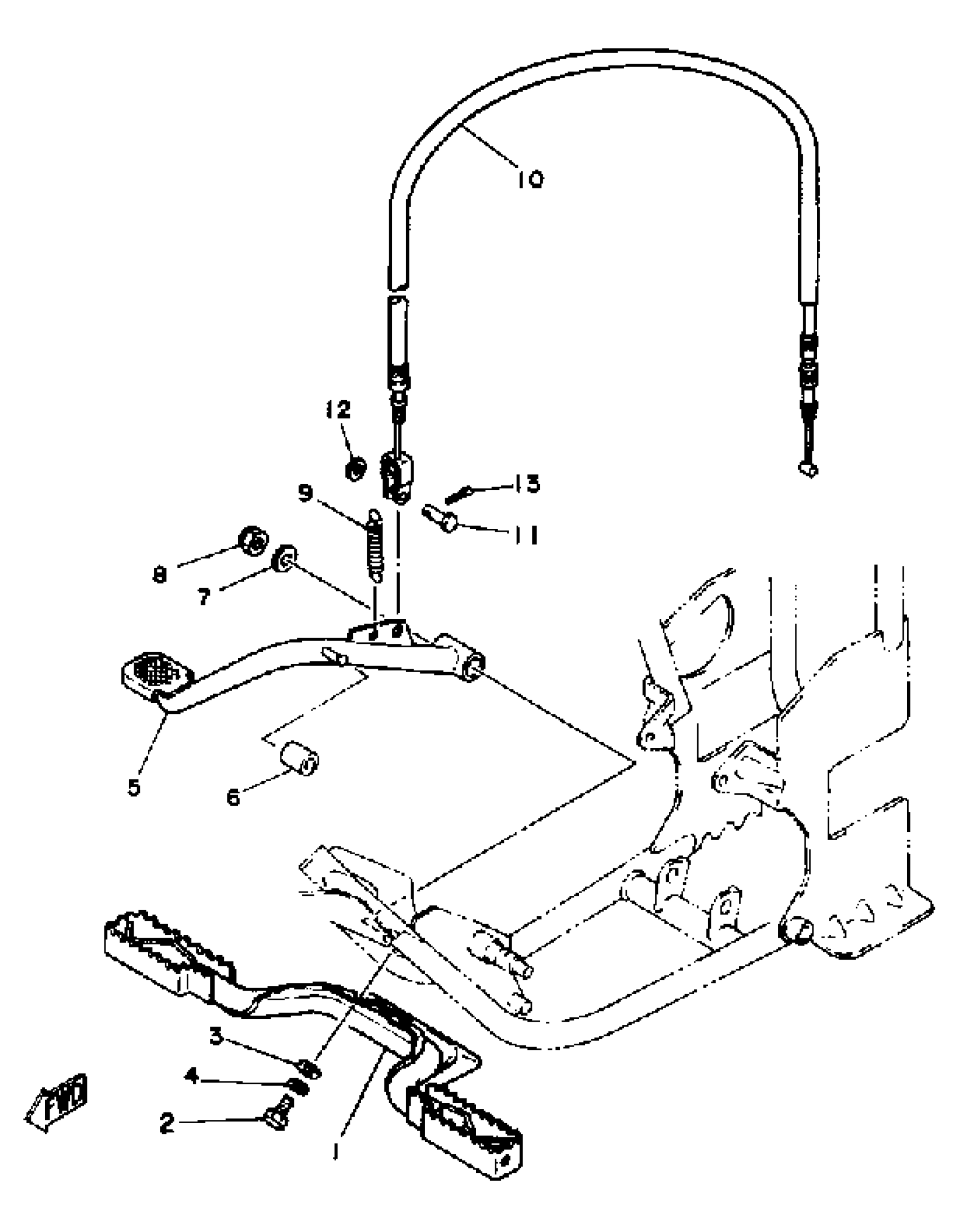

1982 Yamaha YT175J Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST 1

5V6-27411-00-00

1
Out of stock

2

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

PEDAL, BRAKE

3X3-27211-00-00

1
Out of stock

6

STOPPER

3X3-27214-00-00

1
Out of stock

7

WASHER, PLAIN(3BM)

92907-10200-00

1
Out of stock

8

NUT, U

95616-10100-00

1
Out of stock

9

SPRING, TENSION (3X3)

90506-16215-00

1

$3.25

In stock

10

CABLE, BRAKE

(5V6-26350-00-00)

1
Out of stock

11

PIN, CLEVIS (3X3)

90240-06076-00

1

$6.17

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-20025-00

1

$1.31

In stock
