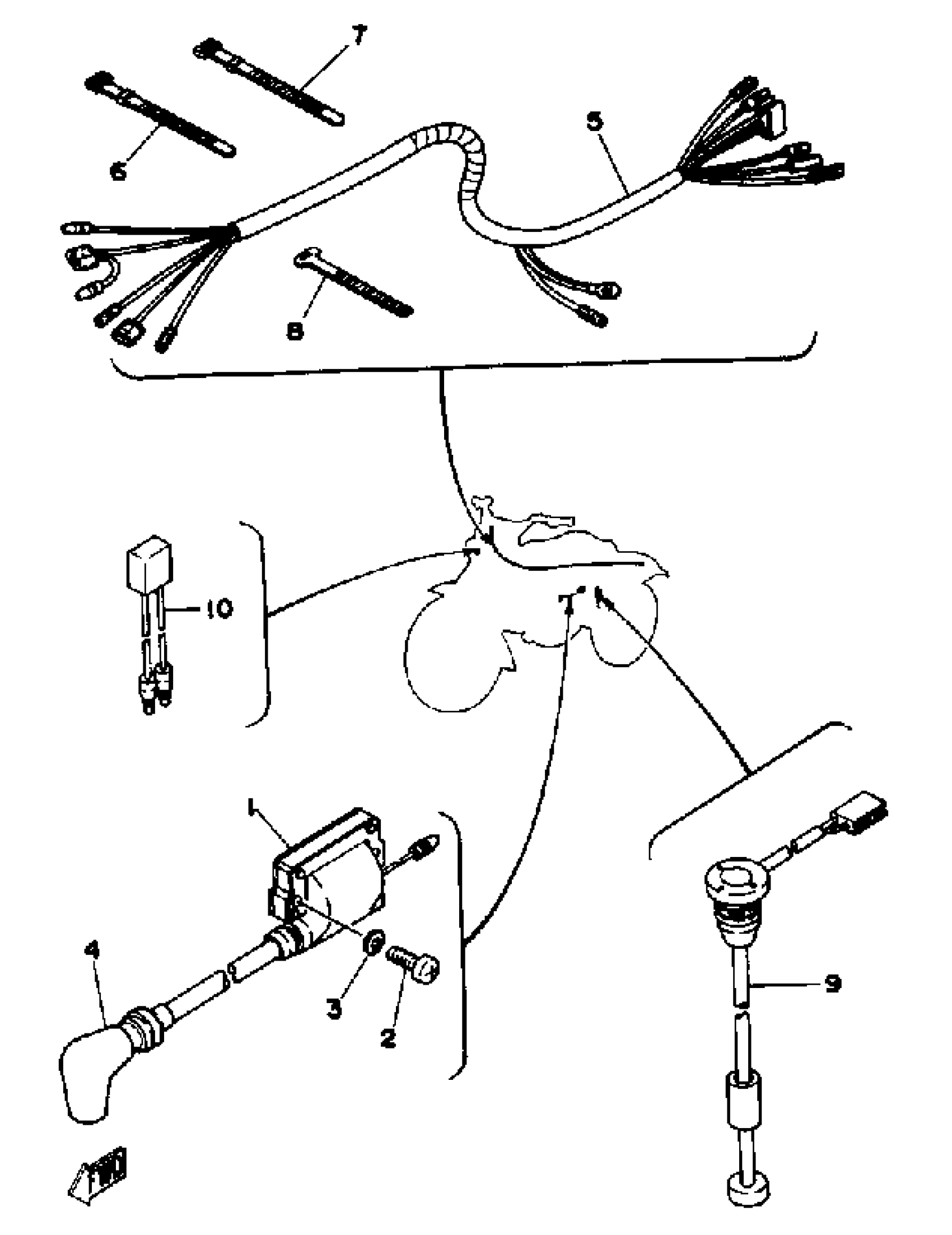

Find the part on the Electrical 1 diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YT175J Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

4

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

5

WIRE HARNESS ASSEMBLY

5V6-82590-00-00

1
Out of stock

6

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

8

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

9

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

—

$60.48

In stock

10

CHECKER, PILOT LAMP

3X3-85774-00-00

1
Out of stock
