2016 Yamaha Bolt (XVS95CGL) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

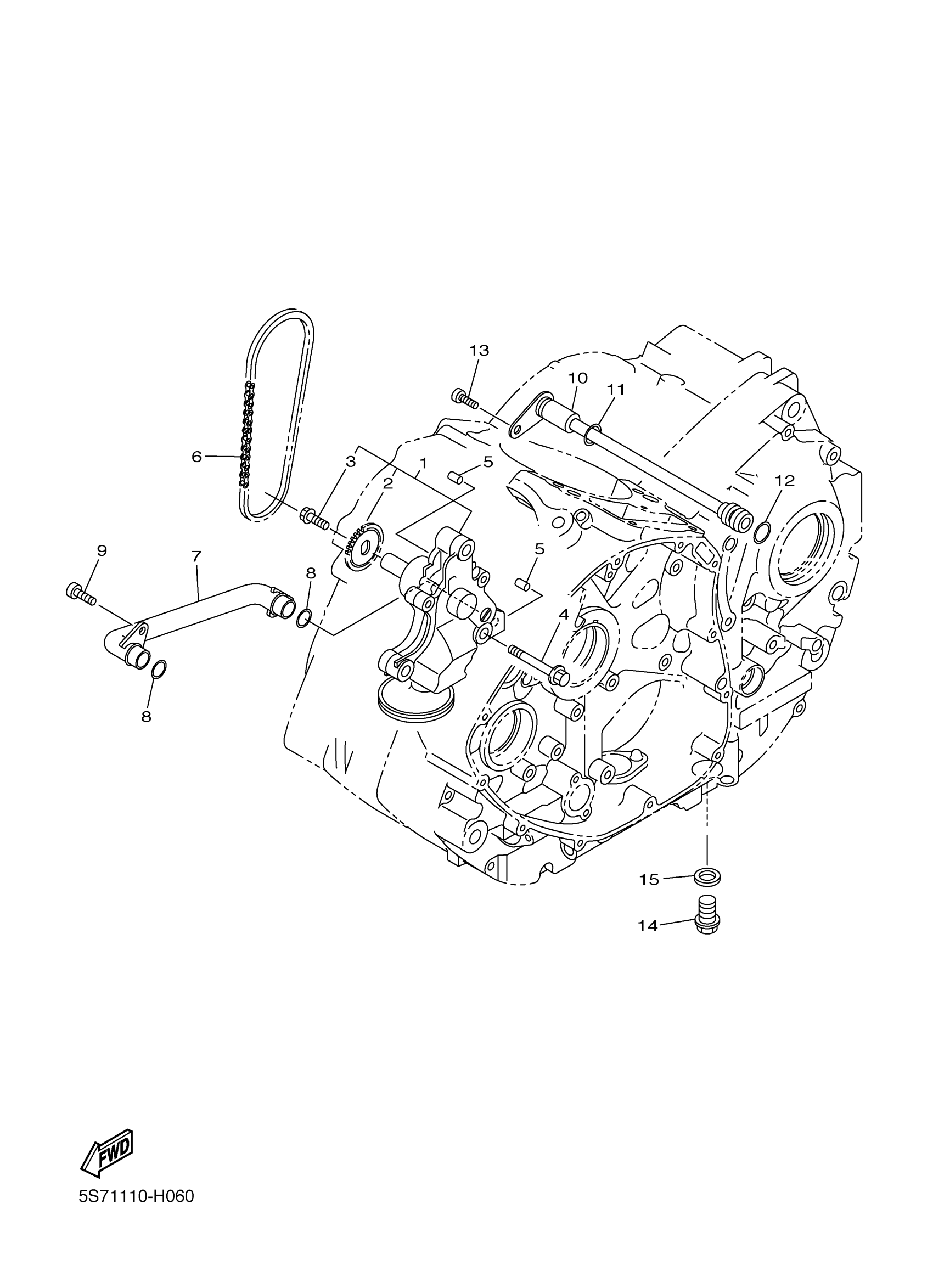

2016 Yamaha Bolt (XVS95CGL) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

5S7-13300-00-00

—

$221.85

In stock

2

SPROCKET, DRIVEN

3D8-13355-00-00

—

$18.72

In stock

3

BOLT, FLANGE

90105-06066-00

1

$6.31

In stock

4

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

5

PIN, DOWEL

99530-08012-00

1

$6.62

In stock

6

CHAIN, OIL PUMP (5G2)

94580-25062-00

1

$11.94

In stock

7

PIPE, OIL 1

3D8-13416-00-00

—

$42.08

In stock

8

O-RING

93210-14003-00

1

$6.45

In stock

9

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

10

PIPE, DELIVERY 2

5S7-13171-00-00

—
Out of stock

11

O-RING (1J7)

93210-09350-00

1

$5.82

In stock

12

O-RING (11M)

93210-07540-00

1

$5.77

In stock

13

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

1

$2.65

In stock

15

GASKET

214-11198-01-00

1

$2.66

In stock
