2016 Yamaha Bolt (XVS95CGL) Crankcase Cover 1 Diagram

← All diagrams

Find the part on the Crankcase Cover 1 diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

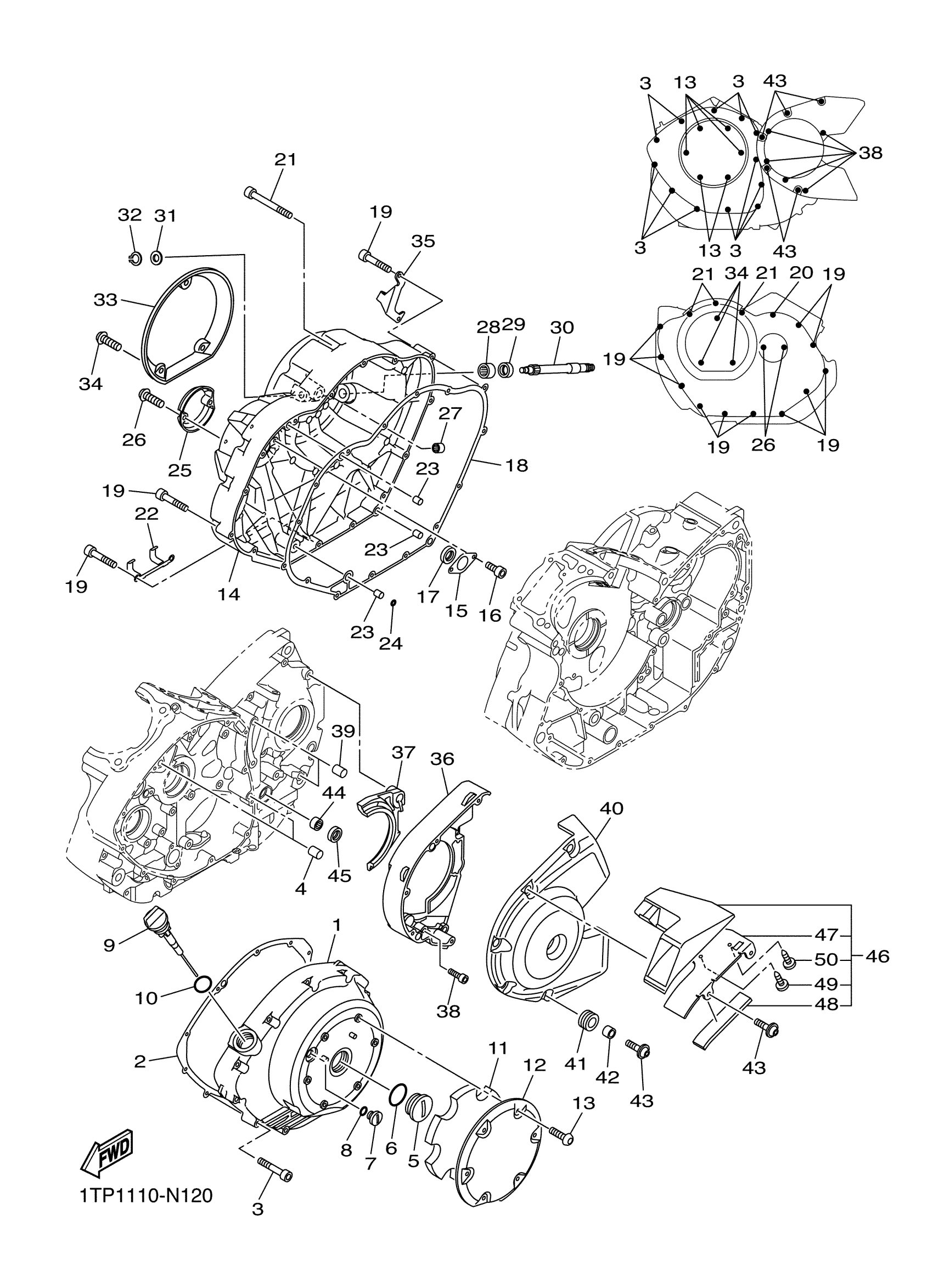

2016 Yamaha Bolt (XVS95CGL) Crankcase Cover 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE 1

5S7-15411-00-00

—
Out of stock

2

GASKET, CRANKCASE COVER 1

3D8-15451-00-00

1
Out of stock

3

BOLT, SOCKET

91314-06040-00

1
Out of stock

4

PIN, DOWEL

99530-08012-00

1
Out of stock

5

PLUG, STRAIGHT SCREW (5Y1)

90340-36078-00

1
Out of stock

6

O-RING

93210-35804-00

1
Out of stock

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

1
Out of stock

8

O-RING (2H9)

93210-14369-00

1
Out of stock

9

PLUG, OIL LEVEL

5S7-15362-10-00

1
Out of stock

10

O-RING(1KT)

93210-27778-00

1
Out of stock

11

DAMPER 1

5S7-1542A-00-00

1
Out of stock

12

COVER

1TP-15492-00-00

—
Out of stock

13

BOLT, BUTTON HEAD(4NK)

92014-06014-00

1
Out of stock

14

COVER, CRANKCASE 2

5S7-15421-01-00

—
Out of stock

15

PLATE, BEARING COVER

3D8-15388-00-00

—
Out of stock

16

BOLT,SOCKET

91317-06012-00

—
Out of stock

17

OIL SEAL (4X7)

93101-14102-00

—
Out of stock

18

GASKET, CRANKCASE COVER 2

3D8-15461-00-00

—
Out of stock

19

BOLT, SOCKET

91314-06040-00

1
Out of stock

20

BOLT, HEXAGON SOCKET HEAD

90110-06299-00

—
Out of stock

21

BOLT, SOCKET

91314-06065-00

—
Out of stock

22

PLATE

1TP-81845-00-00

—
Out of stock

23

PIN, DOWEL

99530-08012-00

1
Out of stock

24

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

—
Out of stock

25

COVER 2

1TP-15423-00-00

—
Out of stock

26

BOLT, BUTTON HEAD(4NK)

92014-06014-00

1
Out of stock

27

BEARING

93317-11096-00

—
Out of stock

28

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

—
Out of stock

29

OIL SEAL (3X3)

93102-15212-00

—
Out of stock

30

AXLE, PUSH LEVER

3D8-16382-00-00

—
Out of stock

31

.. WASHER, PLATE

92990-08600-00

1
Out of stock

32

CIRCLIP

99080-07600-00

1
Out of stock

33

COVER, GENERATOR

1TP-15415-01-00

—
Out of stock

34

BOLT, BUTTON HEAD(4NK)

92014-06014-00

1
Out of stock

35

HOLDER, CLUTCH CABLE

3D8-15441-00-00

—
Out of stock

36

STAY,CRANKCASECOVER 1

3D8-1541A-01-00

—
Out of stock

37

DAMPER 4

3D8-15337-02-00

—
Out of stock

38

BOLT, SOCKET

91317-08035-00

—
Out of stock

39

PIN, DOWEL

99590-10114-00

1
Out of stock

40

COVER, OIL PUMP 2

1TP-15426-00-00

—
Out of stock

41

GROMMET (462)

90480-13018-00

—
Out of stock

42

COLLAR

90387-06286-00

—
Out of stock

43

SCREW(4DN)

90149-06302-00

—
Out of stock

44

BEARING

93317-11287-00

—
Out of stock

45

OIL SEAL (12X22X5-371)

93102-12106-00

—
Out of stock

46

AIR DUCT ASSY

1TP-15470-00-00

—
Out of stock

47

PLATE

1TP-15113-00-00

—
Out of stock

48

DAMPER 1

5S7-15316-00-00

—
Out of stock

49

SCREW, TRUSS TAP.

97707-40014-00

—
Out of stock

50

SCREW, TAPPING

97702-40010-00

—
Out of stock
