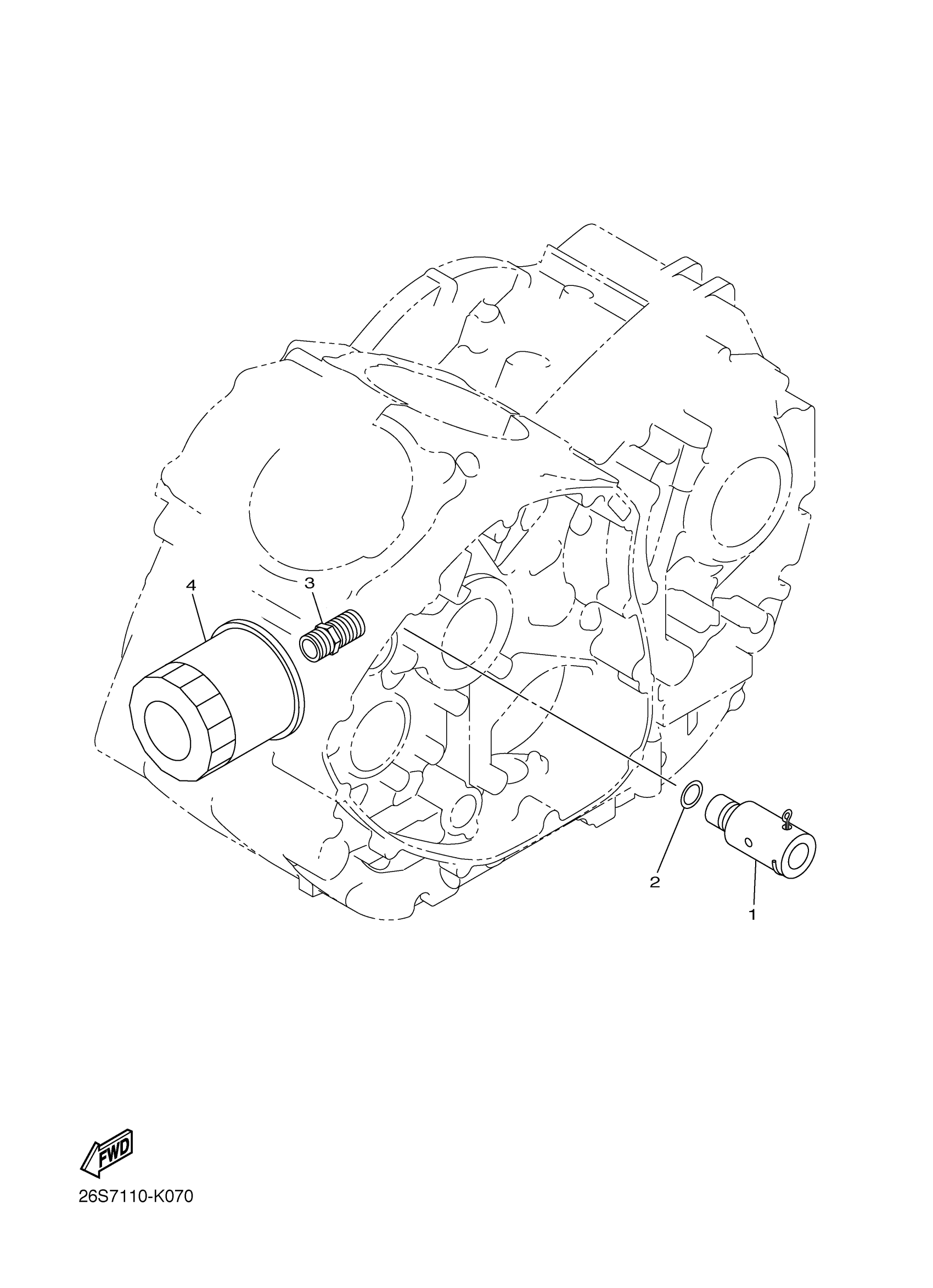

Find the part on the OIL Cleaner diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Bolt (XVS95CGL) OIL Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELIEF VALVE ASSY

3D8-13490-00-00

1

$41.98

In stock

2

O-RING (611)

93210-10096-00

1

$3.11

In stock

3

BOLT, UNION

90401-20008-00

1

$19.18

In stock

4

ELEMENT ASSY, OIL

5GH-13440-90-00

—

$9.69

In stock
