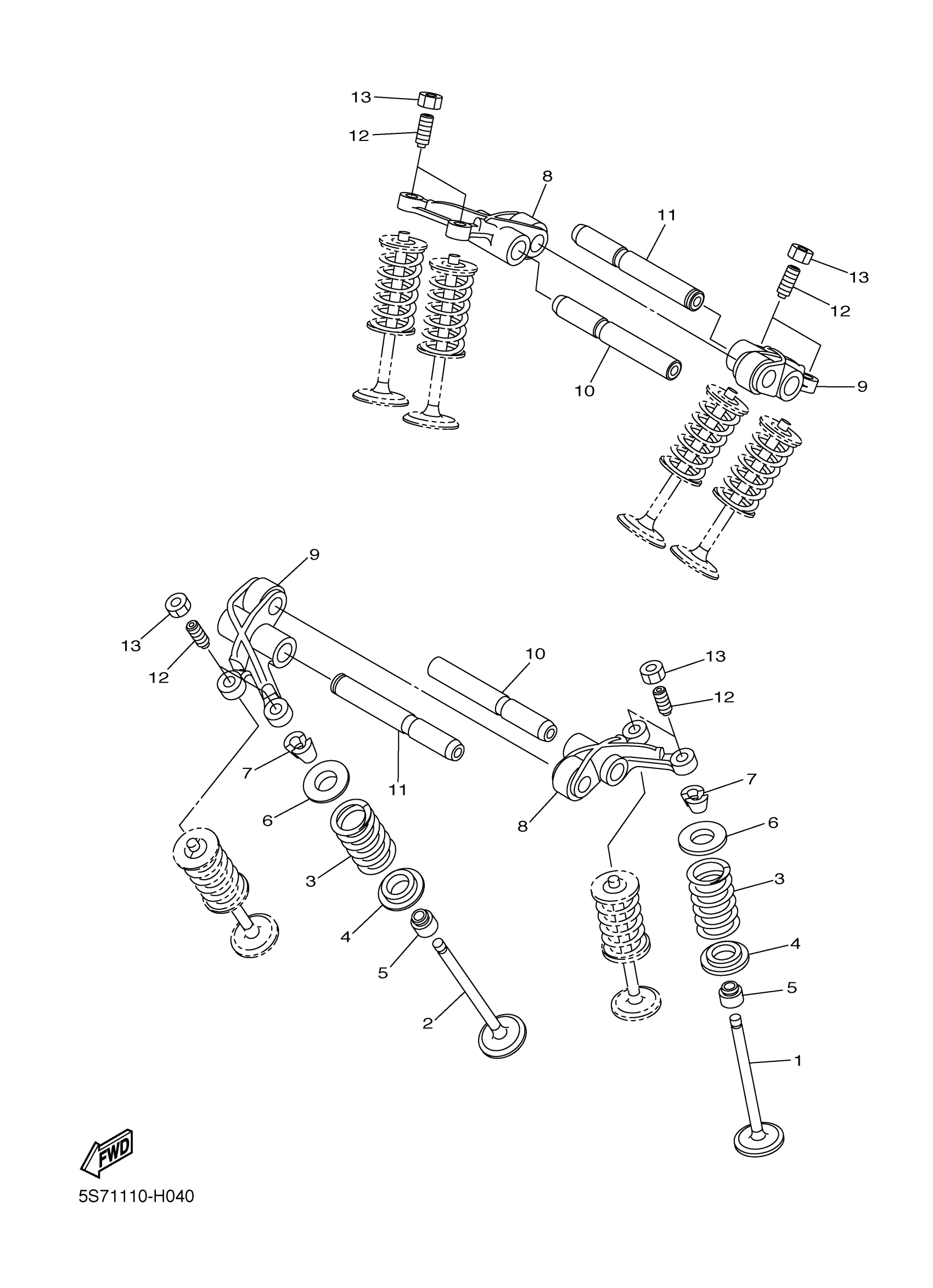

Yamaha XVS95CGL (BOLT) 1TP80 2016 VALVE Diagram

VALVE, INTAKE

5S7-12111-00-00

$31.86

VALVE, EXHAUST

5S7-12121-00-00

$40.55

SPRING, VALVE INNER

5S7-12113-00-00

$5.77

SEAT, VALVE SPRING

3YF-12116-00-00

$7.03

SEAL, VALVE STEM

5H0-12119-00-00

$13.75

RETAINER, VALVE SPRING

3YF-12117-01-00

$12.22

COTTER, VALVE

4G0-12118-00-00

$6.29

ARM, VALVE ROCKER

5S7-12151-00-00

Unavailable

ARM, VALVE ROCKER 2

5S7-12161-00-00

Unavailable

SHAFT, ROCKER

5S7-12146-00-00

$29.05

SHAFT, ROCKER 2

5S7-12156-00-00

$30.24

SCREW, VALVE ADJUSTING

4X7-12159-00-00

Unavailable

NUT, HEXAGON

90170-08173-00

$6.26
