2016 Yamaha Bolt (XVS95CGL) Crankshaft Piston Diagram

← All diagrams

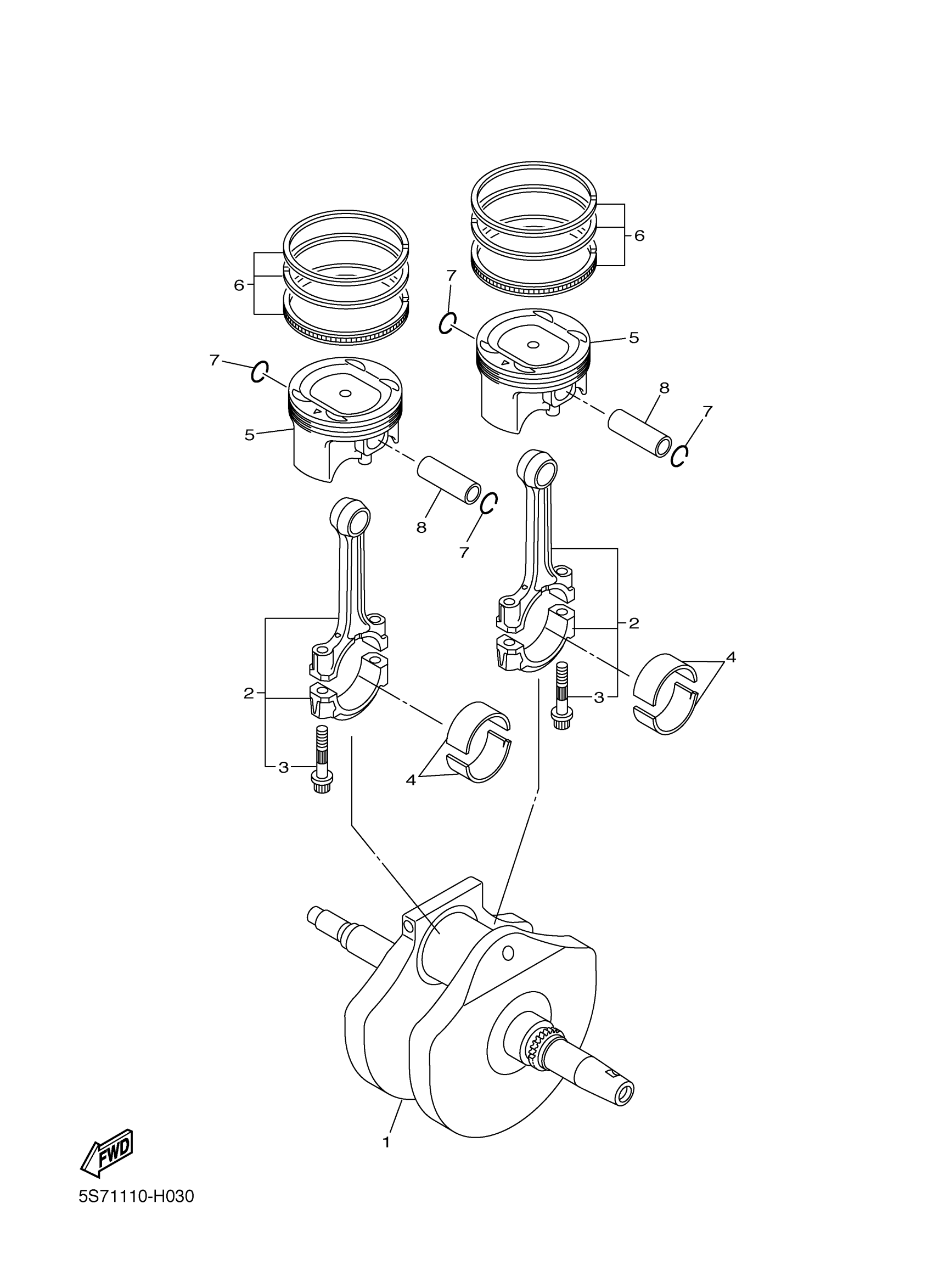

Find the part on the Crankshaft Piston diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Bolt (XVS95CGL) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

5S7-11411-00-00

—

$537.99

In stock

2

CONNECTING ROD ASSY

5S7-11650-00-00

—

$179.49

In stock

3

BOLT, CONNECTING ROD

5YU-11654-00-00

1

$6.91

In stock

4

1

$15.51

In stock

4

1

$15.04

In stock

4

—

$15.12

In stock

5

PISTON (STD)

5S7-11631-01-00

1

$145.63

In stock

6

PISTON RING SET (STD)

5S7-11603-00-00

1

$76.14

In stock

7

CIRCLIP

93450-22146-00

1

$6.18

In stock

8

PIN, PISTON

5PS-11633-00-00

1

$30.06

In stock
