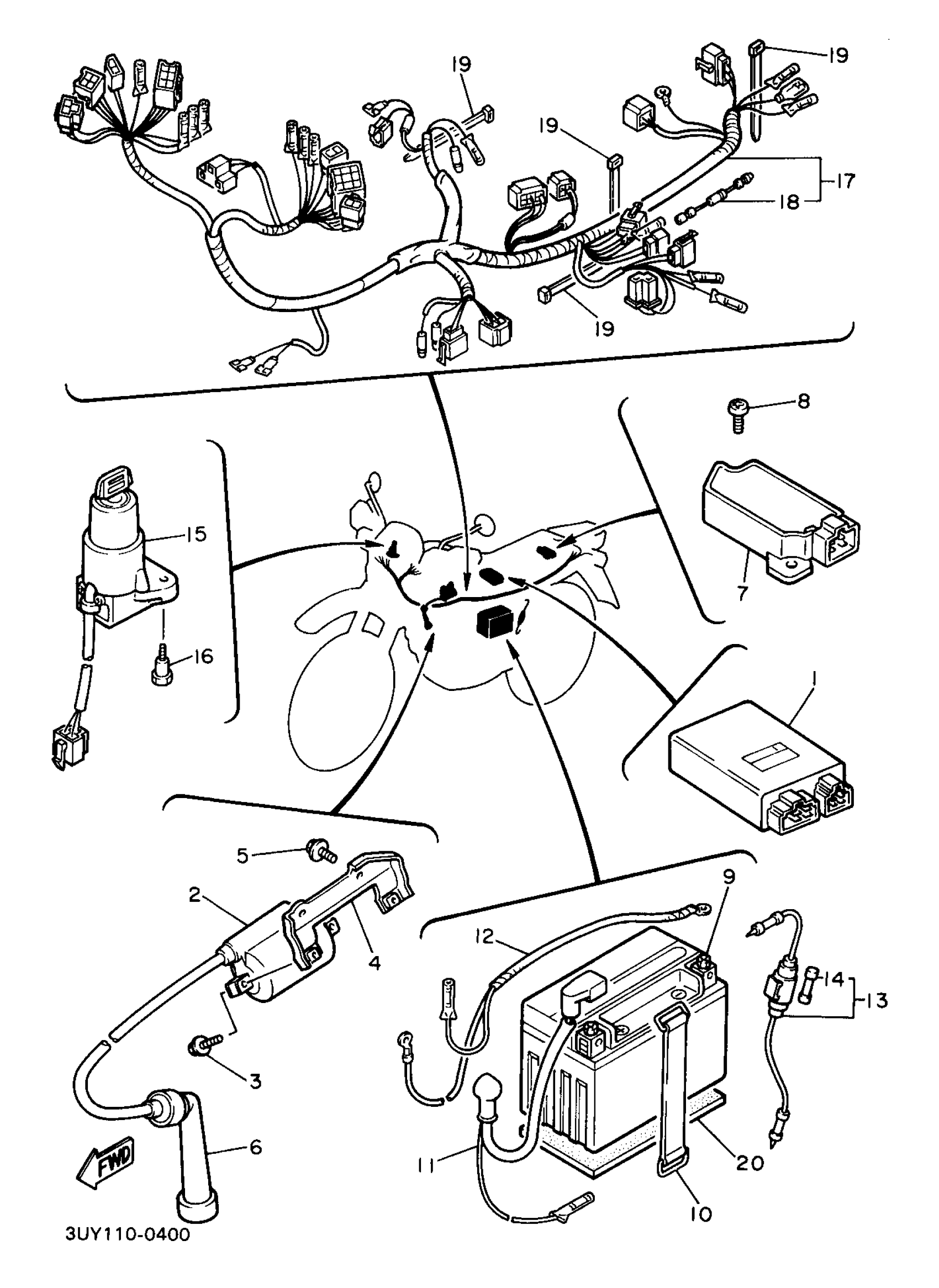

Yamaha XT600EDC (XT600E CA) 1992 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

3TB-82305-00-00

Unavailable

2

IGNITION COIL ASSY

4DN-82320-01-00

$93.89

3

BOLT(3JK)

97027-05020-00

$2.36

4

BRACKET,IGN COIL

3TB-82316-01-00

Unavailable

5

BOLT, FLANGE

95812-06010-00

$2.60

6

PLUG CAP ASSY

4VW-82370-00-00

$59.70

7

RECTIFIER & REGULATOR ASSY

47X-81960-A3-00

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

9

YTX9BS YUASA BATTERY - SA

YTX-9BS00-00-00

$108.35

10

BAND,BATTERY

7H3-82131-00-00

$15.27

11

WIRE, PLUS LEAD

3TB-82115-00-00

Unavailable

12

WIRE, MINUS LEAD

3TB-82116-00-00

Unavailable

13

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

14

FUSE

1A0-82161-00-00

$5.29

15

MAIN SWCH STRG LCK

4DT-82501-00-00

Unavailable

16

BOLT

97522-06516-00

Unavailable

17

WIRE HARNESS ASY

3UY-82590-01-00

Unavailable

18

RECTIFIER 2

3K7-81980-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

SEAT, BATTERY

5Y1-82122-00-00

Unavailable
