1992 Yamaha XT600E CA (XT600EDC) Taillight Diagram

← All diagrams

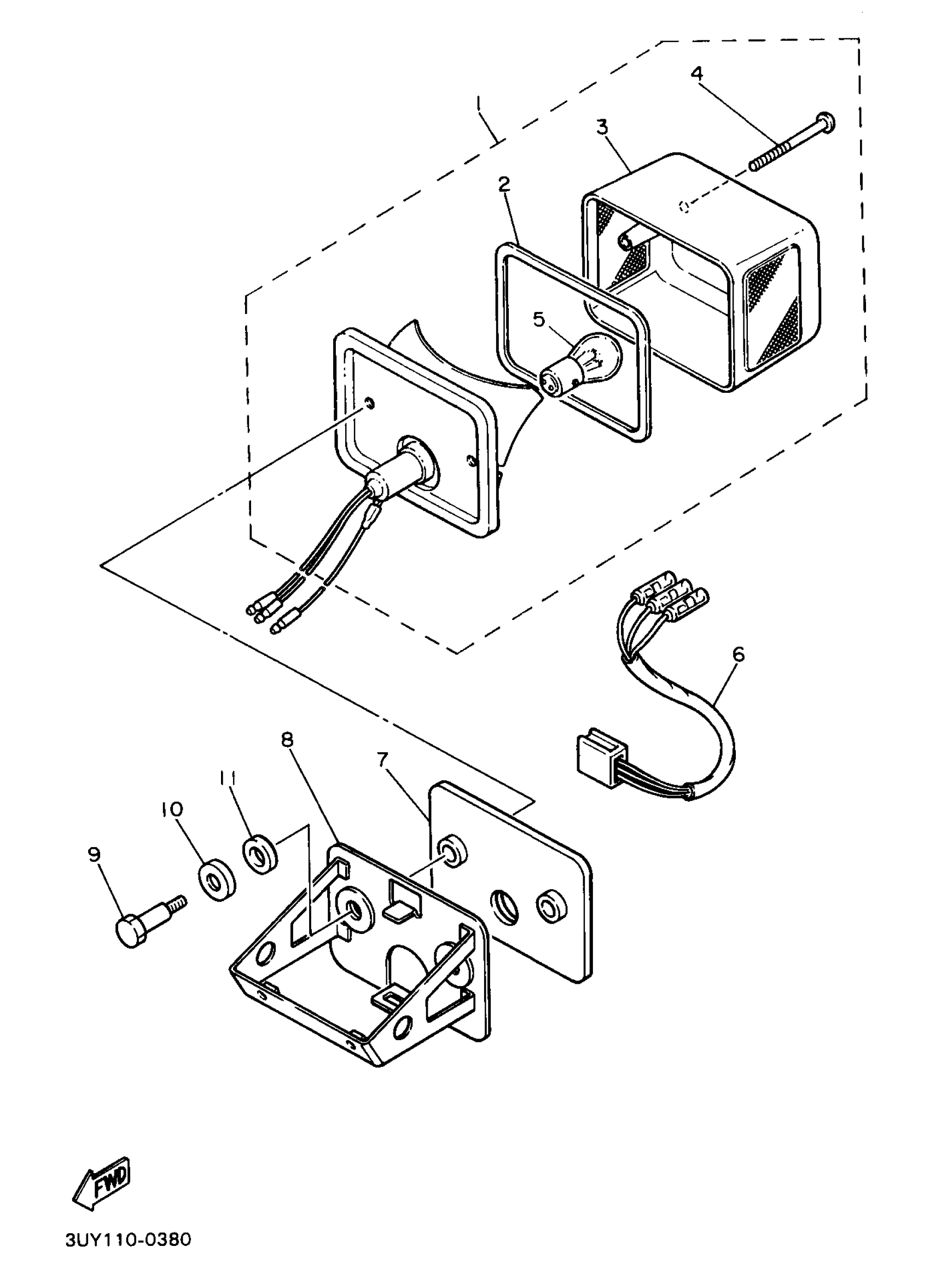

Find the part on the Taillight diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT600E CA (XT600EDC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

2

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

5

1

$10.02

In stock

6

CORD,TAILLIGHT

3NR-84717-00-00

1
Out of stock

7

DAMPER

4L0-84753-00-00

—

$14.00

In stock

8

BRACKET, TAILLIGHT

3UY-84519-00-00

1
Out of stock

9

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

10

WASHER, SPECIAL (498)

90209-08125-00

1

$9.83

In stock

11

WASHER, PLATE (4L0)

90201-083A0-00

1

$6.91

In stock
