1992 Yamaha XT600E CA (XT600EDC) Starter Clutch Diagram

← All diagrams

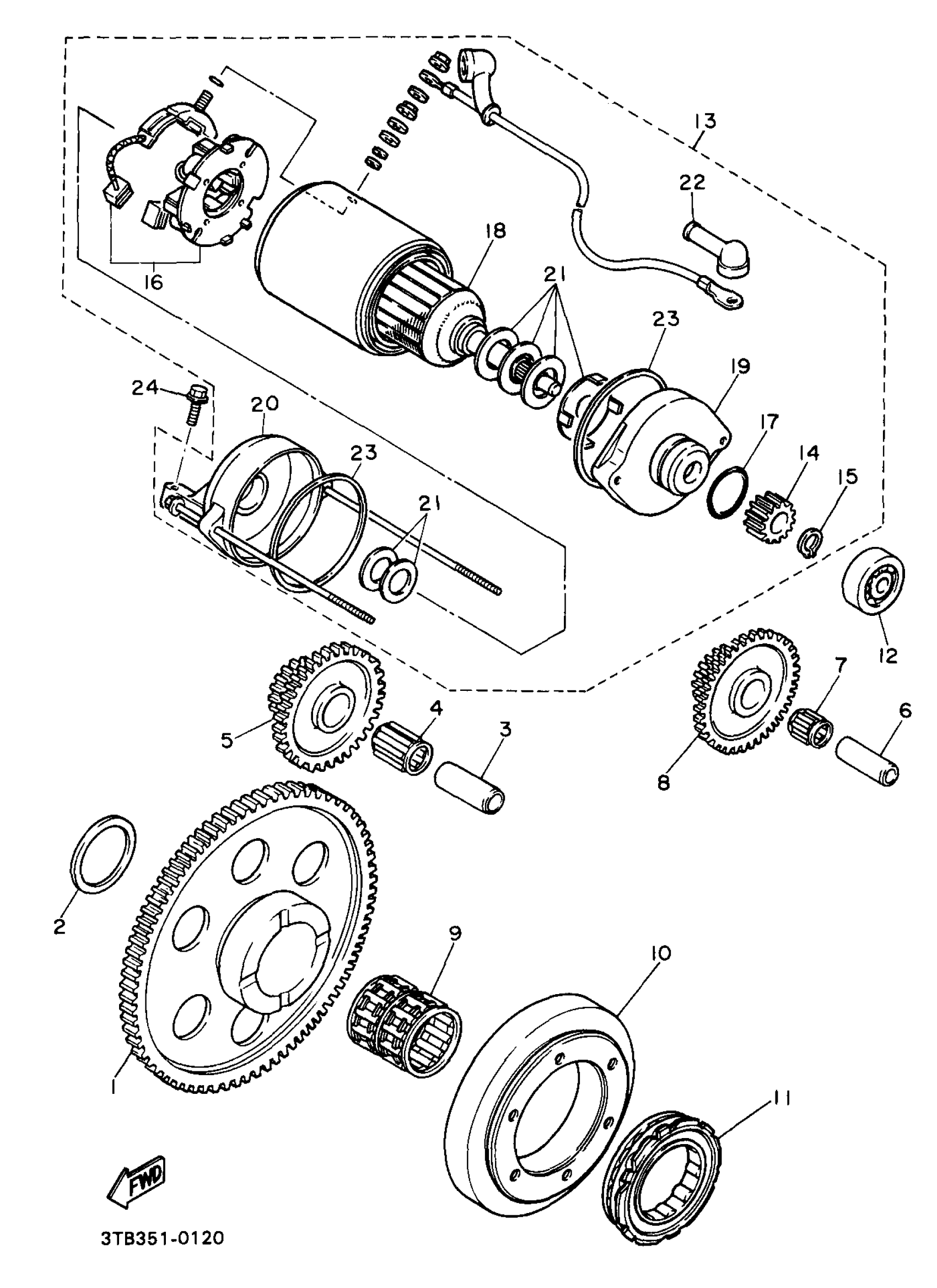

Find the part on the Starter Clutch diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT600E CA (XT600EDC) Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

3YF-15515-00-00

1

$183.12

In stock

2

WASHER, PLATE(1VJ)

90201-303P4-00

—
Out of stock

3

PIN, PISTON

4JH-11633-00-00

1

$33.12

In stock

4

BEARING

93310-217R7-00

1
Out of stock

5

GEAR, IDLER 2

1VJ-15517-00-00

1
Out of stock

6

SHAFT 1

1VJ-15521-00-00

1

$18.21

In stock

7

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

1

$30.76

In stock

8

GEAR, IDLER 1 (40T/15T)

1VJ-15512-00-00

1
Out of stock

9

BEARING, CYLINDRICAL(3TB)

93310-530C7-00

1
Out of stock

10

STARTER ONE-WAY ASSY

3TB-15590-01-00

—
Out of stock

11

RACE, ONE-WAY BEARING

3TB-15594-00-00

—
Out of stock

12

BEARING (3R0)

93306-20009-00

1

$38.79

In stock

13

STARTING MOTOR UNIT

3SX-81890-00-00

1
Out of stock

14

GEAR, STARTING MOTOR

1VJ-15511-00-00

—
Out of stock

15

CIRCLIP (341)

93440-11024-00

1
Out of stock

16

BRUSH SET

3AJ-81801-00-00

—

$110.54

In stock

17

O-RING (437)

93210-24235-00

—

$5.72

In stock

18

ARMATURE ASSY

3AJ-81850-00-00

—
Out of stock

19

FRONT BRACKET ASSY

3AJ-81830-00-00

—

$220.69

In stock

20

. REAR BRACKET ASSEMBLY

3AJ-81820-00-00

1
Out of stock

21

WASHER KIT

3AJ-81809-00-00

—

$13.71

In stock

22

.. CAP

5H0-81871-00-00

1
Out of stock

23

GASKET

35C-81844-00-00

—

$43.01

In stock

24

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock
