1992 Yamaha XT600E CA (XT600EDC) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

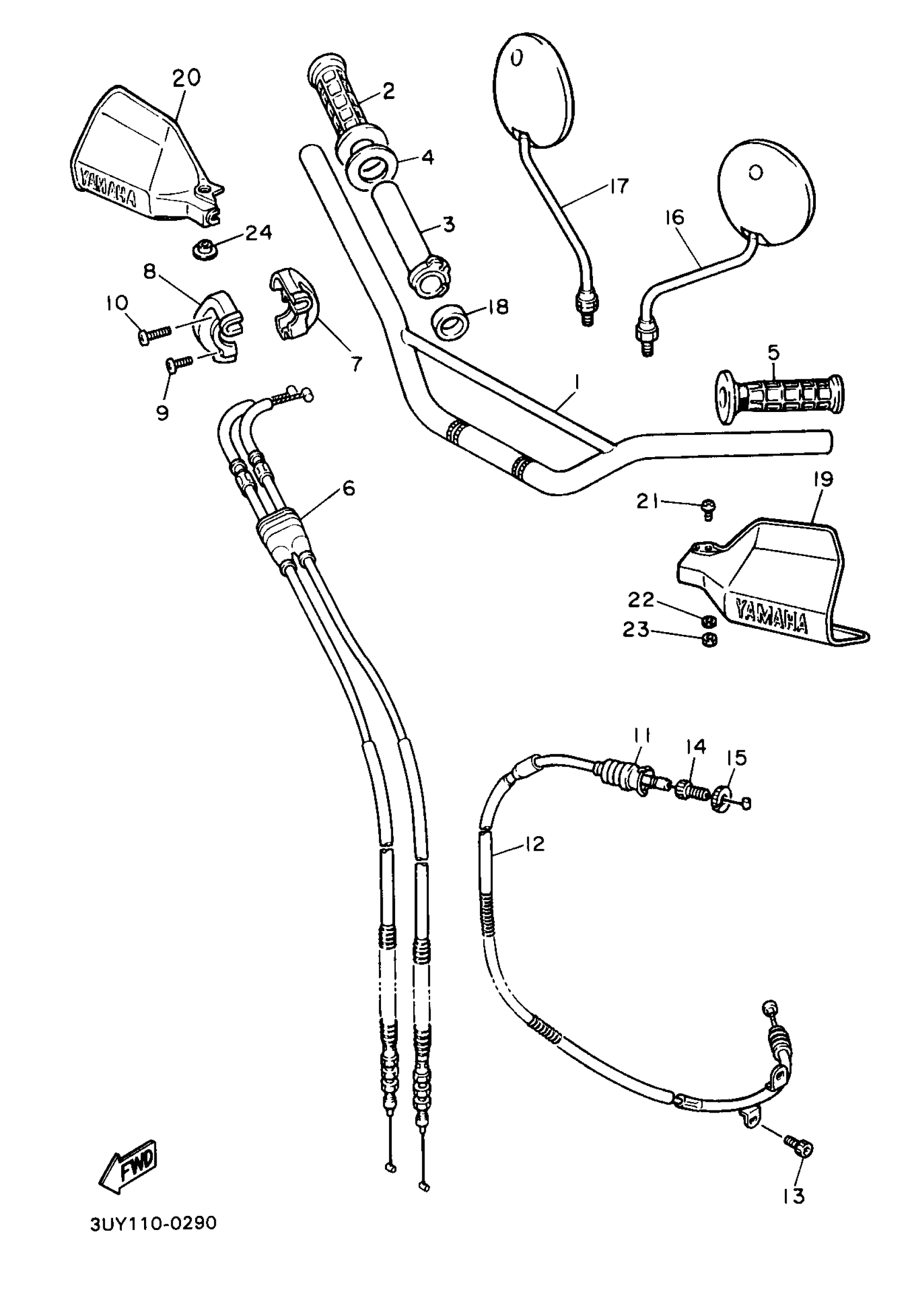

1992 Yamaha XT600E CA (XT600EDC) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3TB-26111-01-00

1
Out of stock

2

GRIP RH

33G-26242-01-00

—
Out of stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP

33G-26241-01-00

—
Out of stock

6

THROTTLE CABLE ASSY

3YF-26302-01-00

1
Out of stock

7

CAP, GRIP UPPER

34K-26281-00-00

—
Out of stock

8

CAP, GRIP LOWER

1VJ-26282-00-00

—
Out of stock

9

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

10

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

11

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

12

CABLE, CLUTCH

3TB-26335-01-00

1

$66.22

In stock

13

BOLT,SOCKET

91317-06010-00

1

$6.91

In stock

14

BOLT

90123-08002-00

1

$8.93

In stock

15

NUT

90179-08030-00

1

$3.78

In stock

16

—

$45.60

In stock

17

MIRROR ASSY., 2

5Y1-26290-11-00

—
Out of stock

18

COLLAR (2H7)

90387-22660-00

—

$7.75

In stock

19

GUARD, BRUSH 1

1VJ-26141-00-00

1
Out of stock

20

GUARD, BRUSH 2

3TB-26142-40-00

1
Out of stock

21

SCREW, PAN

98507-06035-00

—

$6.18

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

NUT(650)

95380-06700-00

—

$6.17

In stock

24

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock
