1992 Yamaha XT600E CA (XT600EDC) Electrical 2 Diagram

← All diagrams

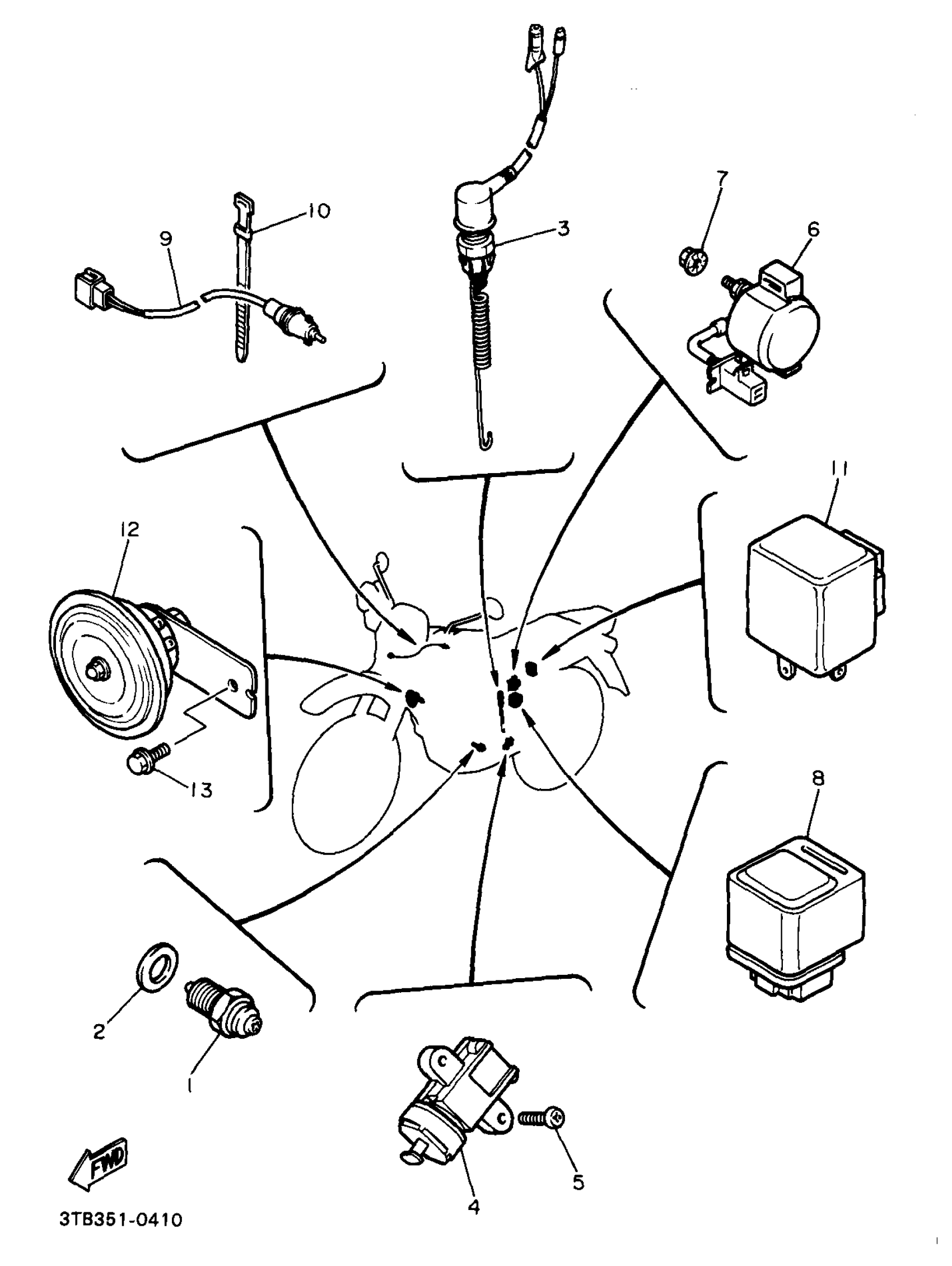

Find the part on the Electrical 2 diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT600E CA (XT600EDC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

2

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

3

STOP SWITCH ASSEMBLY

34L-82530-02-00

1
Out of stock

4

SWITCH, SIDE STAND

3LD-82566-41-00

1
Out of stock

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock

6

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

1
Out of stock

7

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

8

RELAY ASSY

12R-81950-02-00

1
Out of stock

9

SWITCH

2GV-82917-00-00

1
Out of stock

10

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

11

FLASHER RELAY ASSY

30X-83350-20-00

1
Out of stock

12

HORN

2KG-83371-00-00

—
Out of stock

13

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock
