1992 Yamaha XT600E CA (XT600EDC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

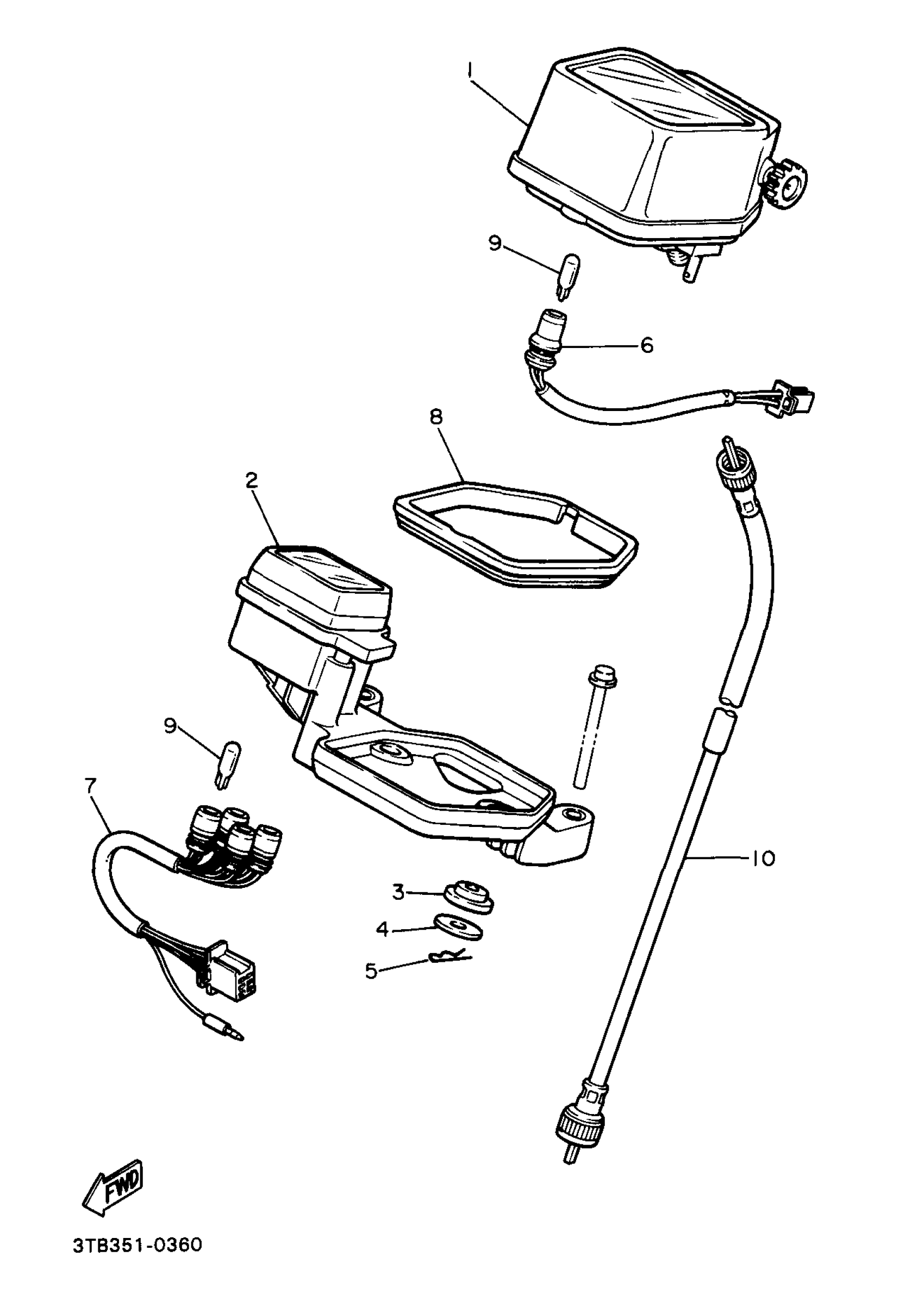

1992 Yamaha XT600E CA (XT600EDC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

3TB-83570-20-00

1
Out of stock

2

BRACKET, METER

3TB-8355A-00-00

1
Out of stock

3

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

4

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

5

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

6

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

7

SOCKET CORD ASSEMBLY

3TB-83520-00-00

1
Out of stock

8

DAMPER

5Y1-83513-00-00

—

$28.86

In stock

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

10

SPEEDOMETER CABLE ASSY

16M-83550-01-00

1
Out of stock
