1990 Yamaha XT600E CA (XT600EAC) Exhaust Diagram

← All diagrams

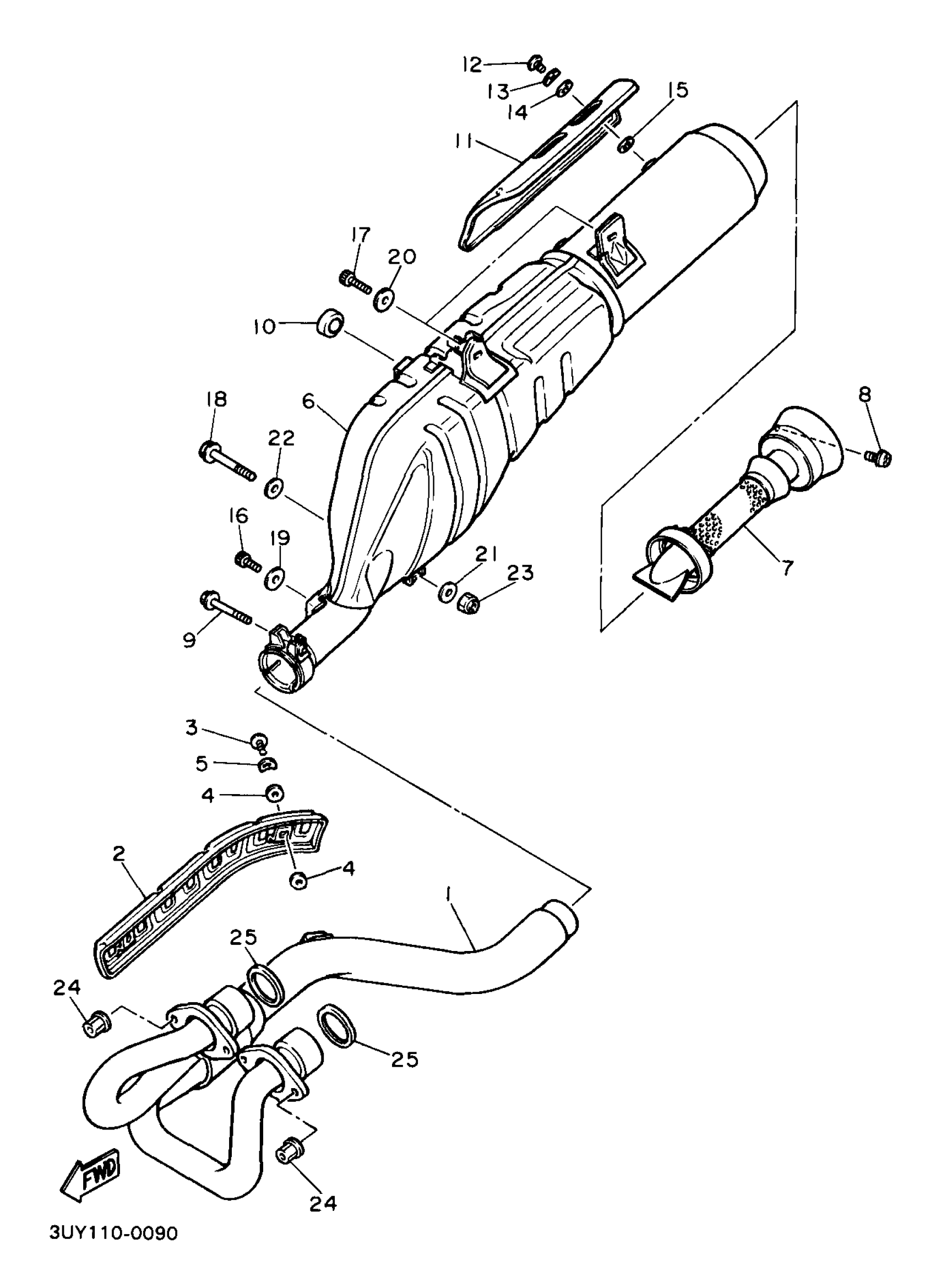

Find the part on the Exhaust diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST 1

34K-14611-01-00

1
Out of stock

2

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

1
Out of stock

3

SCREW, TAPPING (30X)

90164-06017-00

1
Out of stock

4

WASHER, PROTECTOR

30X-14766-00-00

1
Out of stock

5

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

6

MUFFLER L

3UY-14711-01-00

1
Out of stock

7

PIPE, OUTLET

34K-14752-00-00

1
Out of stock

8

SCREW, PAN

98507-06010-00

1
Out of stock

9

BOLT, FLANGE(JN5)

95817-08045-00

1
Out of stock

10

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

11

PROTECTOR, MUFFLER 2

3TB-14728-00-00

—
Out of stock

12

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

13

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

14

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

15

WASHER, PROTECTOR

30X-14766-00-00

1
Out of stock

16

BOLT(2KF)

90109-085E2-00

—

$5.98

In stock

17

BOLT (4W3)

90105-10186-00

1
Out of stock

18

BOLT, WASHER BASED (4K0)

90105-10169-00

—

$9.98

In stock

19

WASHER (853)

90201-08326-00

—

$6.17

In stock

20

WASHER, PLATE(52H)

90201-102J5-00

—

$13.94

In stock

21

WASHER, PLATE(47X)

90201-101J1-00

—

$6.17

In stock

22

WASHER, PLATE

90201-10144-00

1
Out of stock

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

24

NUT (1AE)

90179-06500-00

—
Out of stock

25

GASKET, EXHAUST PIPE

3YF-14613-01-00

—

$11.58

In stock
