1990 Yamaha XT600E CA (XT600EAC) Camshaft Chain Diagram

← All diagrams

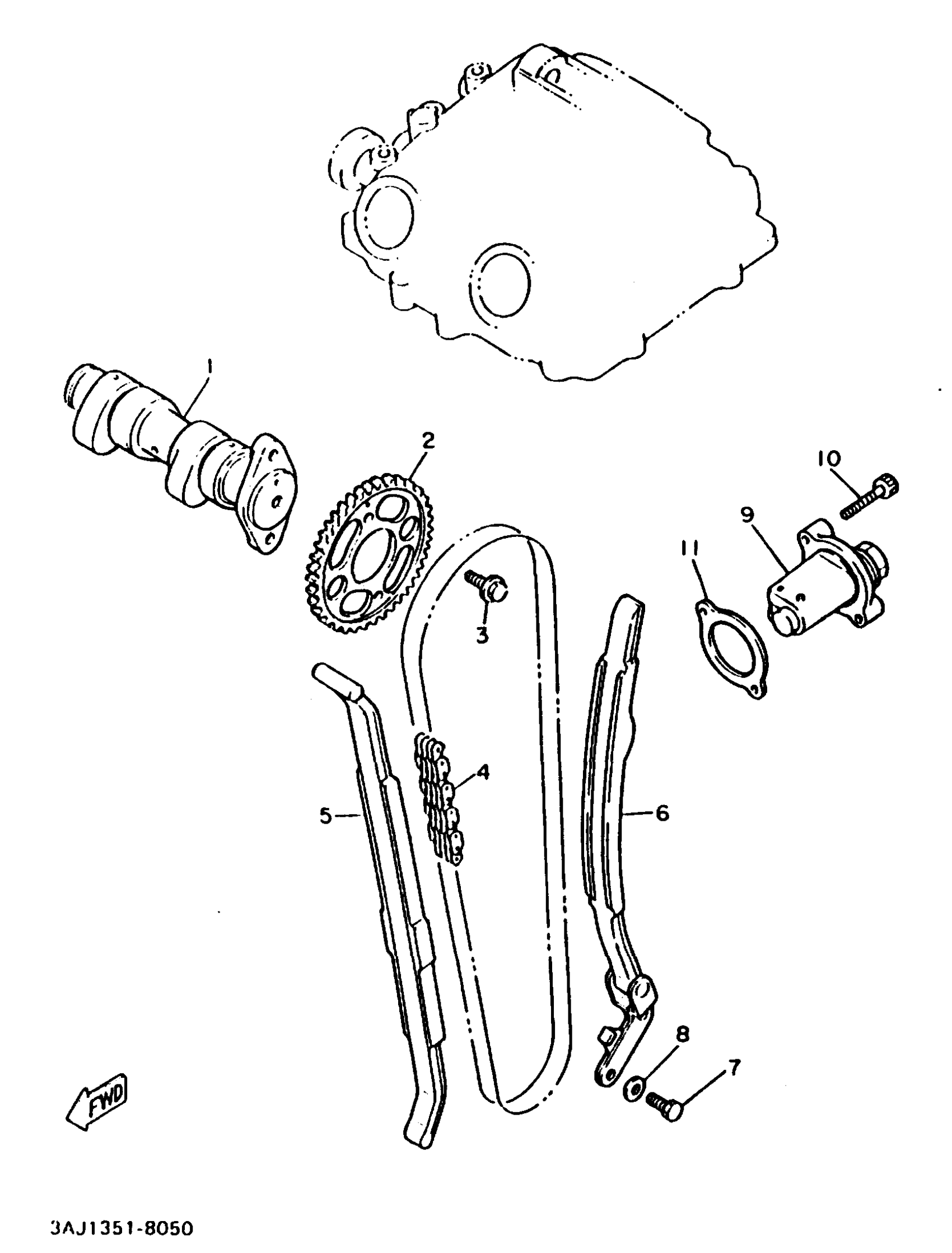

Find the part on the Camshaft Chain diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Camshaft Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT 1

1JK-12171-00-00

1
Out of stock

2

SPROCKET, CAM CHAIN

3TB-12176-00-00

1
Out of stock

3

BOLT, FLANGE

90105-07004-00

1
Out of stock

4

CHAIN

94591-40126-00

1
Out of stock

5

GUIDE, STOPPER 1

34K-12231-01-00

—
Out of stock

6

GUIDE, STOPPER 2

34K-12241-01-00

1
Out of stock

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

8

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

9

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

1
Out of stock

10

BOLT,SOCKET

91317-06025-00

1
Out of stock

11

GASKET, TENSIONER CASE

4DW-12213-00-00

1
Out of stock
