1990 Yamaha XT600E CA (XT600EAC) Crankshaft Piston Diagram

← All diagrams

Find the part on the Crankshaft Piston diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

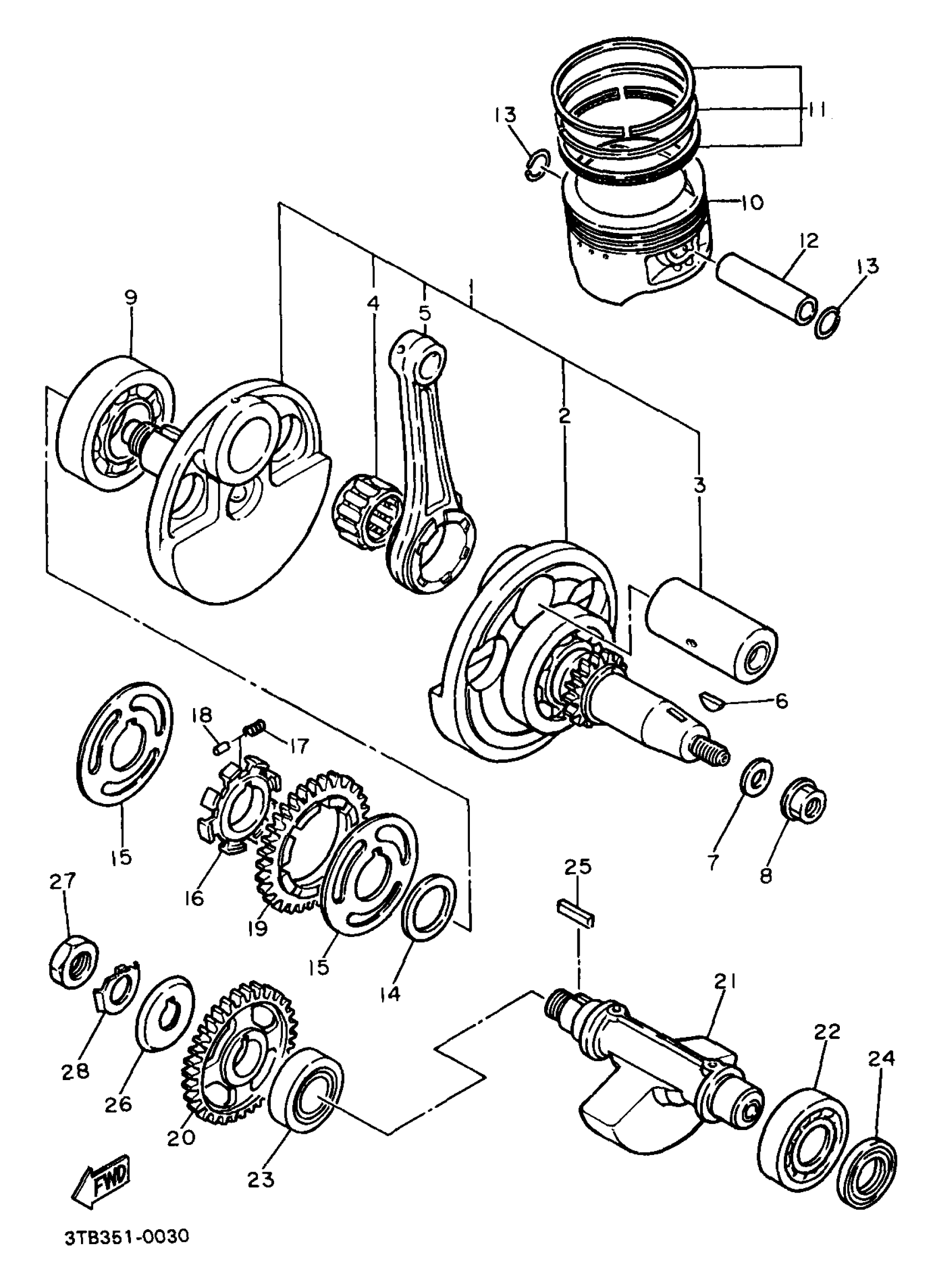

1990 Yamaha XT600E CA (XT600EAC) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

3TB-11400-00-00

1
Out of stock

2

. CRANK 1

1VJ-W1141-00-00

1
Out of stock

3

PIN, CRANK 1

1VJ-11681-00-00

1

$80.31

In stock

4

—

$103.57

In stock

5

ROD, CONNECTING

3TB-11651-00-00

—

$94.75

In stock

6

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

7

WASHER, PLATE

90201-140A6-00

1
Out of stock

8

NUT

90179-14317-00

1

$18.28

In stock

9

BEARING (3GV)

93306-30702-00

1

$69.32

In stock

10

PISTON (STD)

3TB-11631-00-Y0

1
Out of stock

10

PISTON (0.50MM O/S)

3TB-11636-00-00

—

$151.22

In stock

10

PISTON (1.00MM O/S)

3TB-11638-00-00

—
Out of stock

11

PISTON RING SET

34L-11610-00-00

1

$60.79

In stock

11

1

$58.60

In stock

11

PISTON RING SET

34L-11610-40-00

—

$36.43

In stock

12

PIN, PISTON

1JK-11633-01-00

—

$63.80

In stock

13

CIRCLIP 256116340000

93450-24028-00

—

$4.07

In stock

14

WASHER, PLATE (5Y1)

90201-301F4-00

—
Out of stock

15

WASHER, BEARING COVER

34K-11565-02-00

1
Out of stock

16

BOSS, BUFFER

5Y1-11496-01-00

1
Out of stock

17

SPRING, COMPRESSION (5Y1)

90501-22721-00

—

$8.02

In stock

18

PIN, DOWEL

93605-10090-00

—

$5.41

In stock

19

GEAR, DRIVE

2JT-11536-00-00

1
Out of stock

20

GEAR, BALANCE WT 44T

5Y1-11531-00-00

1
Out of stock

21

WEIGHT 1

34K-11454-00-00

1
Out of stock

22

BEARING (3Y1)

93306-30525-00

—
Out of stock

23

BEARING(3RR)

93306-30560-00

—

$71.07

In stock

24

OIL SEAL (5Y1)

93101-25106-00

—
Out of stock

25

KEY, STRAIGHT(34K)

90282-05065-00

—

$8.80

In stock

26

PLATE, BREATHER 2

34K-11145-00-00

1
Out of stock

27

NUT(24V)

90170-16343-00

—

$13.22

In stock

28

WASHER, LOCK(24V)

90215-16242-00

—

$6.45

In stock
