1990 Yamaha XT600E CA (XT600EAC) Cylinder Head Diagram

← All diagrams

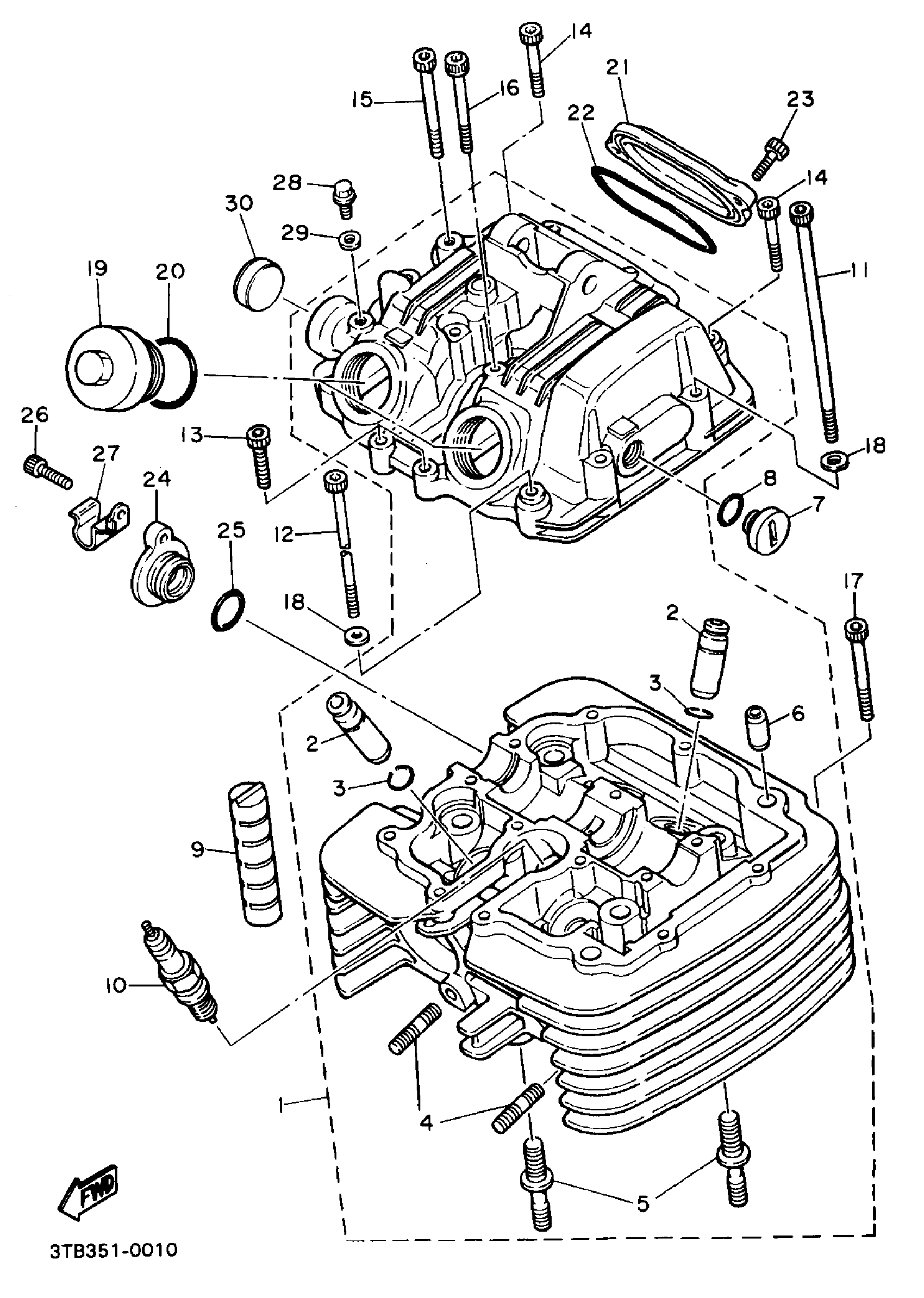

Find the part on the Cylinder Head diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

3TB-11101-02-00

1
Out of stock

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

1

$65.20

In stock

3

CIRCLIP (1L9)

93440-12052-00

1

$1.75

In stock

4

BOLT, STUD(1JK)

90116-06475-00

1

$6.85

In stock

5

. BOLT, STUD

90116-10378-00

1
Out of stock

6

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

7

1

$15.72

In stock

8

O-RING(36Y)

93210-13657-00

1

$1.11

In stock

9

ABSORBER

583-11127-00-00

1

$6.72

In stock

10

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

1

$3.92

In stock

11

BOLT, SOCKET

91317-06125-00

1

$16.22

In stock

12

BOLT,SOCKET

91317-06115-00

—

$13.62

In stock

13

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

14

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

15

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

16

BOLT(2NX)

90109-063E9-00

—

$3.51

In stock

17

BOLT,SOCKET

91317-06050-00

—

$3.37

In stock

18

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

19

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

—

$27.22

In stock

20

O-RING (341)

93210-32172-00

—

$5.78

In stock

21

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

—
Out of stock

22

O-RING (4X7)

93210-62446-00

—

$10.23

In stock

23

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

24

CAP, TENSIONER CASE

99999-03125-00

—

$38.25

In stock

25

O-RING (5Y1)

93210-19522-00

—

$5.86

In stock

26

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

27

CLAMP

90462-15196-00

1
Out of stock

28

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

29

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

30

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock
