1990 Yamaha XT600E CA (XT600EAC) Crankcase Cover Diagram

← All diagrams

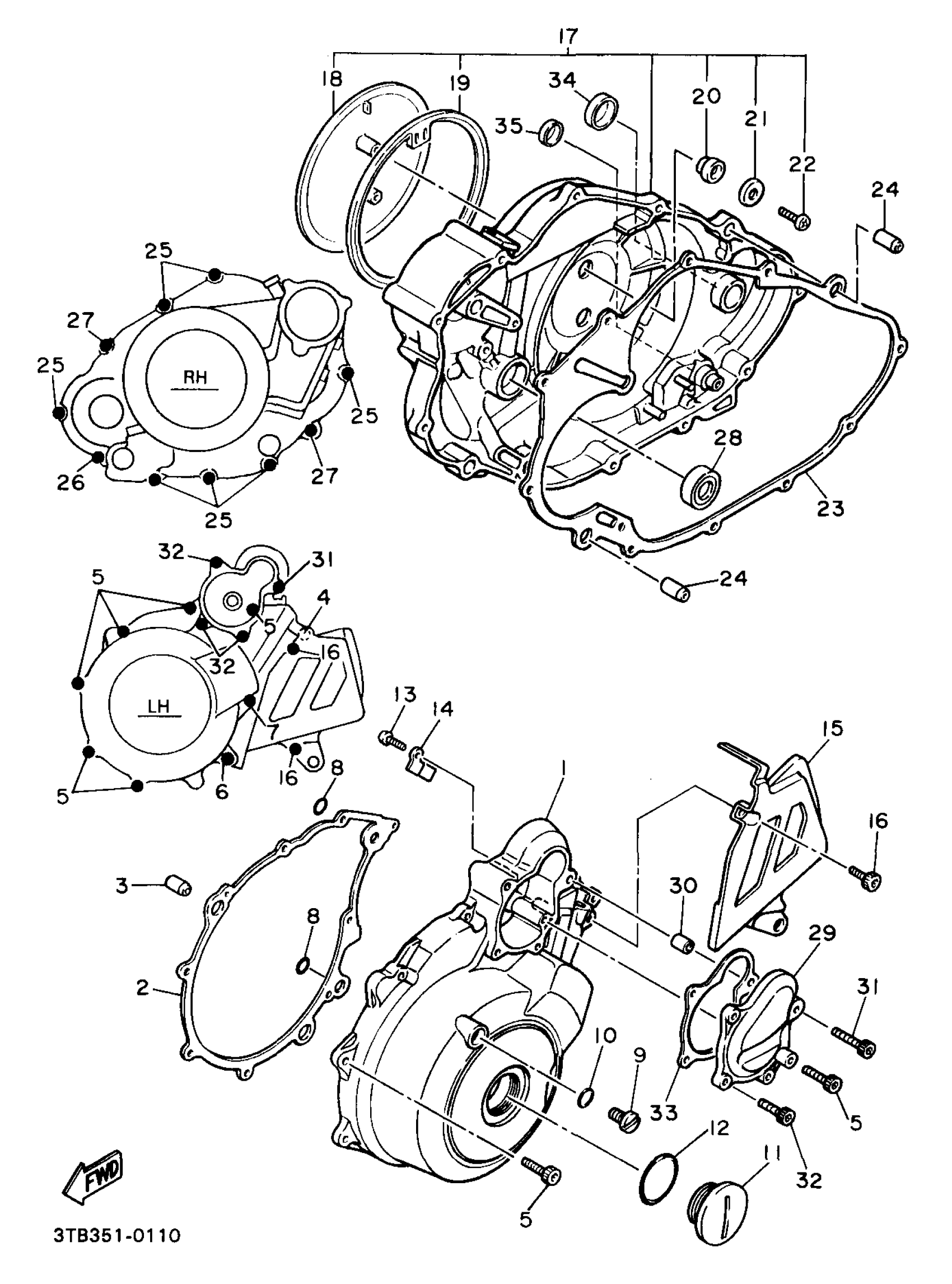

Find the part on the Crankcase Cover diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE 1

99999-03436-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

4DW-15451-00-00

—

$22.94

In stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

5

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

6

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

7

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

8

O-RING (2H7)

93210-13361-00

1
Out of stock

9

PLUG, STRAIGHT SCREW

90340-08002-00

1
Out of stock

10

. GASKET

90430-08143-00

1

$2.90

In stock

11

PLUG, STRAIGHT SCREW(2WK)

90340-36121-00

1
Out of stock

12

O-RING

93210-35804-00

1

$0.49

In stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

CLAMP

90462-16102-00

1
Out of stock

15

COVER, CRANKCASE 2

3AJ-15421-00-00

1
Out of stock

16

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

17

CRANKCASE COVER ASSEMBLY 3

3DS-15430-00-00

1
Out of stock

18

. COVER, CHAIN CASE

2WK-15418-01-00

1
Out of stock

19

. RING, RUBBER

1JK-15449-00-00

1
Out of stock

20

GROMMET

1JK-15486-00-00

—
Out of stock

21

. WASHER

90209-05279-00

1
Out of stock

22

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

23

GASKET, CRANKCASE COVER 3

4DW-15462-00-00

—

$27.77

In stock

24

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

25

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

26

—

$3.82

In stock

27

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

28

OIL SEAL (3Y1)

93101-14092-00

—
Out of stock

29

COVER, GENERATOR

3TB-15415-00-00

1
Out of stock

30

PIN, DOWEL(3XW)

91808-16023-00

—

$5.48

In stock

31

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

32

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

33

GASKET 1

4DW-15455-00-00

—

$8.18

In stock

34

PLUG (3L3)

90338-30096-00

—

$11.51

In stock

35

. PLUG

90338-21100-00

1
Out of stock
