1990 Yamaha XT600E CA (XT600EAC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

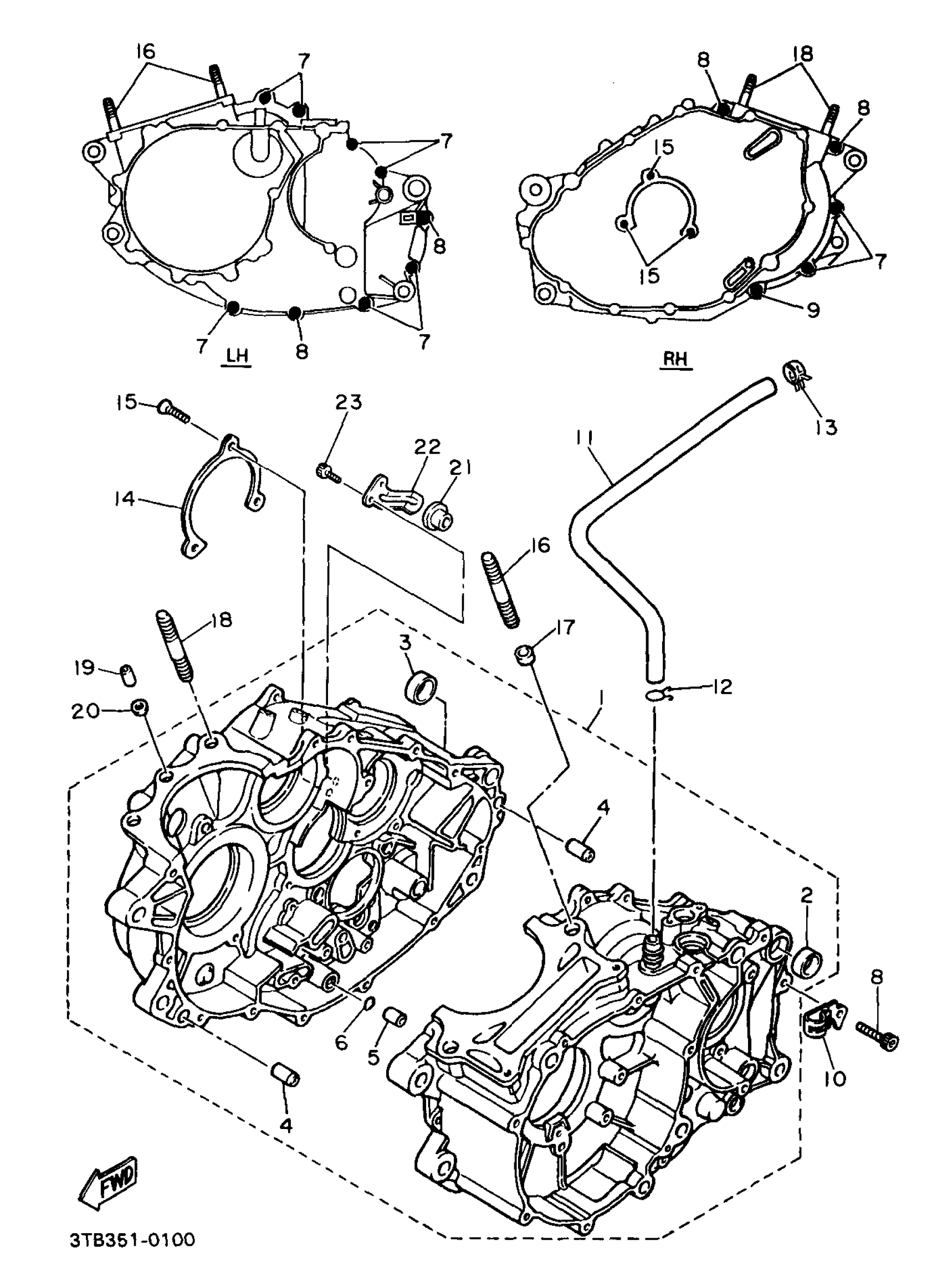

1990 Yamaha XT600E CA (XT600EAC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

3DS-15100-00-00

1
Out of stock

2

COLLAR

90387-17009-00

1
Out of stock

3

COLLAR (3Y1)

90387-16782-00

1

$4.65

In stock

4

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

5

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

1
Out of stock

7

1

$3.82

In stock

8

BOLT,SOCKET

91317-06045-00

1
Out of stock

9

BOLT,SOCKET

91317-06060-00

1
Out of stock

10

CLAMP

90465-08344-00

1
Out of stock

11

PIPE, BREATHER 1

3TB-11166-00-00

—
Out of stock

12

CLIP (371)

90467-14015-00

1

$7.51

In stock

13

CLIP(3TB)

90467-17128-00

1

$6.68

In stock

14

PLATE, BEARING COVER

5Y1-15383-00-00

1
Out of stock

15

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

16

BOLT, STUD(1JK)

90116-10506-00

—

$4.06

In stock

17

. PIN, DOWEL

99510-14016-00

1
Out of stock

18

BOLT, STUD (1W4)

90116-10263-00

—

$9.80

In stock

19

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

20

GASKET (5Y1)

90430-08178-00

—

$4.83

In stock

21

PLUG, BLIND

3Y6-15167-00-00

—
Out of stock

22

PLATE, LOCK

3Y6-15144-00-00

1
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
