1982 Yamaha XT550 (XT550J) Speedometer Tachometer Diagram

← All diagrams

Find the part on the Speedometer Tachometer diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

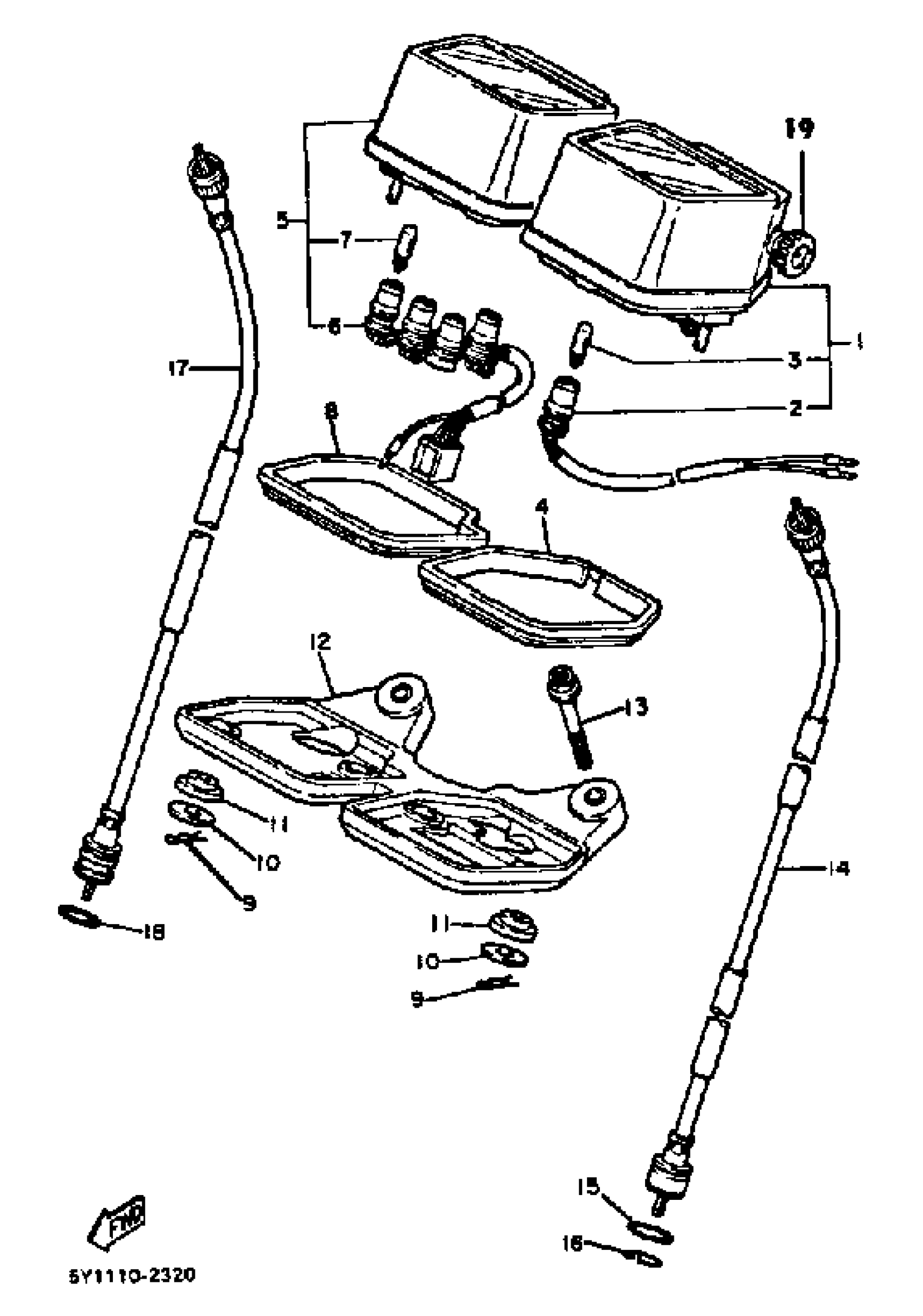

1982 Yamaha XT550 (XT550J) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

43F-83570-G1-00

1
Out of stock

2

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

DAMPER

5Y1-83513-00-00

—

$28.86

In stock

5

TACHOMETER ASY

2NF-83540-00-00

1
Out of stock

6

. SOCKET CORD ASSEMBLY (30X-83520-00-00)

5Y1-83520-00-00

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

DAMPER

5Y1-83541-00-00

1
Out of stock

9

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

10

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

11

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

12

BRACKET, METER

5Y1-83519-00-00

1
Out of stock

13

SCREW, HEXAGON

90153-06036-00

1
Out of stock

14

SPEEDOMETER CABLE

5Y1-83550-00-00

1
Out of stock

15

O-RING (26H)

93210-14579-00

1

$5.69

In stock

16

RING, STOP

102-25137-00-00

—
Out of stock

17

TACHOMETER CABLE

5Y1-83560-00-00

1
Out of stock

18

O-RING (26H)

93210-14579-00

1

$5.69

In stock

19

UNAVAILABLE IN PRICE BOOK

5Y1-83478-00-00

1
Out of stock
