1982 Yamaha XT550 (XT550J) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

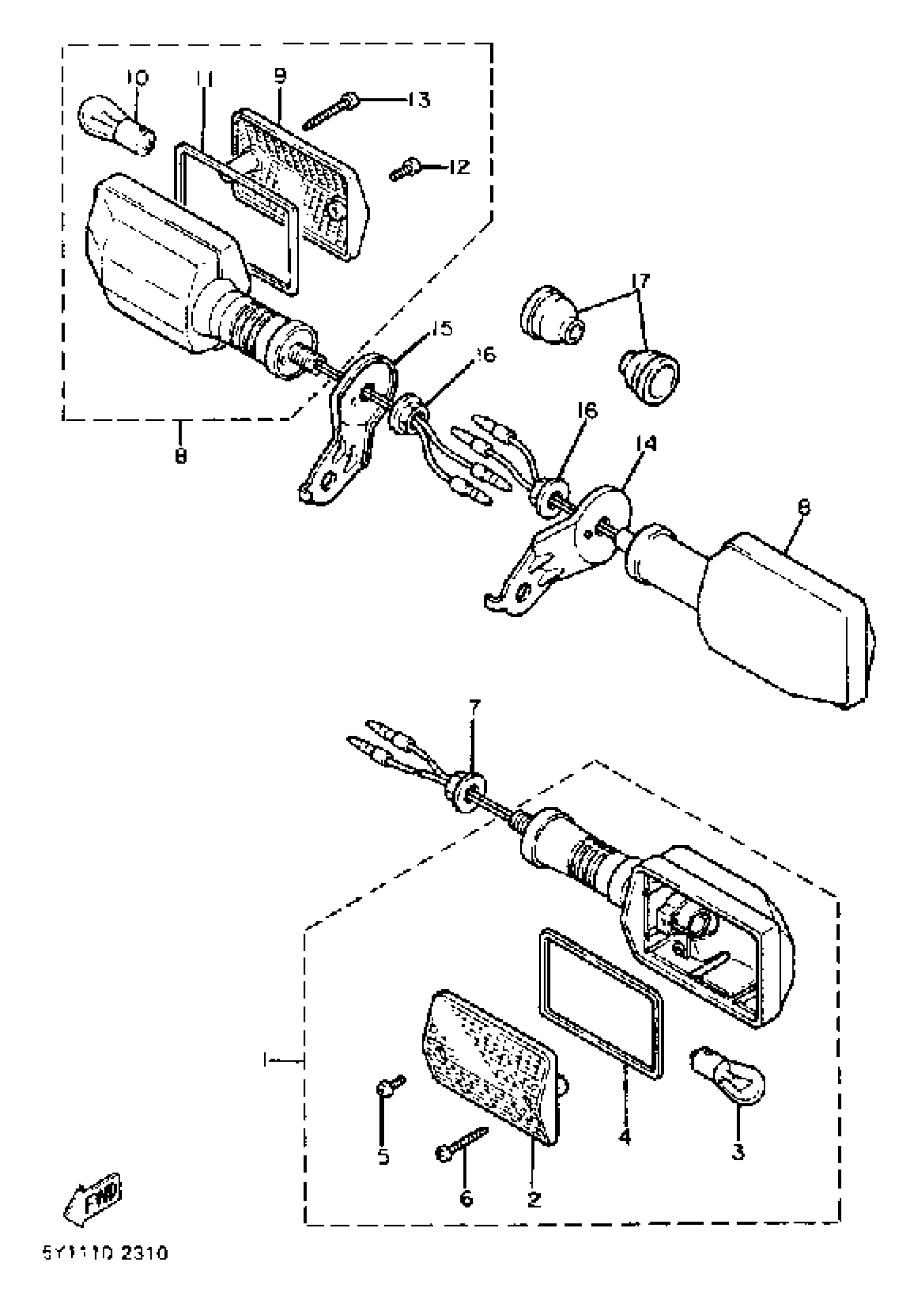

1982 Yamaha XT550 (XT550J) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSEMBLY 1

5Y1-83310-70-00

1
Out of stock

2

LENS FLASHER

5Y1-83312-00-00

1
Out of stock

3

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

4

GASKET, FLASHER LENS

5Y1-83313-00-00

—
Out of stock

5

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

6

SCREW, TAPPING(3AH)

97707-40630-00

1

$6.68

In stock

7

NUT(3GG)

90179-12588-00

1

$5.65

In stock

8

REAR FLASHER LIGHT ASSY 1

37A-83330-21-00

1
Out of stock

9

LENS FLASHER

5Y1-83312-00-00

1
Out of stock

10

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

11

GASKET, FLASHER LENS

5Y1-83313-00-00

—
Out of stock

12

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

13

SCREW, TAPPING(3AH)

97707-40630-00

1

$6.68

In stock

14

STAY, FLASHER

5Y1-83368-01-00

1
Out of stock

15

STAY, FLASHER

5Y1-83369-01-00

1
Out of stock

16

NUT(3GG)

90179-12588-00

1

$5.65

In stock

17

CAP

10V-83365-01-00

—

$2.83

In stock
