1982 Yamaha XT550 (XT550J) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

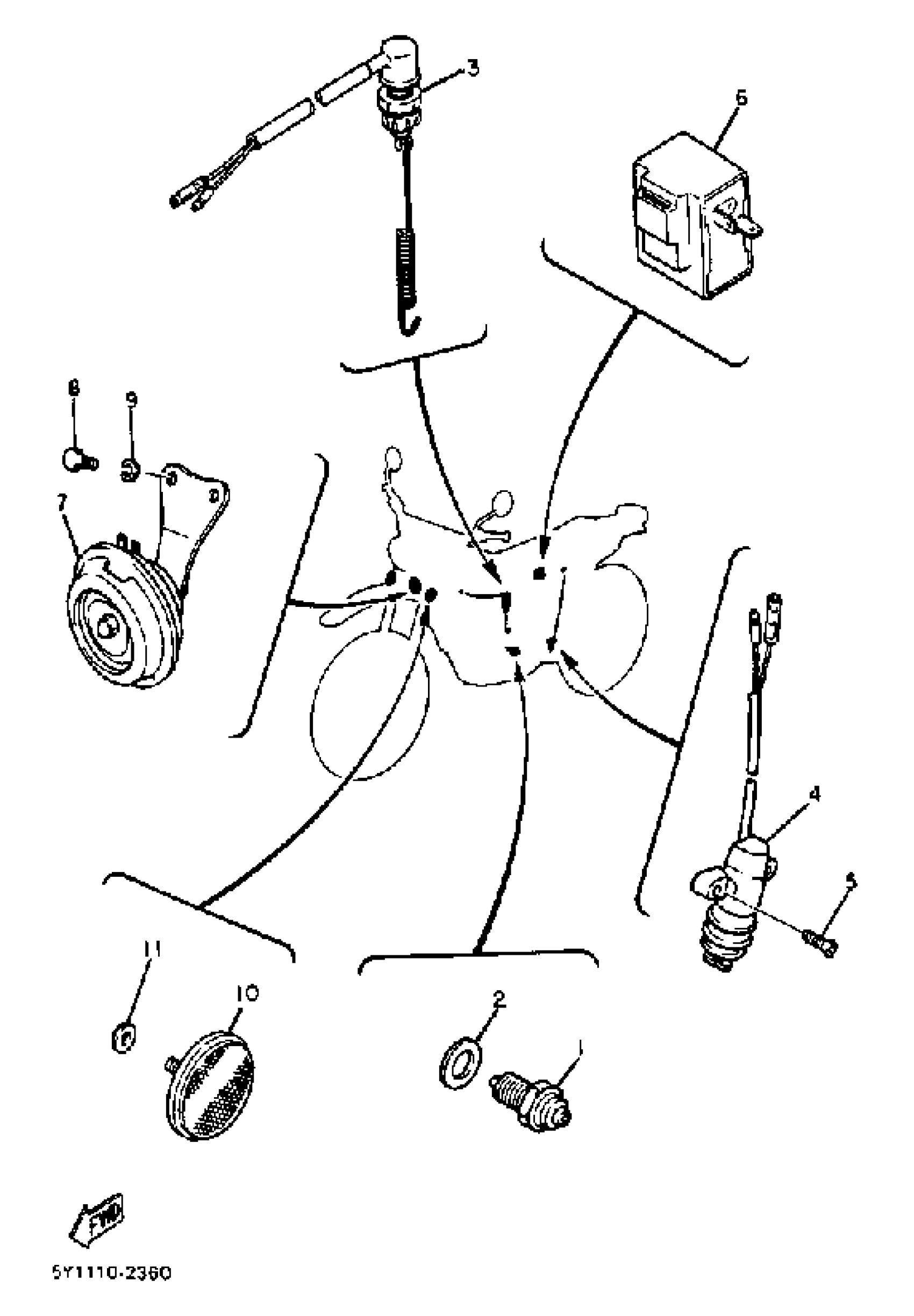

1982 Yamaha XT550 (XT550J) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

2

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

3

STOP SWITCH ASSEMBLY

5Y1-82530-02-00

1
Out of stock

4

SWICH, SIDE STAND

5Y1-82566-00-00

1
Out of stock

5

SCREW, FLAT

98707-05020-00

1
Out of stock

6

FLASHER RELAY ASSY

30X-83350-20-00

1
Out of stock

7

HORN

4GL-83371-00-00

—

$24.12

In stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

REFLECTOR, FRONT 1

355-85111-01-00

1
Out of stock

11

WASHER, PLATE(3AJ)

90202-05191-00

1

$6.01

In stock
