1982 Yamaha XT550 (XT550J) Headlight Diagram

← All diagrams

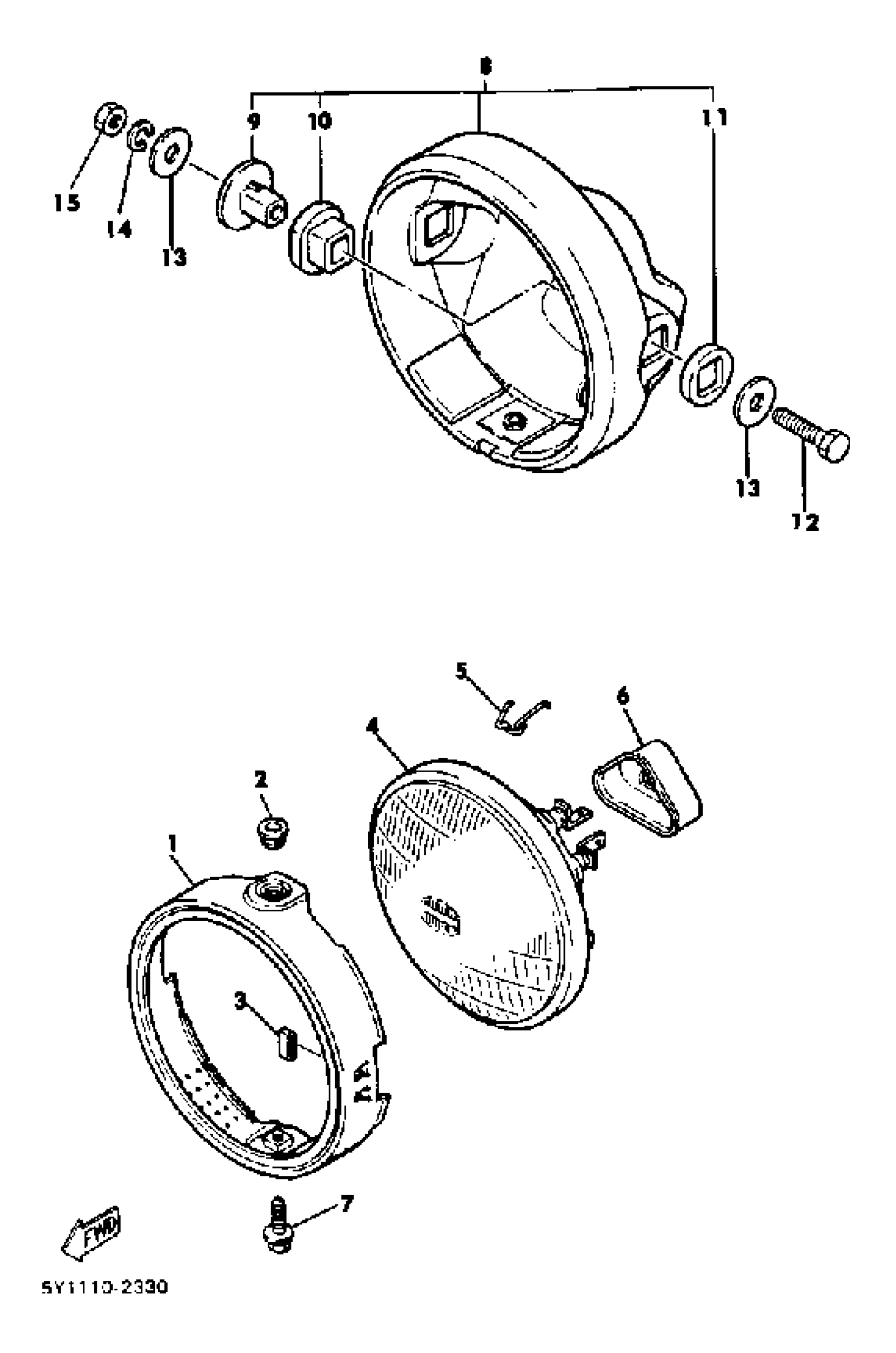

Find the part on the Headlight diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RING, RETAINING

3J0-84195-60-00

—

$52.78

In stock

2

RING, RETAINING

3J0-84195-60-00

—

$52.78

In stock

3

. SPACER

498-84128-60-00

1
Out of stock

4

. LENS ASSEMBLY

5Y1-84320-60-00

1
Out of stock

5

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

6

. COVER, SOCKET

341-84397-61-00

1
Out of stock

7

BOLT, HEXAGON

1M1-84137-60-00

1

$5.17

In stock

8

BODY ASSY, HEADLIGHT

3J0-84130-60-00

—

$65.58

In stock

9

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

10

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

11

DAMPER

1M1-84164-60-00

1

$22.31

In stock

12

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

13

WASHER(6TC)

92907-08200-00

1
Out of stock

14

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

15

NUT(6L2)

95333-08600-00

1

$3.20

In stock
