1982 Yamaha XT550 (XT550J) Handle Switch Lever Diagram

← All diagrams

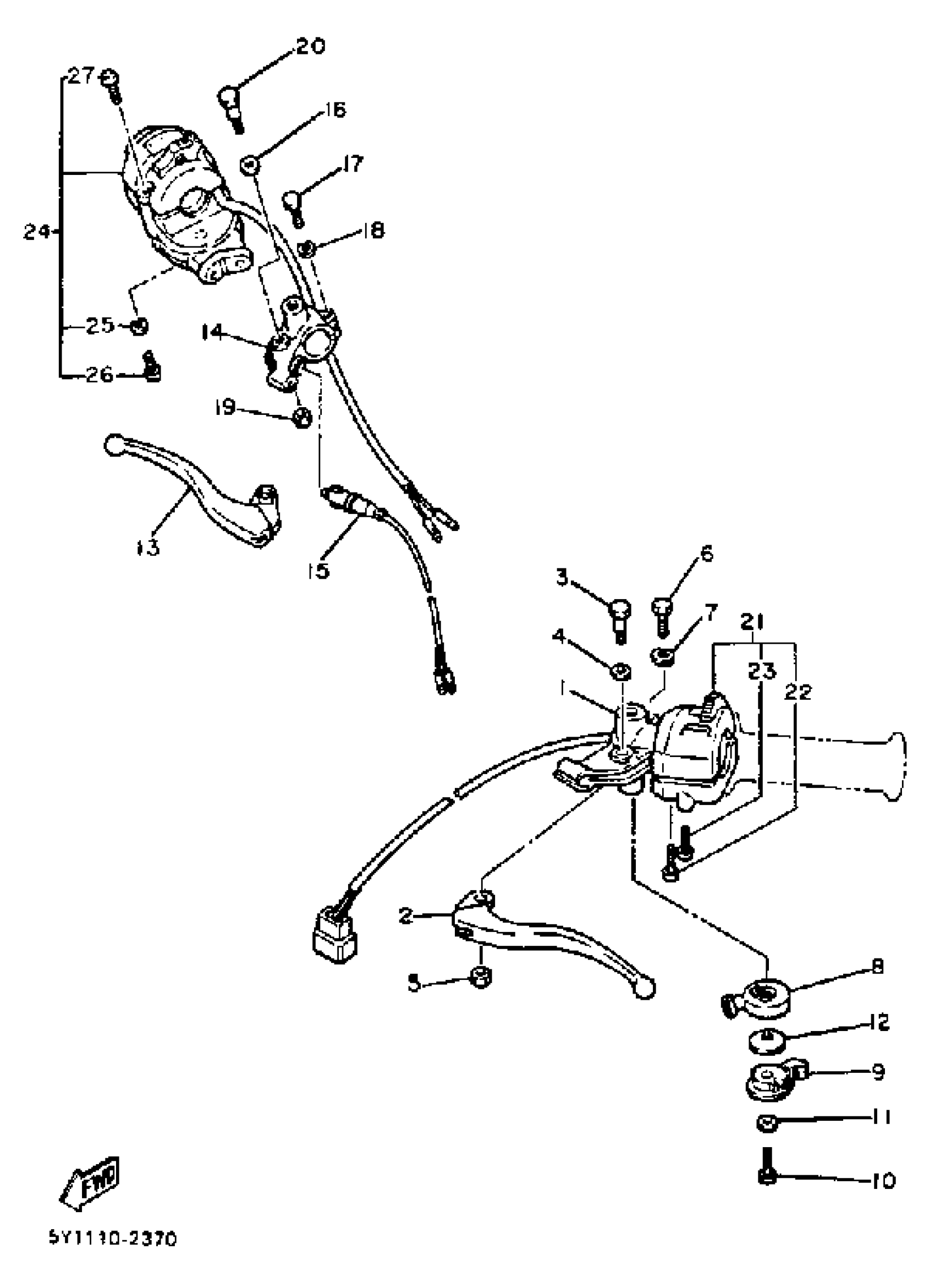

Find the part on the Handle Switch Lever diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER

5Y1-82911-01-00

—
Out of stock

2

LEVER 1

3FY-83912-02-00

1
Out of stock

3

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

4

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BOLT, HEXAGON

97007-06022-00

—
Out of stock

7

WASHER, SPRING

92907-06100-00

1
Out of stock

8

COVER, STARTER

5Y1-83942-00-00

—
Out of stock

9

LEVER, STARTER

5Y1-83941-00-00

—
Out of stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

12

WASHER (357)

90209-10131-00

1

$7.94

In stock

13

LEVER 2

5Y1-83922-11-00

—

$26.08

In stock

14

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

15

FRONT STOP SWITCH ASSY

3E1-83980-09-00

1

$32.68

In stock

16

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

17

BOLT, HEXAGON

97007-06022-00

—
Out of stock

18

WASHER, SPRING

92907-06100-00

1
Out of stock

19

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

20

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

21

SWITCH, HANDLE 3

5Y1-83973-00-00

1
Out of stock

22

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

23

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

24

SWITCH, HANDLE 1

5Y1-83976-00-00

1
Out of stock

25

WASHER, SPRING

92907-06100-00

1
Out of stock

26

SCREW, PAN

98517-06012-00

—

$3.14

In stock

27

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock
