1981 Yamaha XT500 (XT500H) Cylinder Head Diagram

← All diagrams

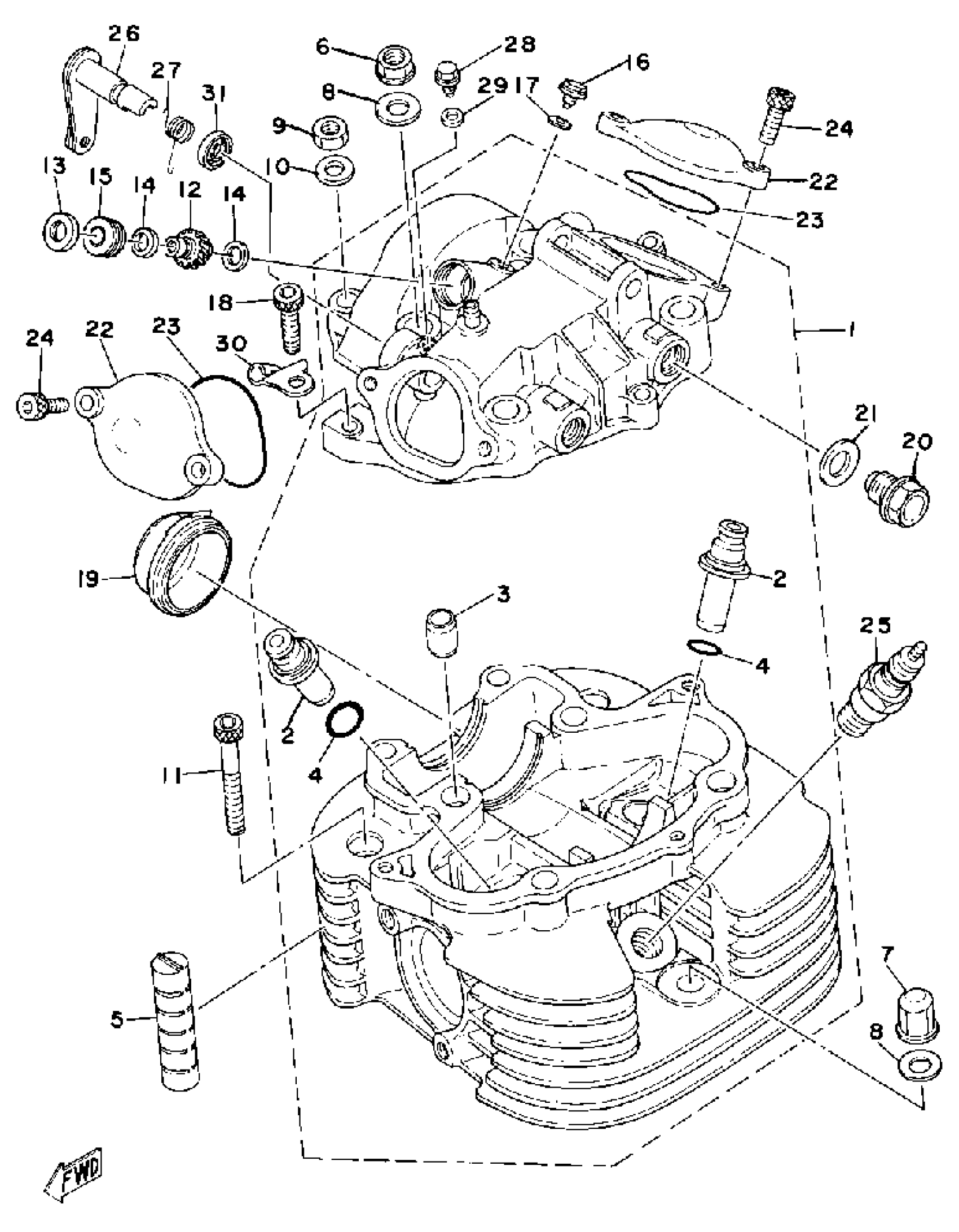

Find the part on the Cylinder Head diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT500 (XT500H) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CILINDER HEAD ASSEMBLY

(2Y0-11101-01-00)

1
Out of stock

2

GUIDE, INTAKE VALVE 1ST O/S

583-11133-11-00

1

$72.06

In stock

3

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

4

O-RING (583 VALVE GUIDE)

93210-14299-00

1

$4.91

In stock

5

ABSORBER

583-11127-00-00

1

$6.72

In stock

6

NUT (2Y5)

90179-10279-00

1

$6.09

In stock

7

NUT, CROWN(2GG)

90176-10075-00

1

$6.57

In stock

8

WASHER, PLATE 3711117500

90201-10124-00

1

$6.58

In stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

WASHER (1T1)

90201-08649-00

1
Out of stock

11

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

12

GEAR, DRIVEN

1E6-17841-00-00

—
Out of stock

13

OIL SEAL (30X)

93102-08307-00

1

$4.11

In stock

14

WASHER PLATE 141181390000

90201-08085-00

1

$6.38

In stock

15

BUSHING, TACHOMETER GEAR

1E6-17843-00-00

—
Out of stock

16

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

17

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

18

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

19

PLUG, VIEWER

2J2-11197-00-00

—
Out of stock

20

PLUG (583 ROCKER SHAFT)

90340-14038-00

—
Out of stock

21

GASKET 256131670000

90430-14043-00

—

$6.46

In stock

22

COVER, CYLINDER. HEAD 2

583-11186-00-00

1
Out of stock

23

O-RING (583 CYL. HEAD SIDE COV

93210-49296-00

—
Out of stock

24

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

25

BPR6ES NGK SPLUG 4PK

BPR-6ES00-00-00

1

$3.92

In stock

26

CAM, DECOMPRESSION

583-12288-01-00

—
Out of stock

27

SPRING, TORSION (583)

90508-16303-00

—
Out of stock

28

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

29

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

30

BRACKET, DECOMPRESSION

583-12283-00-00

—
Out of stock

31

OIL SEAL (1.2X17X2.5-583)

93104-12054-00

—
Out of stock
