1981 Yamaha XT500 (XT500H) Crankcase Cover Diagram

← All diagrams

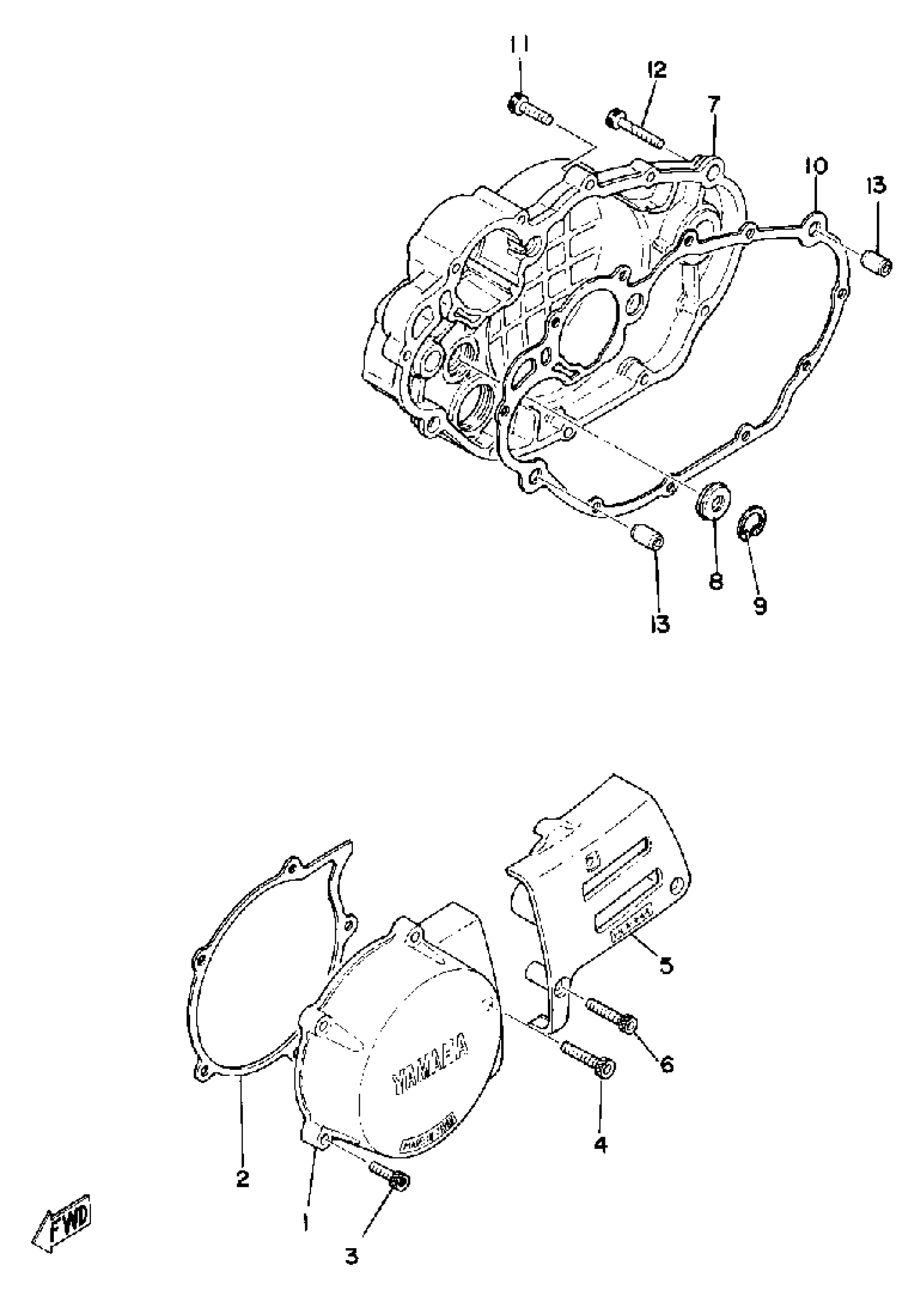

Find the part on the Crankcase Cover diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT500 (XT500H) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

583-15411-00-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

1

$21.80

In stock

3

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

4

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

5

COVER, CRANKCASE R

583-15421-00-00

1
Out of stock

6

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

7

COVER, CRANKCASE 3

(3H6-15431-00-98)

1
Out of stock

8

OIL SEAL (14X25X5.5-583)

93101-14089-00

1

$10.51

In stock

9

CIRCLIP

99009-25500-00

1

$5.62

In stock

10

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

1
Out of stock

11

1

$3.82

In stock

12

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

13

PIN, DOWEL

99530-12016-00

1

$4.12

In stock
← Crankcase Crankshaft Piston →
