1981 Yamaha XT500 (XT500H) Camshaft Chain Diagram

← All diagrams

Find the part on the Camshaft Chain diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

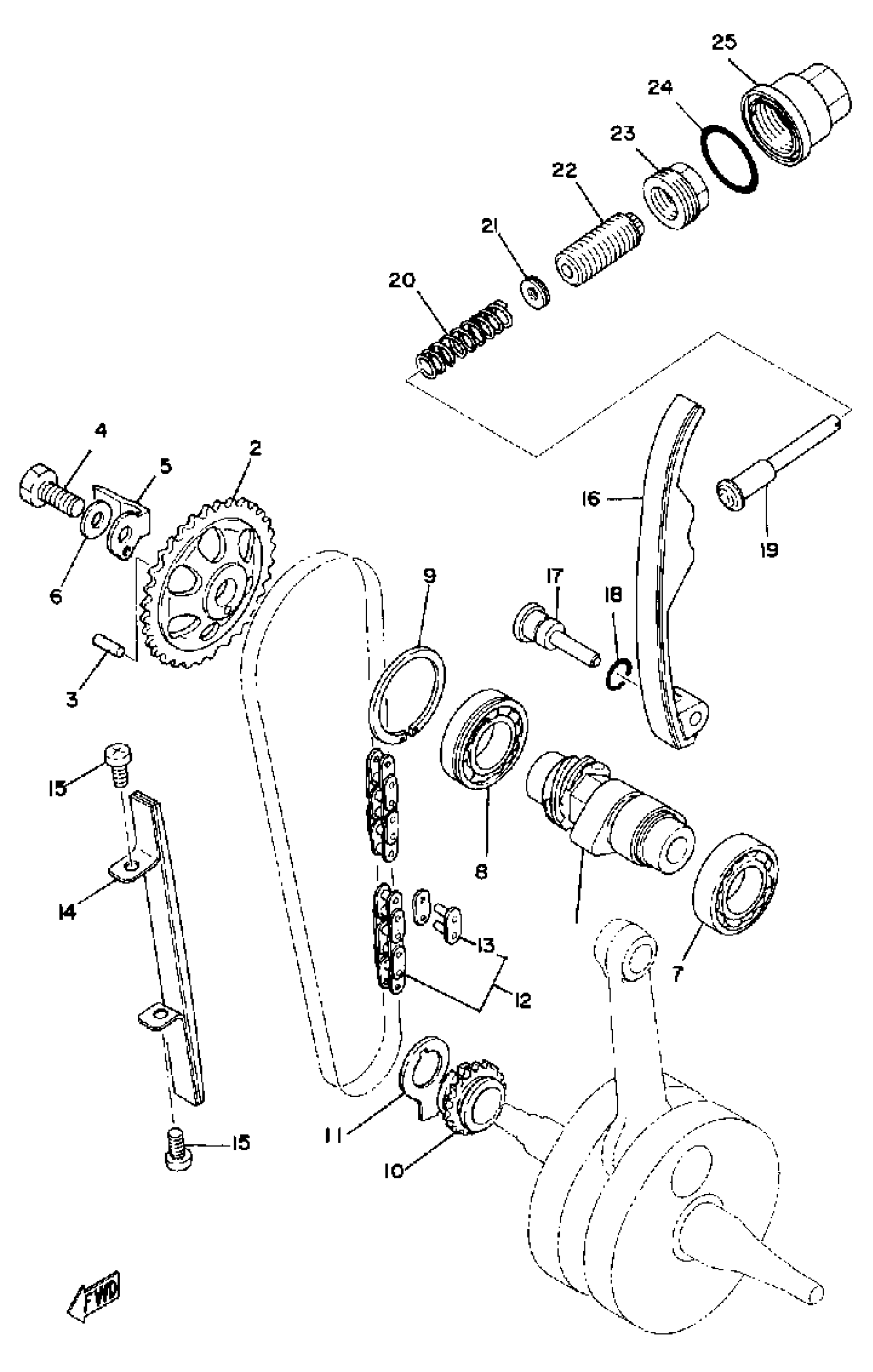

1981 Yamaha XT500 (XT500H) Camshaft Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT 1

583-12171-02-00

—
Out of stock

2

SPROCKET, CAM CHAIN DRIVEN

583-12176-00-00

1
Out of stock

3

PIN, DOWEL (409)

93604-16092-00

1
Out of stock

4

BOLT (583)

90101-10303-00

1
Out of stock

5

PLATE

1T1-12279-00-00

1
Out of stock

6

WASHER, PLATE (3L6)

90201-10774-00

1
Out of stock

7

BEARING(1FF)

93306-00519-00

1
Out of stock

8

BEARING(1FF)

93306-00519-00

1
Out of stock

9

CIRCLIP (583 CAM SHAFT)

93440-47044-00

1
Out of stock

10

SPROCKET, CAM CHAIN DRIVE

583-11549-00-00

—
Out of stock

11

PLATE, CAM CHAIN SPROCKET

583-11533-00-00

1
Out of stock

12

CHAIN, CAM SHAFT (583)

94500-02106-00

1
Out of stock

13

JOINT, CHAIN (583)

94600-02001-00

1
Out of stock

14

GUIDE, STOPPER 1

583-12231-01-00

1
Out of stock

15

SCREW, PAN

98507-06014-00

1
Out of stock

16

GUIDE, STOPPER 2

341-12241-04-00

—
Out of stock

17

SHAFT, CHAIN TENSIONER

583-12247-00-00

—
Out of stock

18

O-RING (256)

93210-12152-00

—
Out of stock

19

ROD, CHAIN TENSIONER

583-12217-00-00

—
Out of stock

20

SPRING COMPRESSION341122160200

90501-14095-00

—
Out of stock

21

DAMPER, CHAIN TENSIONER ROD

2H0-12232-00-00

—
Out of stock

22

SCREW (34F)

90149-18191-00

—
Out of stock

23

NUT (583 CHAIN TENSIONER)

90179-18199-00

—
Out of stock

24

O-RING (341)

93210-32172-00

—
Out of stock

25

CAP, CHAIN TENSIONER

583-12212-00-00

—
Out of stock
