1981 Yamaha XT500 (XT500H) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

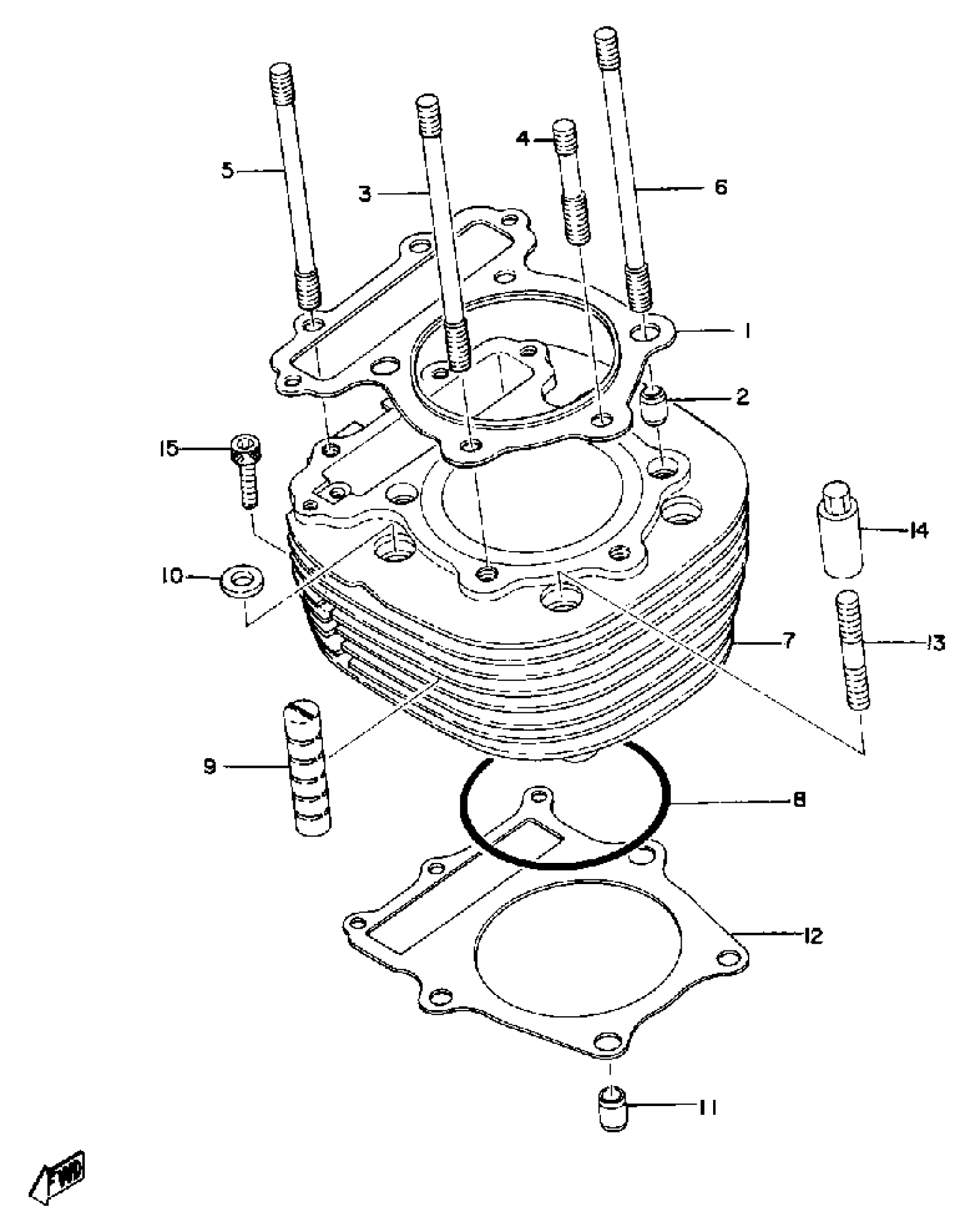

1981 Yamaha XT500 (XT500H) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, CYLINDER HEAD

2J2-11181-09-00

—

$98.99

In stock

2

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

3

BOLT, STUD (583 CYLINDER)

90116-10222-00

1
Out of stock

4

BOLT, STUD (583 CYLINDER)

90116-10223-00

1
Out of stock

5

BOLT, STUD (583 CYLINDER)

90116-08190-00

1
Out of stock

6

BOLT, STUD (583)

90116-10225-00

1
Out of stock

7

CYLINDER

583-11310-00-00

1
Out of stock

8

O-RING (583 CYLINDER)

93210-92295-00

1
Out of stock

9

ABSORBER

583-11127-00-00

1

$6.72

In stock

10

WASHER, PLATE (583)

90201-10590-00

1

$4.95

In stock

11

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

12

GASKET, CYLINDER

3HT-11351-00-00

1

$24.03

In stock

13

BOLT (363-11361-00)

90116-10087-00

1
Out of stock

14

NUT

90179-10021-00

1

$21.54

In stock

15

1

$3.82

In stock
