1981 Yamaha XT500 (XT500H) Crankshaft Piston Diagram

← All diagrams

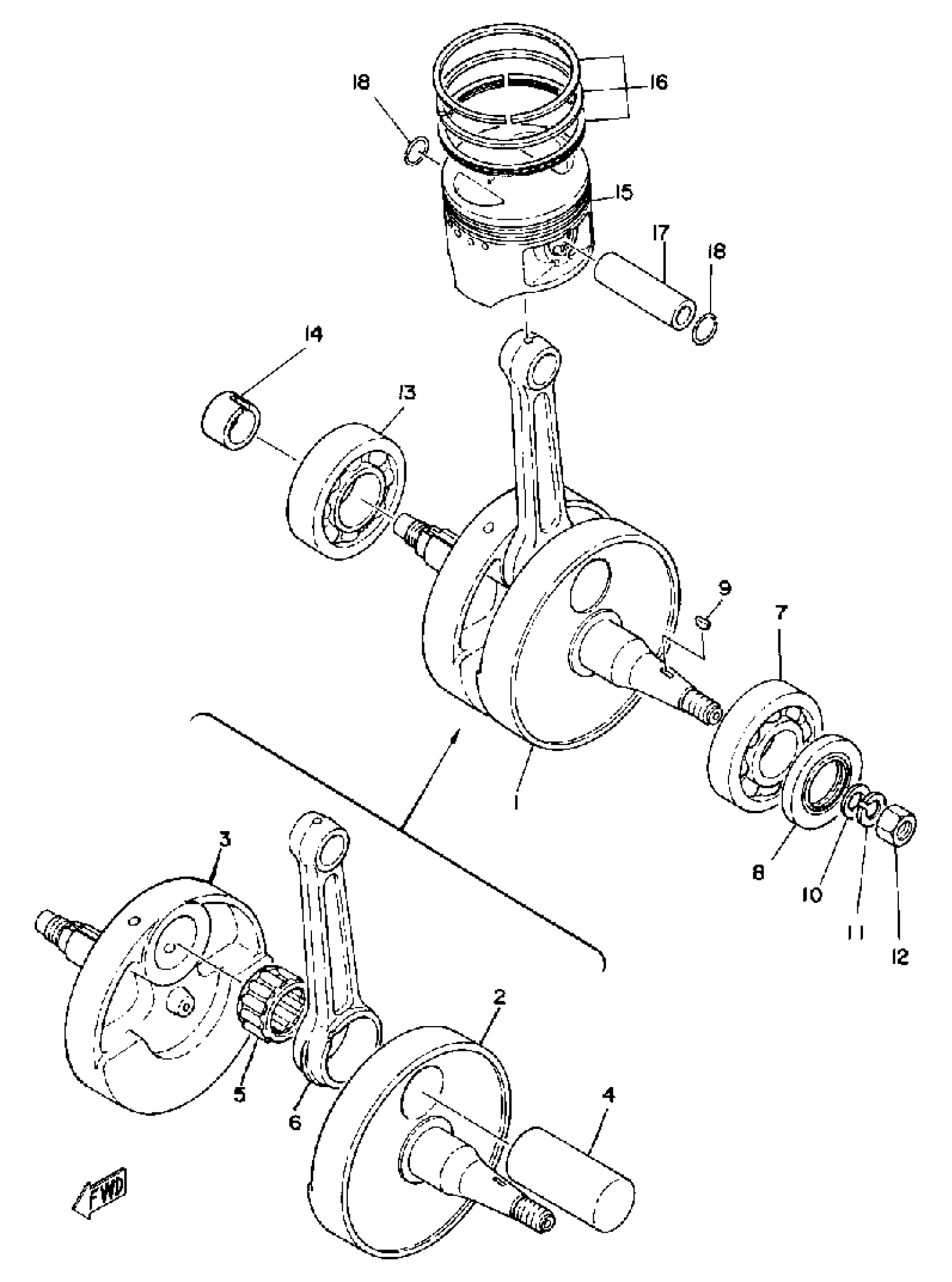

Find the part on the Crankshaft Piston diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT500 (XT500H) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(583-11400-00-00)

1
Out of stock

2

CRANK 1

(583-11412-00-00)

1
Out of stock

3

CRANK 2

(583-11422-00-00)

1
Out of stock

4

PIN, CRANK 1

583-11681-01-00

1
Out of stock

5

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

1
Out of stock

6

ROD, CONNECTING

583-11651-00-00

—

$106.66

In stock

7

BEARING(3KW)

93306-30630-00

1

$64.14

In stock

8

OIL SEAL (30X60X6-583)

93102-30145-00

1
Out of stock

9

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

10

WASHER, PLATE (583)

90201-12593-00

1

$6.82

In stock

11

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

12

NUT(55K)

90170-12347-00

1

$8.43

In stock

13

BEARING (3GV)

93306-30702-00

1

$69.32

In stock

14

COLLAR (2J2)

90387-20644-00

—
Out of stock

15

PISTON (STD) 0.95

583-11631-02-95

1

$88.09

In stock

15

PISTON (1ST O/S)

583-11635-02-00

—

$94.35

In stock

15

PISTON (2ND O/S)

583-11636-02-00

—
Out of stock

15

PISTON 3 O/S 0.75

583-11637-02-00

1
Out of stock

15

PISTON 4 O/S 1.00

583-11638-02-00

1
Out of stock

16

PISTON RING SET

583-11610-02-00

—
Out of stock

16

PISTON RING SET (1ST O/S)

583-11610-12-00

—

$41.48

In stock

16

PISTON RING SET (2ND O/S)

583-11610-22-00

—

$67.55

In stock

16

PISTON RINGSET 3RD (583-11610-31)

583-11610-32-00

1
Out of stock

16

PISTON RINGSET 4TH (4TH O/S)

583-11610-42-00

1
Out of stock

17

PIN, PISTON

583-11633-00-00

—

$15.86

In stock

18

CIRCLIP 341116340000

93450-22027-00

—

$6.00

In stock
