1993 Yamaha XT350 CA (XT350EC) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

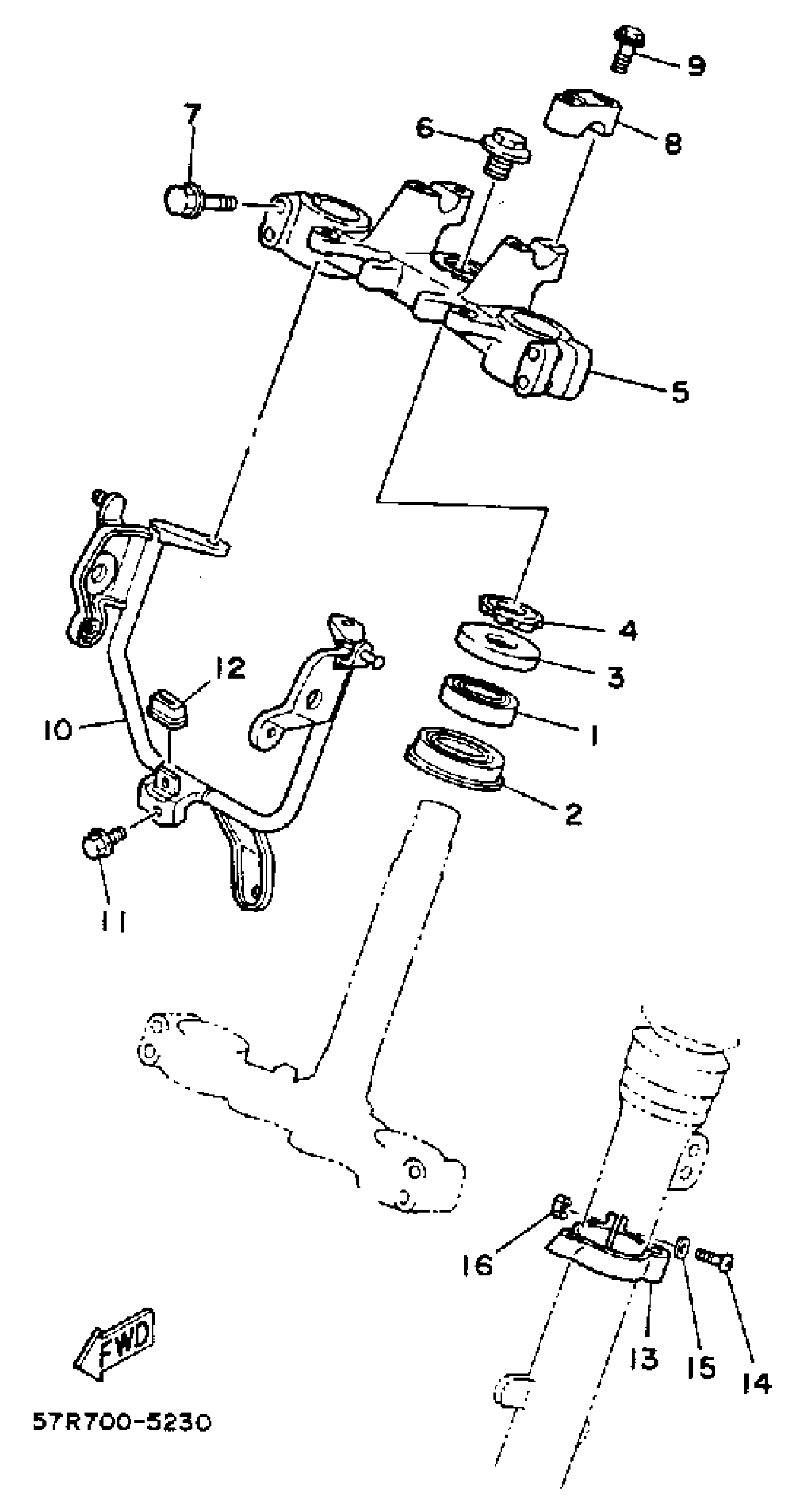

1993 Yamaha XT350 CA (XT350EC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

1

$60.13

In stock

3

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

CROWN, HANDLE

30X-23435-00-98

1
Out of stock

6

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

7

BOLT, FLANGE(4MY)

95027-08040-00

1
Out of stock

8

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

9

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

10

STAY, HEADLIGHT

30X-23174-00-00

1
Out of stock

11

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

12

DAMPER

30X-23445-00-00

1

$8.77

In stock

13

HOLDER, CABLE

34X-23317-00-00

1

$6.52

In stock

14

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

15

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
