1993 Yamaha XT350 CA (XT350EC) Front Wheel Diagram

← All diagrams

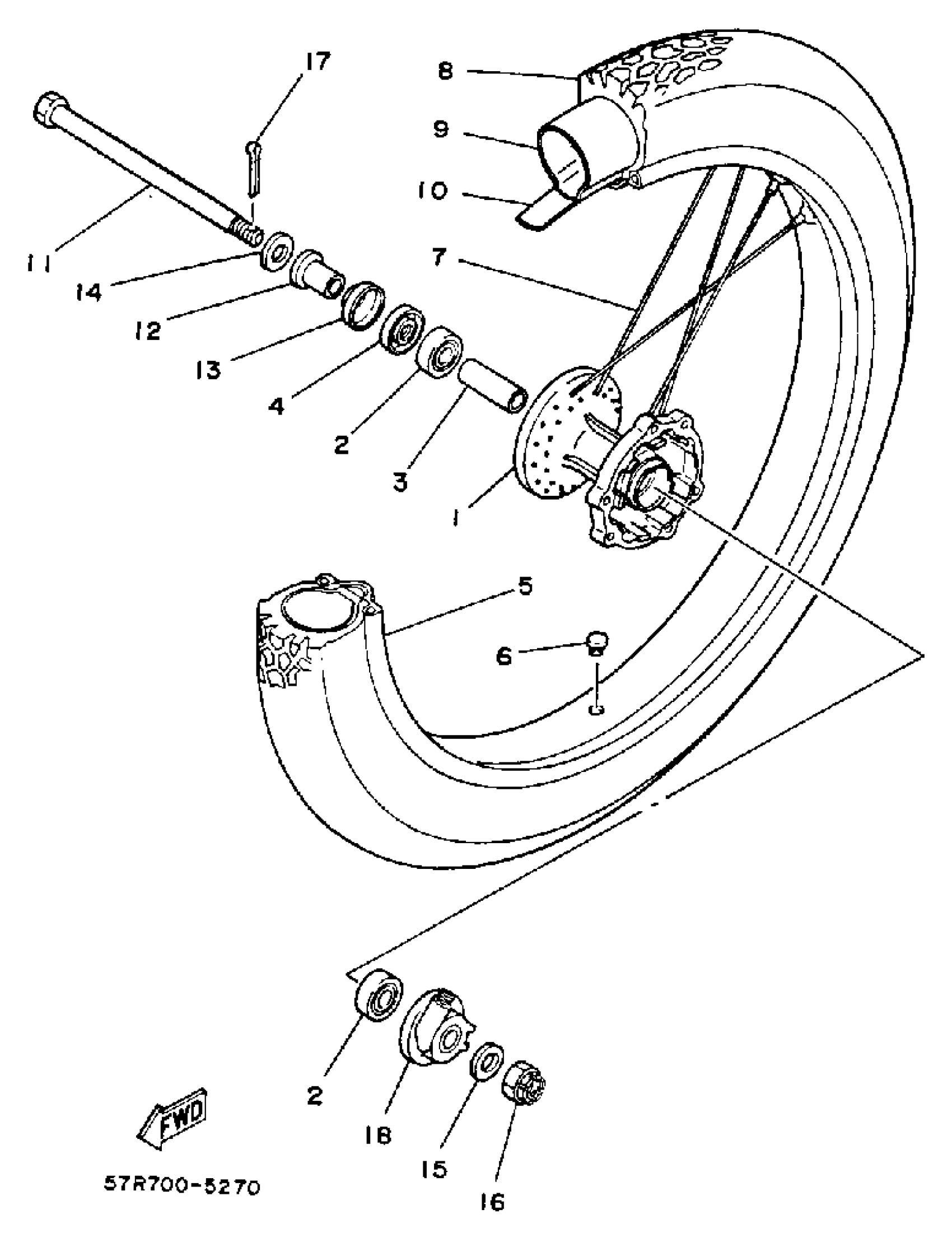

Find the part on the Front Wheel diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

34X-25111-02-98

—
Out of stock

2

BEARING

93306-20205-00

1

$32.63

In stock

3

SPACER(1ET)

90560-15290-00

1

$17.32

In stock

4

OIL SEAL (23X)

93102-20281-00

1

$11.35

In stock

5

RIM (1.60-21)

94416-21430-00

1
Out of stock

6

GROMMET (397)

90480-10068-00

1

$6.77

In stock

7

SPOKE SET, FRONT

48Y-25104-00-00

1
Out of stock

8

TIRE (3.00-21-4PR 51P TW25)

94130-213G0-00

1
Out of stock

9

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

10

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

11

AXLE, WHEEL

30X-25181-00-00

1
Out of stock

12

COLLAR (1W1)

90387-15600-00

1

$15.34

In stock

13

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

14

WASHER, PLATE(33Y)

90201-164H4-00

1

$8.02

In stock

15

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock

16

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

17

PIN, COTTER

91490-30030-00

—

$7.15

In stock

18

GEAR UNIT ASSY

34X-25190-01-00

—
Out of stock
← Front Fork Handlebar-Cable →
