1993 Yamaha XT350 CA (XT350EC) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

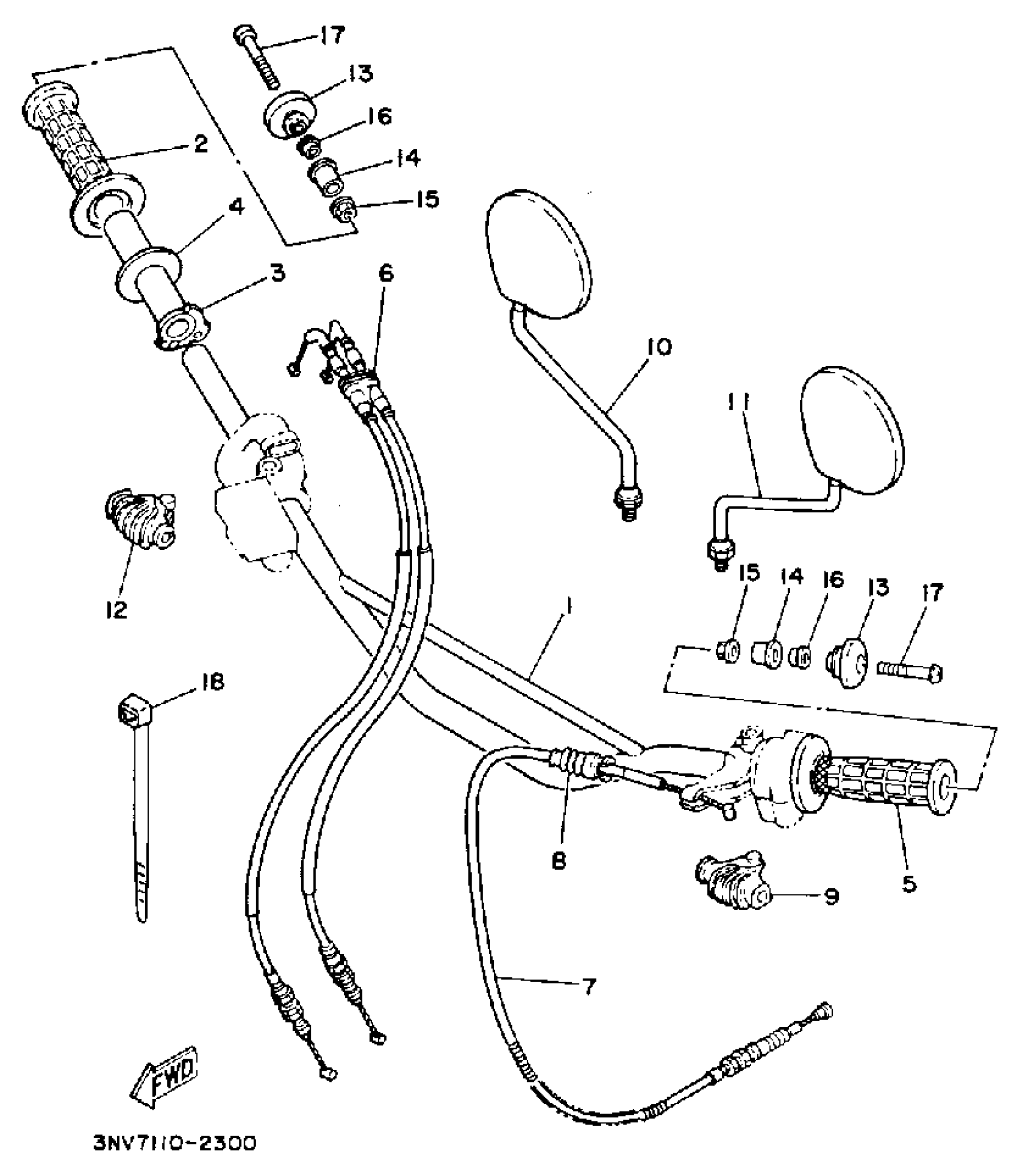

1993 Yamaha XT350 CA (XT350EC) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1EU-26111-00-00

1
Out of stock

2

GRIP (RIGHT)

55V-26242-00-00

1
Out of stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP (LH)

55V-26241-01-00

—
Out of stock

6

THROTTLE CABLE ASSY

30X-26302-01-00

1
Out of stock

7

CABLE, CLUTCH

30X-26335-01-00

1
Out of stock

8

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

9

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

10

1

$45.60

In stock

11

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

12

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1

$17.86

In stock

13

END, GRIP

55V-26246-00-00

1
Out of stock

14

DAMPER, LOCATING 1 (55V-2622F-00-00)

21A-2622F-00-00

1
Out of stock

15

NUT(1ET)

90179-06498-00

1
Out of stock

16

COLLAR (8G8)

90387-06681-00

—

$6.62

In stock

17

SCREW, PAN

98507-06040-00

—

$2.25

In stock

18

BAND

1UA-82591-00-00

—
Out of stock
