1993 Yamaha XT350 CA (XT350EC) Rear Shocks Diagram

← All diagrams

Find the part on the Rear Shocks diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

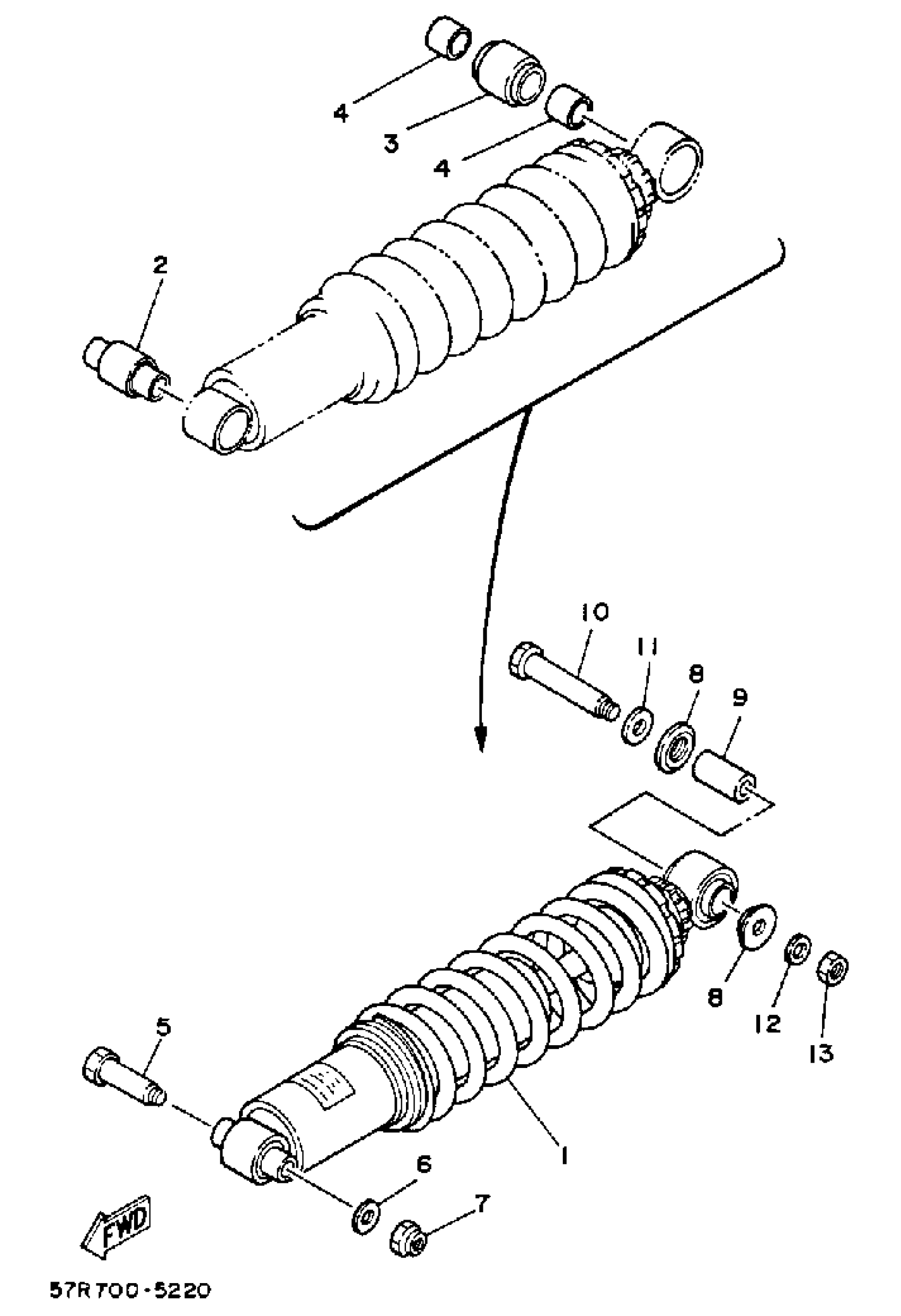

1993 Yamaha XT350 CA (XT350EC) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASY, REAR

3YT-22210-30-P0

1
Out of stock

2

. BUSH, REAR SHOCK ABSORBER

30X-22216-00-00

1
Out of stock

3

. BUSH, SHOCK ABSORBER LOWER

30X-22226-00-00

1
Out of stock

4

1

$11.75

In stock

5

BOLT

90109-10753-00

1
Out of stock

6

WASHER, PLATE(6TC)

90201-10M05-00

1
Out of stock

7

NUT, SELF LOCKING (23X)

90185-10120-00

1
Out of stock

8

COVER, THRUST 2

30X-22129-00-00

1

$18.21

In stock

9

COLLAR

90387-121J0-00

1
Out of stock

10

BOLT

90109-10753-00

1
Out of stock

11

WASHER, PLATE

90201-12027-00

1

$6.23

In stock

12

WASHER, PLATE(6TC)

90201-10M05-00

1
Out of stock

13

NUT, SELF LOCKING (23X)

90185-10120-00

1
Out of stock
