1993 Yamaha XT350 CA (XT350EC) Rear Wheel Diagram

← All diagrams

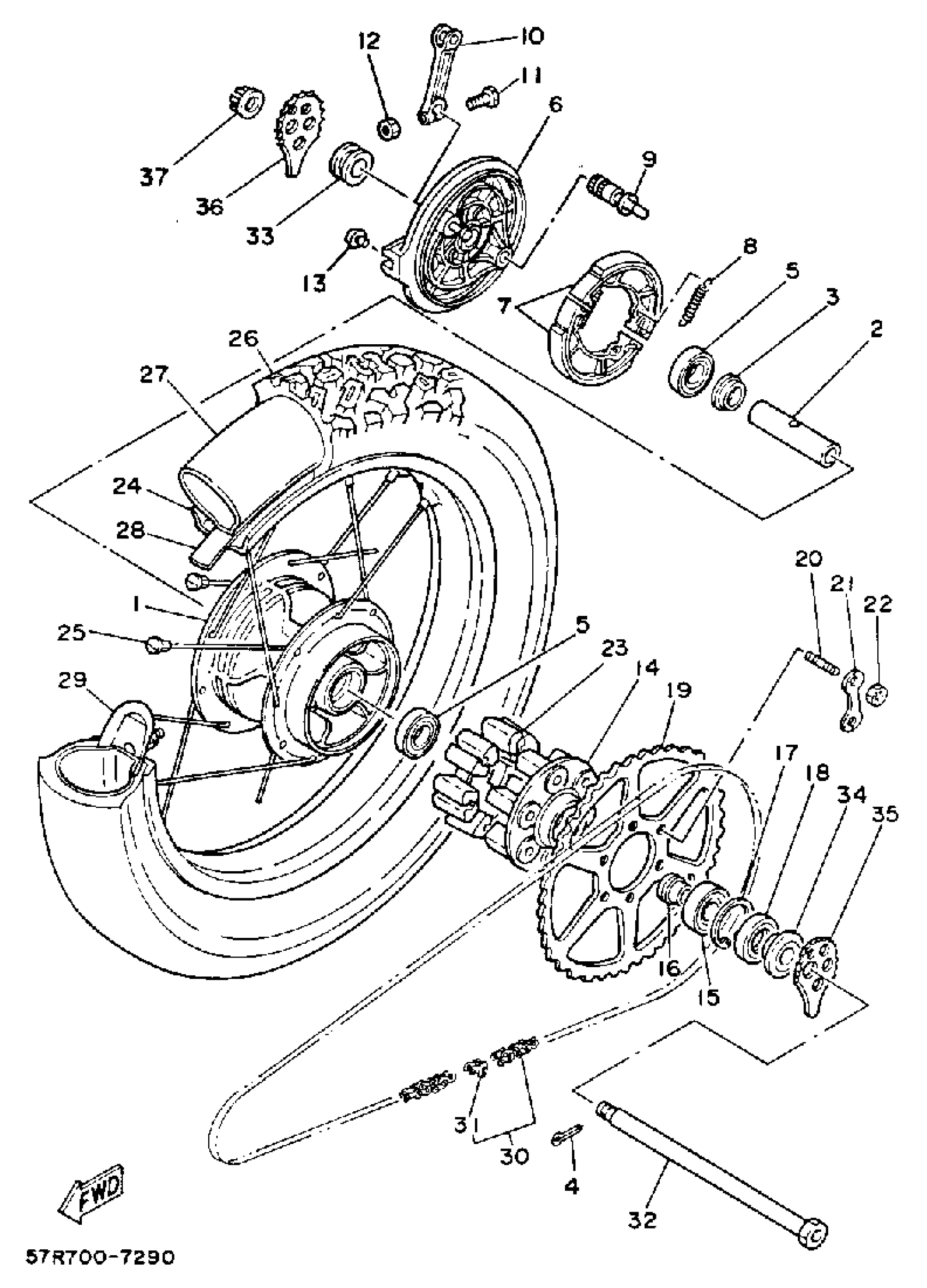

Find the part on the Rear Wheel diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

3Y1-25311-00-98

1
Out of stock

2

SPACER

90560-17311-00

—
Out of stock

3

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

4

PIN, COTTER

91490-30030-00

1

$7.15

In stock

5

1

$31.64

In stock

6

BRAKE SHOE PLATE ASSEMBLY

3Y1-25026-00-98

1
Out of stock

7

BRAKE SHOE KIT

3LS-W253E-00-00

1
Out of stock

8

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

9

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

10

LEVER, CAMSHAFT

3R6-25355-01-00

1
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

GROMMET (397)

90480-10068-00

1

$6.77

In stock

14

CLUTCH, HUB

3Y1-25366-00-98

1
Out of stock

15

BEARING (22K)

93306-20446-00

1
Out of stock

16

COLLAR, WHEEL

3Y1-25377-00-00

1
Out of stock

17

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

18

OIL SEAL (28X47X7-102)

93102-28022-00

—

$12.63

In stock

19

SPROCKET, DRIVEN (55T)

55V-25455-50-00

1
Out of stock

20

BOLT, STUD (36X)

90116-08425-00

—
Out of stock

21

WASHER, LOCK (3Y2)

90215-08160-00

—

$8.31

In stock

22

NUT (3Y2)

90170-08258-00

—
Out of stock

23

DAMPER

3Y1-25364-00-00

—
Out of stock

24

RIM (2.15-18)

94421-18418-00

1
Out of stock

25

SPOKE SET, REAR

4Y0-25304-00-00

—
Out of stock

26

TIRE (110/80-18-58P)

94111-182G9-00

1
Out of stock

27

TUBE (5A8)

94212-18188-00

—

$32.23

In stock

28

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

29

SPACER, BEAD

3Y1-25394-00-00

—

$27.98

In stock

30

CHAIN (D.I.D.428VS-130L)

94580-78130-00

1
Out of stock

31

JOINT, CHAIN (DID428V2-FJ,1KH)

94681-33011-00

—
Out of stock

32

AXLE, WHEEL

4KM-25181-10-00

—
Out of stock

33

COLLAR(3SX)

90387-170X9-00

—
Out of stock

34

COLLAR, WHEEL

3Y1-25383-00-00

—
Out of stock

35

PULLER, CHAIN 1

3Y1-25388-01-00

—

$22.83

In stock

36

PULLER, CHAIN 2

3Y1-25389-00-00

—

$24.14

In stock

37

NUT, CASTLE (2H6)

90171-16024-00

—

$21.74

In stock
