1993 Yamaha XT350 CA (XT350EC) Front Fork Diagram

← All diagrams

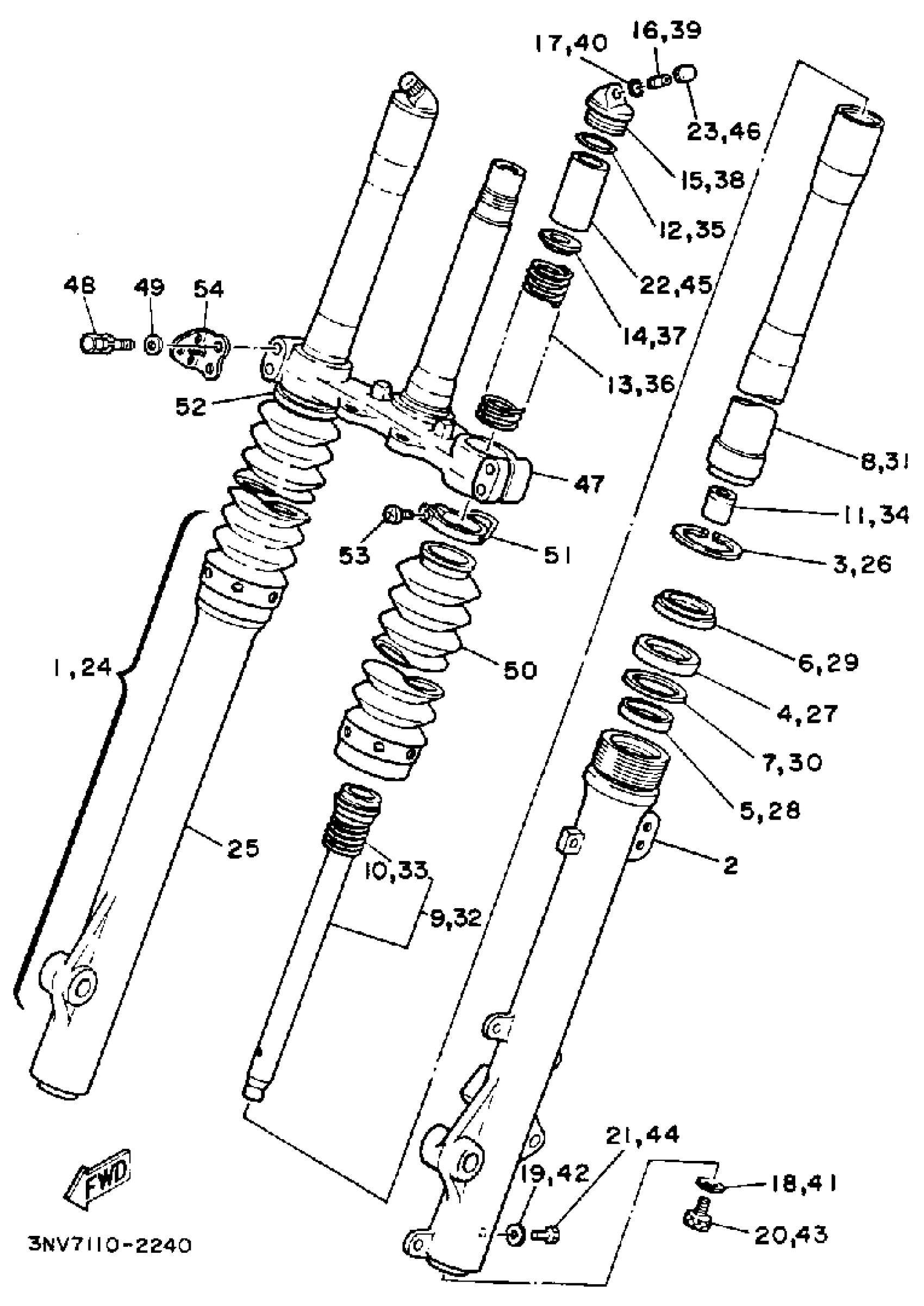

Find the part on the Front Fork diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

55V-23102-00-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

48Y-23126-00-00

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

6

SEAL, DUST

48Y-23144-00-00

1
Out of stock

7

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

8

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

9

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

1
Out of stock

10

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

11

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

12

O-RING

1W1-23114-L0-00

1
Out of stock

13

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

14

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

15

. BOLT, CAP

33M-23111-00-00

1
Out of stock

16

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

17

O-RING

3J2-23147-00-00

—
Out of stock

18

GASKET

509-23158-L0-00

—

$14.34

In stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

21

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

22

SPACER

4V5-23118-L1-00

1
Out of stock

23

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

24

FRONT FORK ASSEMBLY (RH)

55V-23103-00-00

1
Out of stock

25

. TUBE, OUTER (RIGHT)

48Y-23136-00-00

1
Out of stock

26

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

27

OIL SEAL

48Y-23145-00-00

1
Out of stock

28

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

29

SEAL, DUST

48Y-23144-00-00

1
Out of stock

30

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

31

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

32

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

1
Out of stock

33

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

34

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

35

O-RING

1W1-23114-L0-00

1
Out of stock

36

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

37

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

38

. BOLT, CAP

33M-23111-00-00

1
Out of stock

39

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

40

O-RING

3J2-23147-00-00

—
Out of stock

41

GASKET

509-23158-L0-00

—

$14.34

In stock

42

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

43

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

44

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

45

SPACER

4V5-23118-L1-00

1
Out of stock

46

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

47

UNDER BRACKET COMP.

55V-23340-00-00

1
Out of stock

48

BOLT, AXLE HOLDER

5X6-23128-L0-00

1
Out of stock

49

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

50

BOOT

55V-23191-60-00

1
Out of stock

51

. BAND

48Y-23192-00-00

1
Out of stock

52

BAND, BOOT

341-92090-60-00

—
Out of stock

53

SCREW, BOOT BAND

1W4-23194-L0-00

—

$6.43

In stock

54

BRACKET, REFLECTOR 1

49R-85112-00-00

—

$19.26

In stock
