1981 Yamaha XT250H_1981 Taillight Diagram

← All diagrams

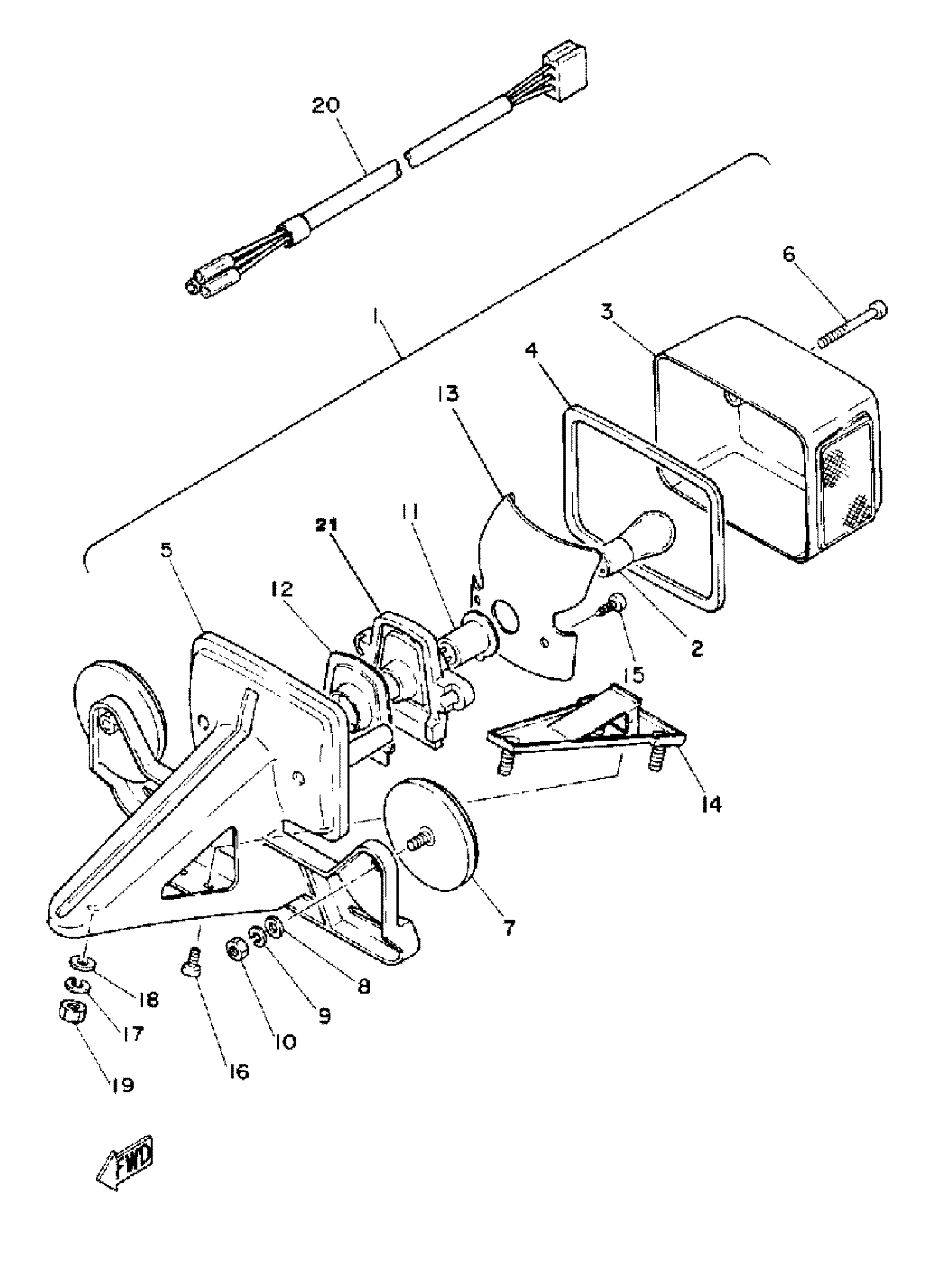

Find the part on the Taillight diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

3Y1-84500-60-00

1
Out of stock

2

. BULB

1M1-84514-60-00

1
Out of stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

SEAL

1VJ-14462-00-00

1

$16.08

In stock

5

. BRACKET, LICENSE

3Y1-84551-60-00

1
Out of stock

6

SCREW, LENS FITTING

3Y1-84524-00-00

1
Out of stock

7

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

8

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

. SOCKET CORD ASSEMBLY

3Y1-84536-00-00

1
Out of stock

12

. WASHER, SPECIAL

3Y1-84544-00-00

1
Out of stock

13

REFLECTER, TAIL LIGHT

3Y1-84531-00-00

—

$10.54

In stock

14

. BOLT, FITTING

3Y1-84552-00-00

1
Out of stock

15

SCREW, BIND

98980-04008-00

1

$3.26

In stock

16

SCREW, TAPPING

97780-40116-00

1

$3.79

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLATE

90201-06049-00

1

$3.36

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

CORD, TAILLIGHT

3Y1-84717-00-00

1
Out of stock
