1981 Yamaha XT250H_1981 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

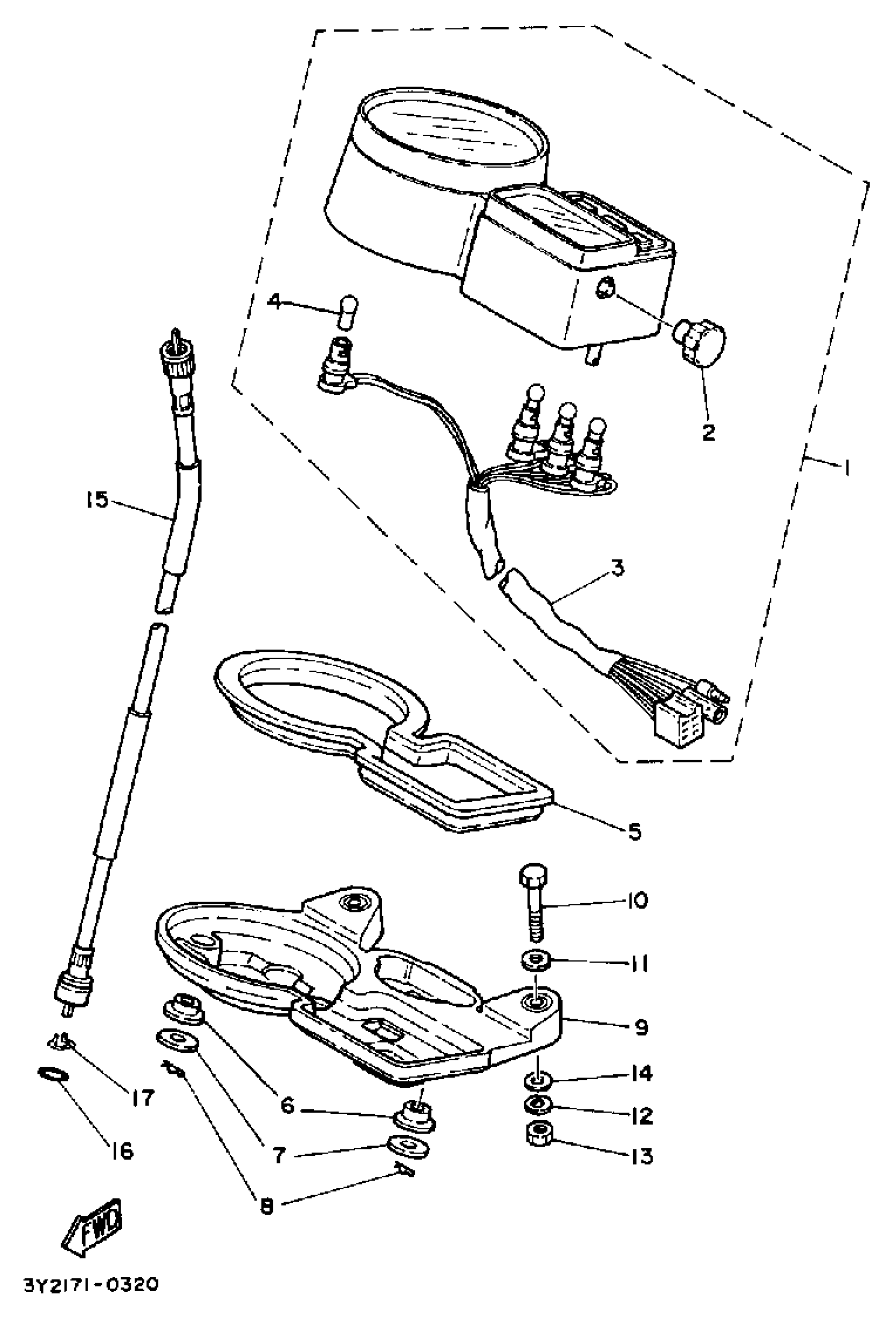

1981 Yamaha XT250H_1981 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(3Y1-83570-A0-00

1
Out of stock

2

. KNOB, TRIP METER

3Y1-83578-00-00

1
Out of stock

3

. SOCKET CORD ASSEMBLY

3Y1-83509-00-00

1
Out of stock

4

BULB,(6V3W)

122-83516-10-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK

(3Y1-83513-00-00

1
Out of stock

6

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

7

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

8

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

9

BRACKET, METER

3Y1-83519-00-00

1
Out of stock

10

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

SPEED0METER CABLE ASSY

3Y1-83550-01-00

1

$40.54

In stock

16

O-RING (26H)

93210-14579-00

—

$5.69

In stock

17

RING, STOP

102-25137-00-00

—
Out of stock
